Circuit Breaker Analyzer & Timer DV Power CAT03
SKU: CAT0300-EU-R1

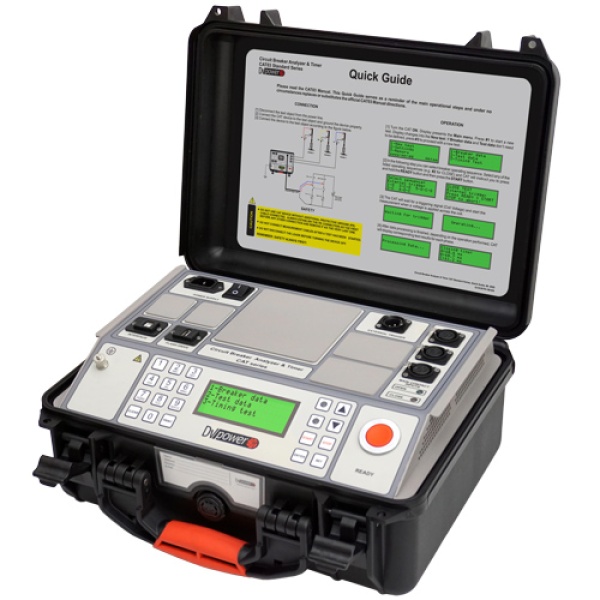

The Circuit Breaker Analyzer and Timer CAT03 is a DV Power portable circuit breaker analyzer with 3 timing channels used for condition assessment.
- 3 Timing channels for main and pre-insertion contacts
- External Trigger capability
Free shipping over 200 EUR
Estimated shipping time 4-5 weeks
Estimated shipping time 4-5 weeks
The Circuit Breaker Analyzer CAT03 is a DV Power device with 3 timing channels used for the condition assessment of circuit breakers. It performs the timing measurement while having the External trigger cable set connected accross the referenced coils.
- Easy to operate circuit breaker test equipment
- 3 Timing channels for main and pre-insertion contacts
- External Trigger capability
Intended use of Circuit Breaker Analyzer
The circuit breaker analyzer, DV Power CAT03, is designed to measure the main contact timing of LV and HV circuit breaker types with 1 interrupting chamber per phase. The obtained measurement are displayed in numerical form, and the graphical interpretation of the obtained results is available while using the intuitive DV-Win PC software.The list of instrument applications includes:
- Measuring the timing of the main contacts (1 break per phase) including pre-insertion resistors (if present).
- Measuring the resistance of the pre-insertion resistors (if present).
- Evaluating the synchronization between the circuit breaker chambers.
- External trigger is used to start the timing of the breaker when sensing a voltage that actuates the coils.
How to use Circuit Breaker Analyzer and Timer CAT03?
Both Low-voltage and High-voltage circuit breakers with 1 interrupting chamber per phase can be tested with the CAT03 circuit breaker anlyzer. In case the pre-insertion resistors are detected, the tester will measure the ON Time and display the results.The obtained timing measurements are saved in a test result that can be further analyzed by the DV-Win PC software. The DV-Win PC software also enables simplified report generation of the obtained parameters.
Connecting CAT03 to a Circuit Breaker
The CAT03 device is provided with test leads for measuring the timing of the main contacts and pre-insertion resistors, enabling the function to detect the state of the circuit breaker (Open / Close).The External Trigger cable set is connected accross the referenced coils, and the device, while using the external trigger set senses the voltage that actuates the coils to initiate the timing measurement.
Models within the same CAT Standard series
| Product information | |
|---|---|
| Product name | Circuit Breaker Analyzer & Timer DV Power CAT03 |
| Brand | DV Power |
| Main contact inputs | |
| Number of contact inputs | 3 (3x 1), 1 per phase |
| Each channel detects main contacts | Closed ≤ 10 Ω Resistor contacts range 10 Ω to 5 kΩ Open ≥ 5 kΩ |
| Open circuit voltage | 20 V DC |
| Short circuit voltage | 50 mA |
| Time measurement | |
| Time measurement resolution | 0,1 ms to 10 ms depending on test duration (sampling rate up to 10 kHz) |
| Time accuracy | 0,05% of the reading ± resolution |
| External trigger | Yes, 2 channels (Trigger input voltage 10 V - 300 V AC/DC) |
| Breaker operation | |
| Sequences | Close (C) Open (O) Close-Open (C-O) Open-Close (O-C) Open-Close-Open (O-C-O) |
| Internal memory | |
| Internal memory | Up to 500 test results (including numerical and graphical data) |
| Power supply | |
| Input | 90 V - 264 V AC 50/60 Hz Input power 250 VA |
| Display | |
| Size | 20 characters by 4 Lines |
| Type | LCD with backlight |
| Applicable standards | |
| Safety | Installation / Overvoltage - Category II Pollution - Degree 2 LVD 2014/35/EU (CE Conform) Standard EN 61010-1 |
| Electromagnetic Compatibility | Directive 2014/30/EU (CE conform) Applicable standard - EN 61326-1 CAN/CSA-C22.2 No. 61010-1 |
| Environmental conditions | |
| Operating temperature | - 20 ºC to + 55 ºC / - 4 ºF to + 131 ºF |
| Storage & Transportation | - 40 ºC to + 70ºC / - 40 ºF to + 158 ºF |
| Humidity | 0% - 95% relative humidity, non-condensing |
| PC Interface | |
| PC Interface | Yes, USB |
| Warranty | |
| Warranty | 3 years |
| Dimensions and Weight | |
| Dimensions (W x H x D) | 170 x 405 x 335 mm (6,7 x 16,0 x 13,2 in) |
| Weight | 6.2 kg (13,7 lbs) |
- Cable bag
- Ground (PE) cable
- USB cable
- CAT03 device
- External trigger cable 5 m with banana plugs
- Main contact cables 5 m with SCT clamps
- Mains power cable EU 10 A
- Plastic transport case – small size
- USB with DV-Win software
The DV-Win software provides the acquisition and analysis of the test result, as well as the complete control of the CAT Standard series functions from a PC. These test results can be overlayed and compared graphically and numerically.
- The test results can be viewed, edited, saved, printed and exported
- Selecting the measurement points and intervals using the two cursors
- Downloading the test results from the instrument
- Zoom and pan graph feature
- Ability to generate a report including all asset-related information and performed tests. This provides you with a comprehensive overview of the test object, test results and assessments.
