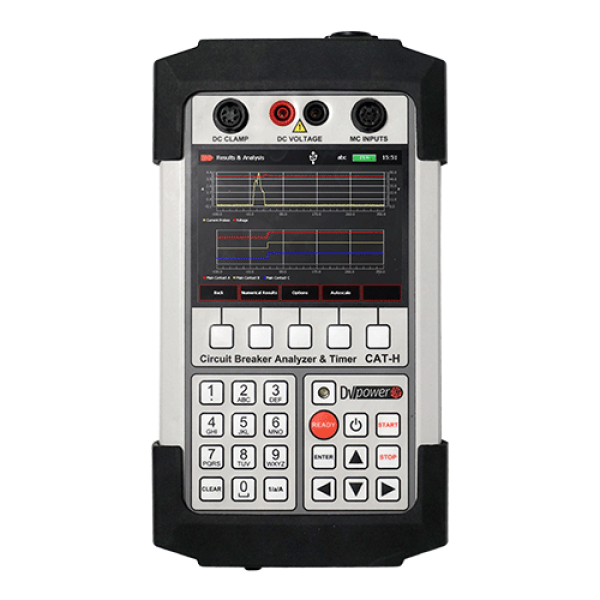

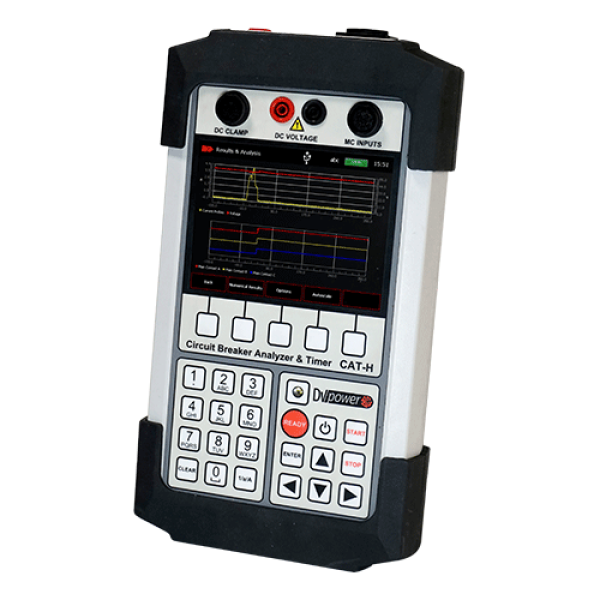

Handheld Circuit Breaker Analyzer & Timer DV Power CAT-H
SKU: CAT-H000-EU-R1
The CAT-H is a DV Power battery-operated handheld tester with 3 timing channels used for circuit breaker condition assessment.
- 3 Timing channels for main and pre-insertion contacts
- Graphical results overview via 5.7 touchscreen color display
- A battery-operated device with up to 8 hours of battery operation
Free shipping over 200 EUR
Estimated shipping time 4-5 weeks
Estimated shipping time 4-5 weeks
The CAT-H is a DV Power handheld tester with 3 timing channels used for circuit breaker condition assessment. It measures and displays graphical results for main contact timing, open and close coil currents, and analog signals such as DC substation battery voltage.
- 3 Timing channels for main and pre-insertion contacts
- Graphical results overview via 5.7 touchscreen color display)
- Handheld Circuit Breaker Tester (weighs only 1,6 kg)
- A battery-operated device with up to 8 hours of battery operation
Intended use
The circuit breaker tester, DV Power CAT-H, is designed to measure the main contact timing of LV and HV circuit breakers with 1 interrupting chamber per phase. The obtained results are displayed in both numerical and graphical forms for easier onsite results analysis.The list of instrument applications includes:- Measuring the timing of the main contacts (1 break per phase) including pre-insertion resistors (if present) and auxiliary contacts.
- Measuring the resistance of the pre-insertion resistors (if present).
- Evaluating the synchronization between the circuit breaker chambers.
- Coil Control for actuation of circuit breaker’s OPEN and CLOSE coil.
- Pre-trigger time measurement
- Evaluating the state of the substation’s battery.
How to Use CAT-H?
Both Low-voltage and High-voltage circuit breakers with 1 interrupting chamber per phase can be tested with the CAT-H Handheld tester. In case the pre-insertion resistors are detected, the tester will measure the ON Time and display the results.All obtained circuit breaker information including coil circuit data will be saved in a single test result file.Connecting CAT-H to a Circuit Breaker
The CAT-H tester is provided with test leads for measuring the timing of the main contacts and pre-insertion resistors, enabling the function to detect the state of the circuit breaker (Open / Close).Used Coil Control cable actuates the coils and simultaneously measures the current waveform of the corresponding coil with minimum noises from the environment. The Coil Control cable and Voltage Sense cable set can be easily connected to the coil circuit using the provided Dolphin Clips, Test probes, or Jumper cables.Similar models
For online testing of Circuit Breakers, the handheld DV Power CAT-P instrument could be taken into consideration, while having the capability to execute both Offline and Online Timing test.| Product information | |
|---|---|
| Product name | Handheld Circuit Breaker Analyzer & Timer DV Power CAT-H |
| Brand | DV Power |
| Main contact inputs | |
| Number of contact inputs | 3 (3x 1), 1 per phase |
| Each channel detects main contacts | Closed ≤ 10 Ω Resistor contacts range 10 Ω to 5 kΩ Open ≥ 5 kΩ |
| Open circuit voltage | 20 V DC |
| Short circuit voltage | 50 mA |
| Time measurement | |
| Time measurement resolution | 0,05 ms to 10 ms depending on test duration (sampling rate up to 20 kHz) |
| Time accuracy | 0,05% of the reading ± resolution |
| External trigger | Yes, 2 channels |
| Breaker operation | |
| Sequences | Close (C) Open (O) Close-Open (C-O) Open-Close (O-C) Open-Close-Open (O-C-O) |
| DC Current clamps | |
| Nominal current | 300 ARMS or 450 A DCPK |
| Measuring range | 30/300 A |
| Frequency range | DC to 20 kHz (-3 dB) |
| DC Voltage measurement | |
| Range | ±300 V |
| Typical accuracy | ±0,5% RDG ±0,5% FS |
| Guaranteed accuracy | ±1% RDG ±1% FS |
| Analog inputs | |
| Coil current measurement | 2 channels |
| Voltage measurement | 1 channel |
| Coil driver | |
| Number of channels | 2 (Trip and Close coil) |
| Driver characteristics | ± 300 V DC / AC peak, ±35 A DC to 5 kHz |
| Timing control | Electronic drivers provide superior timing control |
| Protection | Overcurrent and overvoltage protection |
| Coil supply input | ± 300 V DC / AC peak, ±35 A DC to 5 kHz |
| Current measurement | |
| Current measurement for | Trip and Close coil, 2 channels, Hall-Effect sensor |
| Range | ±35 A DC to 5 kHz |
| Accuracy | ± (0,5 % rdg + 0,1 % FS) |
| Graphic presentations | Current waveform is displayed with a resolution of 0,1 ms |
| Internal memory | |
| Internal memory | Over 30 000 test results (including numerical and graphical results) |
| Power supply | |
| Input | 12 V DC, 5 A Input 90 – 264 V AC, 50/60 Hz |
| Internal battery supply | |
| Battery | 2 x 3,7 V, 2900 mAh rechargeable and user replaceable Li-ion battery |
| Battery operation | 8 hours under normal usage |
| Display | |
| Size | 145 mm (5.7 inches) |
| Type | Touch screen color display |
| Applicable standards | |
| Safety | Low Voltage Directive - Directive 2014/35/EU (CE conform) Applicable standards, for a class I instrument, pollution degree 2, Installation category II - IEC EN 61010-1 |
| Electromagnetic Compatibility | Directive 2014/30/EU (CE conform) Applicable standard - EN 61326-1 CAN/CSA-C22.2 No. 61010-1 |
| Environmental conditions | |
| Operating temperature | -10 ºC to + 55 ºC / 14 ºF to +131 ºF |
| Storage & Transportation | -40 ºC to + 70ºC / -40 ºF to +158 ºF |
| Humidity | 0% - 95% relative humidity, non-condensing |
| PC Interface | |
| PC Interface | Yes, USB |
| Warranty | |
| Warranty | 3 years |
| Dimensions and Weight | |
| Dimensions (W x H x D) | 170 x 310 x 58 mm (6,7 x 12,2 x 2,3 in) |
| Weight | 1.6 kg (3,5 lbs) |
- Coil supply cable set 2 x 5 m 2,5 mm2 with banana plugs
- Cable bag
- CAT-H device
- Main contacts cable set 8 m with alligator clamps (A1)
- Coil control cable 5 m with banana plugs (Three-pole control - 2 coil channels)
- Dolphin clip (black) (2pcs)
- Dolphin clip (red) (2pcs)
- Plastic transport case for CAT-H
- Jumper cable 1 x 30 cm 2,5 mm2 with banana plugs with retractable isolation (black) (3pcs)
- Jumper cable 1 x 30 cm 2,5 mm2 with banana plugs with retractable isolation (red) (3pcs)
- Main contacts connection 3 x 1 m and ground 2 m cable with alligator clamps (A1)
- Mains power cable EU 10 A with power supply adapter 12 V / 5 A
- Resistive touch pen
- Voltage sense cable set 2 x 5 m 2,5 mm2 with banana plugs
- USB with DV-Win software
- Test probe with grip jaws (black) (2pcs)
- Test probe with grip jaws (red) (2pcs)
- Mini USB cable
DV-Win software provides acquisition and analysis of the test results. Graphical presentation of a variety of measurements and timing test results uses cursors and powerful zoom functions for detailed analysis. Colors, grids, scales and positioning of the test data are all controlled by the user. DV-Win supports an automatic unit conversion (e.g. cycles to seconds or mm to inches). The test records can be exported in .cath file format for further analysis.
DV-Win software provides:
- Downloading the test results from the CAT-H to PC
- Acquisition and analysis of the test results
- The test results can be viewed, edited, saved, printed and exported
- Viewing and overlaying several graphs, for an easy test result comparison
- Selecting the measurement points and intervals using the two cursors
- Zoom and pan graph feature
- Customized configuration of the test result graphs
