Battery Capacity Tester DV Power BLU110T
SKU: BLU110T-EU-R1

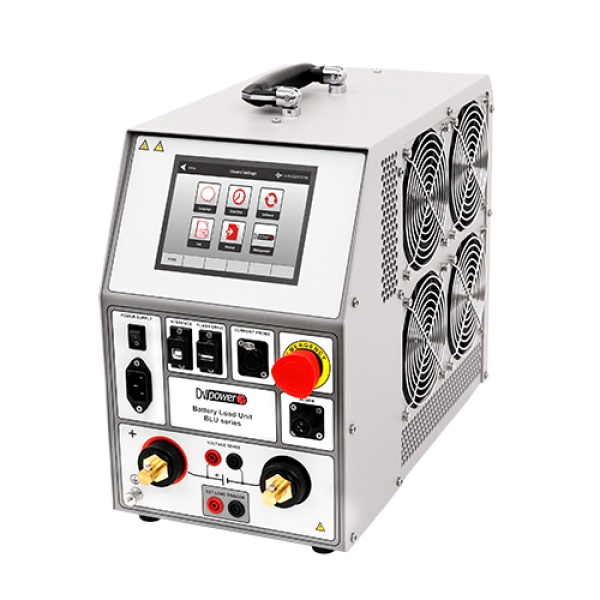

DV Power Battery Load Unit BLU110T is a state of the art, lightweight solution for battery capacity testing specifically designed for testing batteries in telecommunication utilities. This battery load unit can be used for testing batteries according to the following:
- Operating voltage range from 0,9 to 70,5 V
- Maximum discharge current of 150 A
- Testing online batteries (batteries already connected to the load)
Estimated shipping time 4-5 weeks
Battery systems must be reliable and provide power whenever it is required from them. When damaged they also present a safety risk. Batteries condition needs to be regularly inspected. The most reliable testing method is measurement of battery capacity performing the discharge test. The DV Power BLU110T, Battery Load Unit is an automated, reliable, and powerful tool for battery discharge test.
The BLU110T is one of DV Power’s stand-alone or PC-controlled battery capacity lightweight (12,8 kg/28,2 lbs) test set, based on a state-of-the-art technology, using the most advanced power electronics solutions with coolers and fans integrated into device. It can be used in a range of applications such as:
- Power utility batteries monitoring tasks
- Testing the power supply to circuit control and protection devices during power outages
- Telecom standby power applications
- For batteries requiring long-term discharge capabilities, etc.
Intended use BLU110T
DV Power BLU110T is a powerful solution with maximum discharge power of up to 8,5 kW. It is applicable to any battery string such as Lead-acid, Li-Ion, Ni-Cd, with the battery voltage from 0,9 V up to 70,5 V and maximum discharge current up to 150A. Besides that, if higher currents are required BLU110T can be connected to the battery along with additional BXL-T.The user can select three discharge modes:
- Constant current,
- Constant power,
- Constant resistance.
Model BLU110T is mainly used (but not limited to) telecommunication utilities. However, it can be used to any battery with voltage value not exceeding 70,5 V.
How to use BLU110T?
Testing with the DV Power BLU110T allows you to test batteries online by using the optional current clamp, which means that you do not have to disconnect the batteries from the load. Combined with Battery Voltage Supervisor BVS and Battery Voltage Recorders BVR, BLU220T devices are powerful tool which enables performing detailed evaluation of batteries.DV Power Battery Load Unit, BLU110T, is connected to the battery with a set of current test leads of customizable length (3, 5, 10 m, etc). Voltage sense test leads of the same length are part of the standard accessories.
After connecting the BLU110T to the test object, simply by choosing the type of test and presetting the necessary limits for battery type that is being tested the test is prepared to be started. Depending on the battery type, test current value, after a predefined time the result is one simple number, measured capacity expressed in Ah. If any of the predefined limits is reached before the time limit ends, battery is not able to provide the necessary power.
DV Power Battery Load Unit BLU110T is testing the batteries in accordance with battery testing standards: IEEE 450-2010, IEEE 1188-2005, IEEE 1106-2015, IEC 60896-11/22, and other relevant standards.
PC Software used with BLU110T

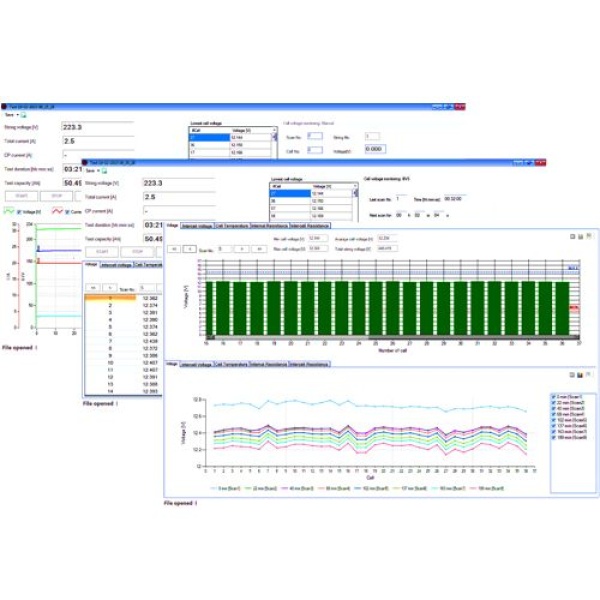

Official DV-B Win software is also included in the purchasing price of the Battery Load Unit DV Power BLU110T. Using the software a test can be controlled, performed and observed from a PC (or notebook) and the results can be saved directly on a PC (or notebook). Using DV-B Win the results can be arranged and printed for a report. Supported formats are:- XLS
- Word
- RTF.
| Product information | |
|---|---|
| Product name | Battery Capacity Tester DV Power BLU110T |
| Brand | DV Power |
| Internal Voltage Measurement | |
| Measurement range | 0 – 70 V DC |
| Measurement resolution | 0,1 V or better |
| Typical accuracy | ± (0,5 % rdg + 0,1 V) |
| Internal Current Measurement | |
| Measurement range | 0 – 300 A |
| Measurement resolution | 0,1 A |
| Typical excitation current accuracy | ± (0,5 % rdg + 0,1 A) |
| Display range | 0 – 2 999,9 A DC |
| Time Measurement | |
| Typical accuracy | ± 0,01 % of reading ± 1 digit |
| Mains Power Supply | |
| Connection according to | IEC/EN60320-1 C320 |
| Mains supply | 90 – 264 V AC, 50/60 Hz |
| Input power | 100 W |
| Fuse | 2 A / 250 V, type F |
| Input for Current Probe | |
| Range | 0 – 1 V DC |
| mV/A ratio | Software settable values |
| Input impedance | > 1 MΩ |
| Fuse | 2 A / 250 V, type F |
| Load Section | |
| Battery voltage | 5,25 – 70,5 V |
| Power | 19,7 kW (max) |
| Discharge modes | Constant current / power / resistance current, power or resistance profile mode |
| Constant Current (Const I) | |
| Range | 0 – 150 A DC |
| Resolution | 0,1 A |
| Typical accuracy | ± (0,5 % rdg + 0,2 A) |
| Ripple | max 0,4 A peak |
| Constant Resistance (Const R) | |
| Range | 0 – 70,5 Ω |
| Resolution | 0,1 Ω |
| Typical accuracy | ± 1 % |
| Constant Power (Const P) | |
| Range | 0 – 8,5 kW |
| Resolution | 0,01 kW |
| Typical accuracy | ± 1 % |
| Ripple | max 0,2 kW peak |
| Range/Resolution | |
| Current | 0 – 2 999,9 A DC / 0,1 A |
| Voltage | 0 – 999,9 V DC / 0,1 V |
| Capacity | 0 – 9999,9999 Ah / 0,0001 Ah |
| Time | 00 h |
| Stop Parameters | |
| Stop Parameters | End voltage (total battery or per-cell voltage) Capacity Test time |
| Current Probe Specifications | |
| Current clamp | 30/300 A |
| Ranges | 30 A and 300 A |
| mV/A ratios | 10 mV/A and 1 mV/A |
| Supply | from the instrument |
| Computer Interface | |
| Interface | USB |
| Display | |
| Display | 4,3'' color touch screen display |
| Environmental Conditions | |
| Operating temperature | -10 ºC – + 55 ºC (+14 ºF – +131 ºF) |
| Storage & transportation | -40 ºC – + 70ºC (-40 ºF – +158 ºF) |
| Humidity | 5 % – 95 % relative humidity |
| Environmental Protection | |
| Protection | IP 20 |
| Applicable Standards | |
| Installation/overvoltage | CAT II IEC/EN 61010-1 |
| Pollution | degree 2 |
| Low voltage directive | Directive 2014/35/EU (CE Conform) |
| Electromagnetic compatibility | Directive 2014/30/EU (CE Conform) EN 61326-1 IEEE 450-2010, IEEE 1188-2005, IEEE 1106-2015, IEC 60896-11, IEC 60896-22 and other relevant standards CAN/CSA-C22.2 No. 61010-1 |
| Shock/vibration/fall instrument | ETSI EN 300 019-2-7 class 7M2 |
| Shock/vibration/fall instrument in transport case | ISTA 2A |
| Protection | |
| Thermal cut-outs and overload protection | Automatic |
| Button | Emergency stop button |
| Protection | Overcurrent overheat and overvoltage protection |
| Available Languages | |
| Languages | English German French |
| Dimensions and Weight | |
| Dimensions (W x H x D) | 221 x 440 x 355 mm (8,7 x 17,3 x 14,0 in) |
| Weight | 12.8 kg (28,2 lbs) |
- BLU110T device
- Current cables 2 x 3 m 50 mm2 with alligator clamps (A4) isolated (100 V)
- Cable bag
- Ground (PE) cable
- USB cable
- Transport case for BLU - small size
- Mains power cable EU 10 A
- Sense cables 2 x 3 m with banana plugs + dolphin clip
- USB with DV-B Win software
- Debug adapter
The DV-B Win software is included in the price, and all its updates are free of charge. Using the DV-B Win software a test can be performed and monitored from a PC, and the results can be saved directly to a PC. Communication between the BLU and a PC is achieved through a USB cable. Using the DV-B Win, the results can be arranged and printed for a report in selectable formats as XLS, PDF, Word, or RTF. Also, a possibility of importing other types of data formats (jpg, png, doc) into standardized DV-B Win report is provided, as well as exporting the numerical and graphical results from the DV-B Win into a customizable report. Additionally, the software provides a possibility of setting extra parameters (cell voltage, string voltage, capacity and time) for alarming and terminating the test.
