Short Circuit Loop Impedance Meter Sonel MZC-20E

SKU: SL-MZC-20E-EU-R1

Fault loop impedance measurement with 0.01 Ω resolution.

  • Measurement of resistance (RS) and reactance (XS) components
  • Voltage measurement 0 - 440 V AC
  • Power supply: batteries (4 x LR6) or rechargeable batteries (4 x NiMH)
Free shipping over 200 EUR
Estimated shipping time 3-4 weeks

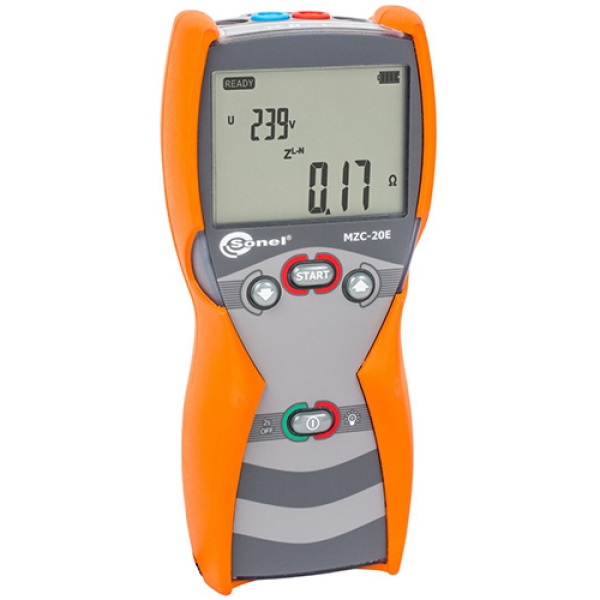

Handheld battery operated fault loop impedance meter

Sonel MZC-20E is a straightforward and comfortable short circuit loop impedance meter.
The precise measurement of short circuit loop impedance in electrcial networks with various voltage ratings is possible with the tiny MZC-20E meter. This equipment allows measurement in electrical networks with voltages up to 440 V. Installers and test engineers working in single- and multi-family homes, office buildings, manufacturing facilities, and other structures with low-voltage electrical installations will find the gadget particularly helpful. Furthermore, the device is ideal for electrical maintenance services. For any application, it always ensures efficient operation and high accuracy of the measurement. Another benefit of this instrument is that, because to its extremely durable shell, it can function even in unfavorable weather circumstances. Despite its small size, the meter does its job perfectly and works well when instantaneous, precise measurements are needed.

Capabilities

  • Fault loop impedance measurement with 0.01 Ω resolution.
  • Operates in networks with voltages 220/380 V, 230/400 V, 240/415 V (operating range 180 - 440 V).
  • Operating frequency 45 - 65 Hz
  • Calculation of Ik fault current.
  • Automatic differentiation between phase and phase-to-phase voltage.
  • Possibility of applying test leads: 1.2 m, 5 m and longer.
  • Measurement with swapped L and N conductors.
  • Measurement of resistance (RS) and reactance (XS) components.
  • Additional features

  • Voltage measurement 0 - 440 V AC.
  • Power supply: batteries (4 x LR6) or rechargeable batteries (4 x NiMH).
  • Application

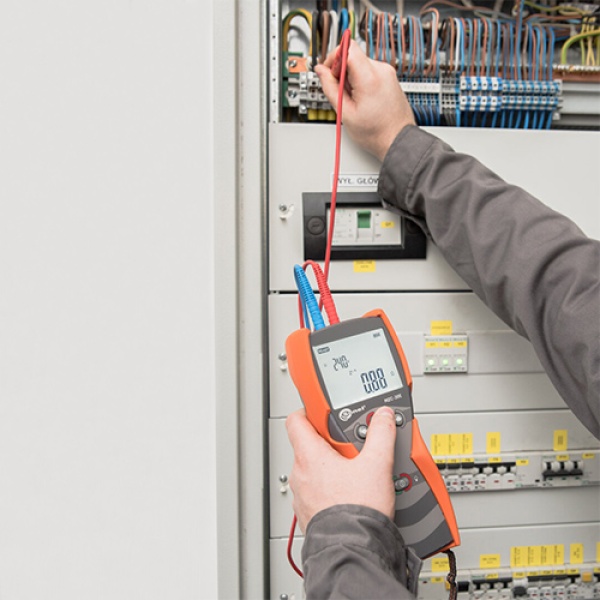

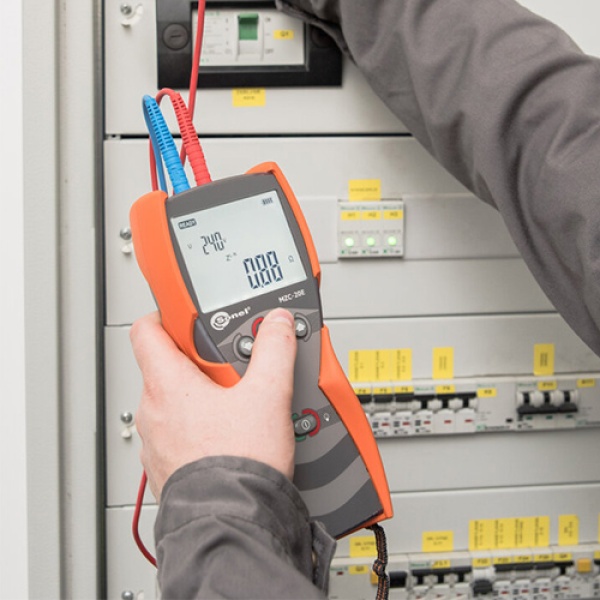

    This meter is designed for measurements on objects protected by circuit breakers with rating up to 63 A, where fault currents reach 1 kA, i.e. in housing industry, single and multi-family houses, office buildings, small factories and all other facilities that are equipped with low-voltage electrical systems. In addition, the meter is a useful tool for maintenance services.

    Product information
    Product name Short Circuit Loop Impedance Meter Sonel MZC-20E
    Brand Sonel
    Voltage
    Measurement range 0 V - 440 V
    Display range 0 V - 440 V
    Resolution 1 V
    Accuracy ±(% m.v. + digits) ±(2 % m.v. + 2 digits)
    Short-circuit loop parameters: 2p method - standard current measurement
    Maximum current 26.7 A
    Measurement range from 0.24 Ω - 200 Ω
    Display range 0.00 Ω - 200 Ω
    Resolution from 0.01 Ω
    Accuracy ±(% m.v. + digits) from ±(2.5 % m.v. + 3 digits)
    Short-circuit current readings: 2p method - standard current measurement
    Measurement range Calculated on the basis of test ZS ranges and rated voltages
    Display range 1.15 A - 40 kA
    Resolution from 0.01 A
    Accuracy ±(% m.v. + digits) Calculated on the basis of error for fault loop
    Environmental Conditions
    Measuring category acc. to EN 61010 III 300 V
    Ingress protection IP67
    Type of insulation according to EN 61010-1 and EN 61557 double
    Operating temperature -10 - +50 °C
    Storage temperature -20 - +70 °C
    Humidity 20 - 80 %
    Nominal temperature 23 ± 2 °C
    Reference humidity 40 % - 60 %
    Power supply 4x LR6 1.5 V alkaline battery, 4x AA size NiMH rechargeable battery
    Applicable Standards
    Quality standard – development, design and production ISO 9001
    EMC (emission for industrial environment) EN 61326-1, EN 61326-2-2
    Dimensions and Weight
    Dimensions (W x H x D) 98 x 220 x 58 mm (3,9 x 8,7 x 2,3 in)
    Weight 0.509 kg (1,1 lbs)
    • Alkaline battery AA LR06 (15A) 1.5 V (4pcs)
    • Factory calibration certificate
    • M-13 Carrying case
    • K-02 Crocodile clip, red, 1 kV, 20 A
    • M-1 Hanging straps
    • Hanging hook straps
    • Test lead 1.2 m CAT III/1000V CAT IV/600V (banana plugs) blue
    • Test lead 1.2 m, 1 kV (banana plugs) red
    • Pin probe, blue 1 kV (banana socket)
    • Pin probe CAT III/1000V CAT IV/600V (banana socket) red
    • Short Circuit Loop Impedance Meter MZC-20E
