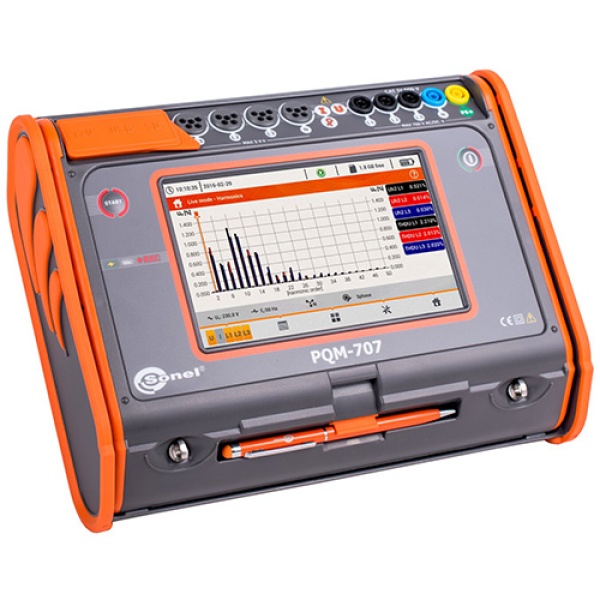

Power Quality Analyzer Sonel PQM-707

SKU: SL-PQM-707-EU-R1

Power Quality analyzer Sonel PQM-707 measures and records according to the IEC 61000-4-30 class S standard

  • Internal rechargeable battery, autonomy of the meter (min. 6 hours).
  • Measures voltages L1, L2, L3, N, currents L1, L2, L3, N and much more.
Free shipping over 200 EUR
Estimated shipping time 3-4 weeks

The Power Quality Analyzer Sonel PQM-707 is a must-have tool for anyone looking to measure and analyze the quality of their electricity and power network parameters. With its advanced features, it is perfect for use in a variety of industries, including residential construction, industrial systems, and telecommunications networks.

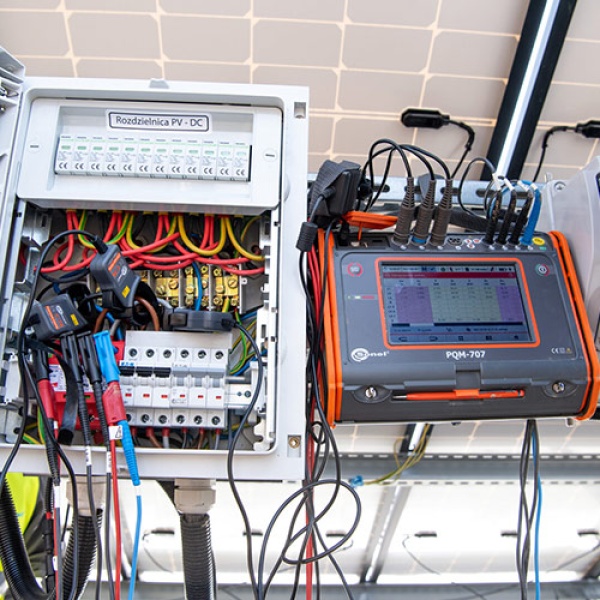

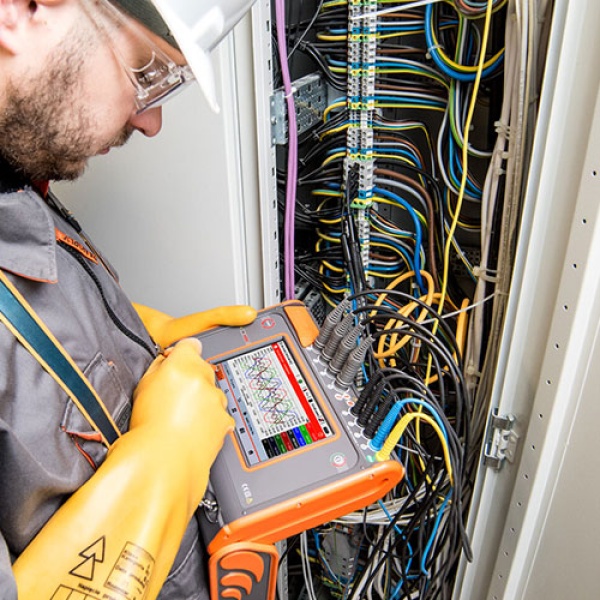

How to use Power Quality Analyzer Sonel PQM-707

The PQM-707 is designed to be easy to use, with its 4 current inputs and physical measurement of current in the neutral conductor, allowing for accurate and reliable data collection. It also includes built-in registration of up to 1100 parameters, including average, maximum, minimum, and instantaneous values, as well as a built-in heater for stable operation in low temperatures down to -20ºC. Additionally, its IP65 ingress protection and internal rechargeable battery with a minimum of 6 hours autonomy allows for use in harsh weather conditions and remote locations.

Features of Power Quality Analyzer Sonel PQM-707

  • 4 current inputs and physical measurement of current in the neutral conductor
  • Built-in registration of up to 1100 parameters including average, maximum, minimum, and instantaneous values
  • Built-in heater for stable operation in low temperatures down to -20ºC
  • IP65 ingress protection and internal rechargeable battery with a minimum of 6 hours autonomy
  • Wide range of measured parameters including voltages, currents, crest factors, frequency, active and reactive power, energy, power factor, and harmonic distortion
  • Advanced features such as event logging for current and voltage, oscillograms, and half-period RMS charts
  • Compatibility with a wide range of mains and ability to measure direct current systems including single-phase, split-phase with common N, three-phase WYE with and without N conductor, three-phase Delta, and three-phase WYE and Delta Aron with current and voltage transducers
  • The Power Quality Analyzer Sonel PQM-707 is a reliable and accurate tool for professionals looking to enhance their power network analysis capabilities. With its wide range of features, it is versatile and powerful, making it a great choice for those looking to improve their power network analysis capabilities.

    For more information about Power Quality analyzer Sonel PQM-707 check out product datasheet within Documents tab.

    Product information
    Product name Power Quality Analyzer Sonel PQM-707
    Brand Sonel
    Alternating voltage (TRMS)
    Measurement range 0.0 - 760.0 V
    Resolution 4 significant digits
    Accuracy ±0.5 % Unom
    Crest Factor - Voltage
    Measurement range 1.00 - 10.00 (≤1.65 for voltage of 690 V)
    Resolution 0.01
    Accuracy ±5 %
    Crest Factor - Current
    Measurement range 1.00 - 10.00 (≤3.6 for Inom)
    Resolution 0.01
    Accuracy ±5 %
    Alternating current (TRMS)
    Measurement range depending on clamp
    Resolution 0.01 % Inom
    Accuracy ±0.2 % Inom (error does not account for clamp error)
    Frequency
    Measurement range 40.00 - 70.00 Hz
    Resolution 0.01 Hz
    Accuracy ±0.05 Hz
    Active, reactive, apparent and distortion power
    Measurement range depending on configuration (transducers, clamps)
    Resolution 4 significant digits
    Accuracy depending on configuration (transducers, clamps)
    Active, reactive and apparent energy
    Measurement range depending on configuration (transducers, clamps)
    Resolution 4 significant digits
    Accuracy as power error
    cosφ and power factor (PF)
    Measurement range 0.00 - 1.00
    Resolution 0.01
    Accuracy ±0.03
    tanφ
    Measurement range 0.00 - 10.00
    Resolution 0.01
    Accuracy depends on error of active and reactive power
    Harmonics and interharmonics: Voltage
    Measurement range DC, 1 - 50
    Resolution as for alternating voltage True RMS
    Accuracy ±0.15 % Unom for m.v.< 3 % Unom
    ±5 % m.v. for m.v. ≥ 3 % U
    Harmonics and interharmonics: Current
    Measurement range DC, 1 - 50
    Resolution as for alternating current True RMS
    Accuracy ±0.5 % Inom for m.v. < 10 % Inom
    ±5 % m.v. for m.v. ≥ 10 % I
    THD: Voltage
    Measurement range 0.0 - 100.0 % (relative to RMS value)
    Resolution 0.1 %
    Accuracy ±5 %
    THD: Current
    Measurement range 0.0 - 100.0 % (relative to RMS value)
    Resolution 0.1 %
    Accuracy ±5 %
    Flicker index
    Measurement range 0.40 - 10.00
    Resolution 0.01
    Accuracy ±10 %
    Unbalance factor: Voltage and current
    Measurement range 0.0 - 10.0 %
    Resolution 0.1 %
    Accuracy ±0.15 % (absolute error)
    Measurement of control signals
    Measurement range depending on clamp
    Resolution 0.01 % Inom
    Accuracy ±4% m.v. for m.v. ≥ 10% Inom
    ±4% Inom for m.v. < 10% Inom
    (RMS1/2)
    Applicable Standards
    Reports in compliance with EN 50160, IEC 61000-4-30 Class S, IEC 61000-4-15, IEC 61000-4-7, IEC 61010-1, IEC 61010-2-030, IEC 61326, ISO 9001
    Clamps
    Compatible clamps C-4A, C-5A, C-6A, C-7A, F-1A1, F-1A, F-1A6, F-2A1, F-2A, F-2A6, F-3A1, F-3A, F-3A6, F-2AHD, F-3AHD
    Environmental Conditions:
    Ingress protection IP 51
    Operating temperature -10 °C - +50 °C
    Storage temperature -20 °C - +60 °C
    Humidity 10 - 90 % with possible condensation
    Nominal temperature 23±2 °C
    Reference humidity 40 - 60 %
    Data Storage
    Memory Removable microSD memory card 4 GB (as standard) for measurement data, screenshots and reports
    option of extending up to 32 GB. Internal memory (approx. 1GB) for configuration data.
    Computer Interface
    Display Color LCD TFT with polytouch, 800x480 resolution, diagonal 7”
    Communication USB
    Dimensions and Weight
    Dimensions (W x H x D) 223 x 288 x 75 mm (8,8 x 11,3 x 3,0 in)
    Weight 1.75 kg (3,9 lbs)
    • AC-16 Line splitter
    • AGT-16C Three-phase socket adapter 16 A (4P)
    • AGT-16P Three-phase socket adapter 16 A (5P)
    • AGT-16T Industrial socket adapter 16 A
    • AGT-32C Three-phase socket adapter 32 A (4P)
    • AGT-32P Three-phase socket adapter 32 A (5P)
    • AGT-32T Industrial socket adapter 32 A
    • AGT-63P Three-phase socket adapter 63 A (5P)
    • AZ-2 Power supply adapter (IEC C7 plug/banana sockets)
    • Voltage adapter for DIN rail terminal blocks with M4/M6 thread (5 pcs.)
    • M4/M6 screw / banana socket adapter - 4 pcs set
    • Adapter for a connector rail with M4 and M6 thread; black
    • Adapter for a connector rail with M4 and M6 thread; blue
    • Adapter for a connector rail with M4 and M6 thread; yellow
    • ASX-1 Piercing adapter for insulated cables
    • ASX-1 Piercing adapter for insulated cables set (4 pcs.)
    • Adapter for the control terminals set (5 pcs) CAT II / 1000V with banana socket
    • Magnetic voltage adapter, black
    • Magnetic contact adapter, blue
    • Magnetic voltage adapter (set - 4 pcs)
    • AKU-15 Li-ion battery 11.1 V 3.4 Ah
    • F-1A1 Flexible clamp (Φ=360 mm)
    • F-1A6 Flexible clamp (Φ=360 mm)
    • F-1A Flexible coil (Φ=360 mm)
    • F-2A1 Flexible clamp (Φ=235 mm)
    • F-2AHD Flexible coil (Φ=290 mm)
    • F-2A Flexible coil (Φ=235 mm)
    • F-3A Flexible coil (Φ=120 mm) (4pcs)
    • Factory calibration certificate
    • L-4 Carrying case
    • K-01 Crocodile clip, black, 1 kV, 20 A (3pcs)
    • K-02 Crocodile clip, blue, 1 kV, 20 A
    • K-02 Crocodile clip, red, 1 kV, 20 A (2pcs)
    • K-02 Crocodile clip, yellow, 1 kV, 20 A
    • Test lead markers L1, L2, L3, N (set of 8 pcs)
    • Hanging straps
    • Touchscreen pen
    • Sonel pendrive
    • Sonel Analysis 4 - Program for handling PQM series power quality analyzers and MPI-540
    • L1 Test lead 2.2 m (banana plugs) black
    • L2 Test lead 2.2 m (banana plugs) black
    • L3 Test lead 2.2 m (banana plugs) black
    • Test lead 2.2 m CAT III/1000V CAT IV/600V (banana plugs) blue
    • Test lead 2.2 m CAT III/1000V CAT IV/600V (banana plugs) yellow / green
    • Cable for battery charging from car cigarette lighter socket (12 V)
    • Mains power cable 230 V (IEC C7 plug)
    • USB cable
    • Z-7 Power supply adapter
    • Power Quality Analyzer PQM-707

    Sonel Analysis software - WAPROANALIZA4
