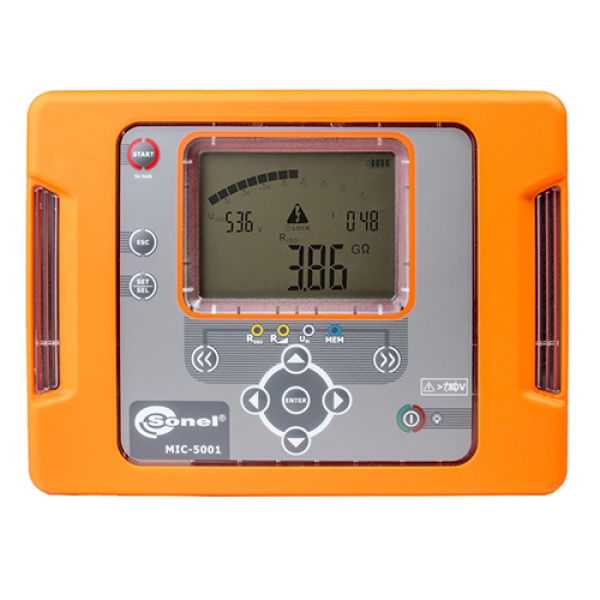

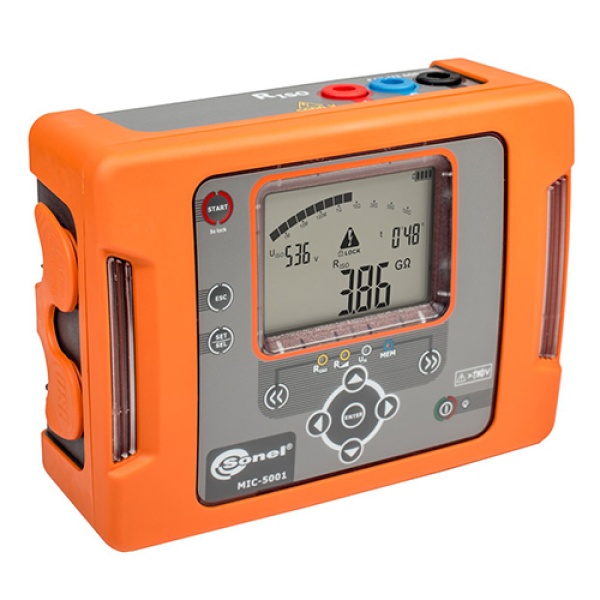

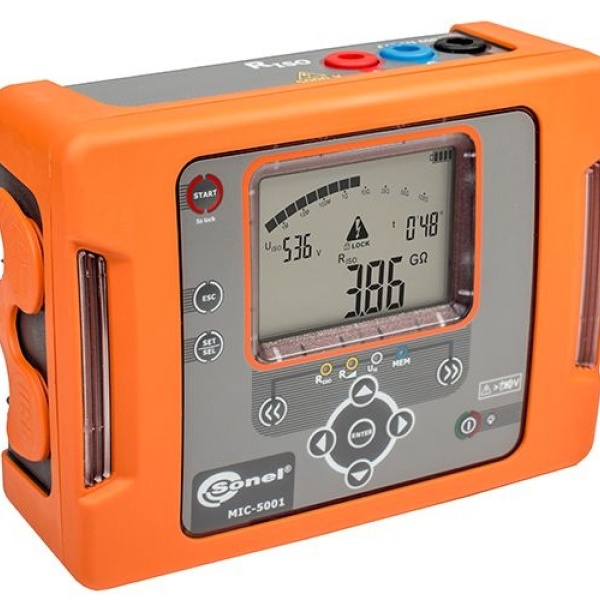

Insulation Resistance Meter Sonel MIC-5001

SKU: SL-MIC-5001-EU-R1

With budget model MIC-5001 you can check the resistance of objects up to 5TΩ with a 5000V DC voltage rate test. MIC-5001 features RampTest functionality that enables a user to determine the insulation resistance by applying linearly increasing voltage with the slope of 1 kV/s.

    Free shipping over 200 EUR
    Estimated shipping time 3-4 weeks

    The Insulation Resistance Meter Sonel MIC-5001 is a budget-friendly tool for measuring the resistance of objects up to 5TΩ with a 5000V DC voltage rate test. With its 1.3 mA current, the unit can sustain reliable readings in all conditions, making it an essential tool for every service technician.

    How to use Insulation Resistance Meter Sonel MIC-5001

    The MIC-5001 is designed for easy use, with a RAMP TEST mode that applies voltage in a continuous increase at a constant rate, up to the selected maximum. The third socket (GUARD) allows you to verify the amount of leakage current that may “escape” through faulty or contaminated insulation. The low weight of approx. 1kg allows for comfortable use in all conditions. PI / DAR functions allow for a better understanding of insulation resistance.

    Features of Insulation Resistance Meter Sonel MIC-5001

    The MIC-5001 offers a range of features including built-in memory with 990 cells, a large screen for easy measurements in all conditions, and the ability to recharge the device during measurements using a power bank. The meter also has a built-in voltmeter for measuring AC and DC voltages up to 750 V, and can record and send up to 12,000 measurement results to a computer for further analysis. The device also has the unique ability to perform a slow and uniform method of applying test voltage, known as RampTest, which protects the insulation against sudden "electrical stress" and can reveal defects that can't be observed in classic RISO resistance measurements.

    Product information
    Product name Insulation Resistance Meter Sonel MIC-5001
    Brand Sonel
    Measurement information
    Leakage current Yes
    Test Voltage 50-5000V
    Voltage steps Every 50 or 100V
    Measurement current 1,5 mA
    Time of measurement Max 600s
    Factor Abs/PI, DAR Yes
    DD No
    SV No
    RAMP TEST Yes
    Voltage measurement AC/DC 1-600
    3 test leads test ( GUARD) Yes
    Low voltage resistance No
    Continuity 200mA No
    Auto-zero No
    Capacity No
    Communication and results display
    Cells 990 cells
    Screen sectional
    Communication interface USB
    Software Sonel Reader
    Supply related information
    Internal NiMH 9.6 V 2 Ah
    Hardware protection (fuses, etc.)
    Discharge of tested object after the insulation resistance measurement completes in order to remove high voltage charge remaining due to cable capacitance Automatic
    Protection Protection against measuring live objects (measurement will not proceed)
    Environmental Conditions
    Operating temperature -15...+40°C
    Applicable Standards (Safety, EMC and others) and Certificates
    Certificate EN 61326-1and EN 61326-2-2
    Additional information
    Degree of housing protection acc. to EN 60529 is IP65.
    Dimensions and Weight
    Dimensions (W x H x D) -
    Weight -
    IT Scheda MIC-5001
    • Factory calibration certificate
    • M-8 Carrying case
    • K-09 Crocodile clip, black, 11 kV, 32 A
    • K-09 Crocodile clip, blue, 11 kV, 32 A
    • K-09 Crocodile clip, red, 11 kV, 32 A
    • Test lead 1.8 m 5 kV (banana plugs, shielded) black/graphite
    • Test lead 1.8 m 5 kV (banana plugs) blue
    • Test lead 1.8 m 5 kV (banana plugs) red
    • Mains power cable 230 V (IEC C7 plug)
    • USB cable
    • Pin probe 5 kV (banana socket) black
    • Pin probe 5 kV (banana socket) red
    • Z-7 Power supply adapter
    • Insulation Resistance Meter MIC-5001

    Sonel Reader PC software
