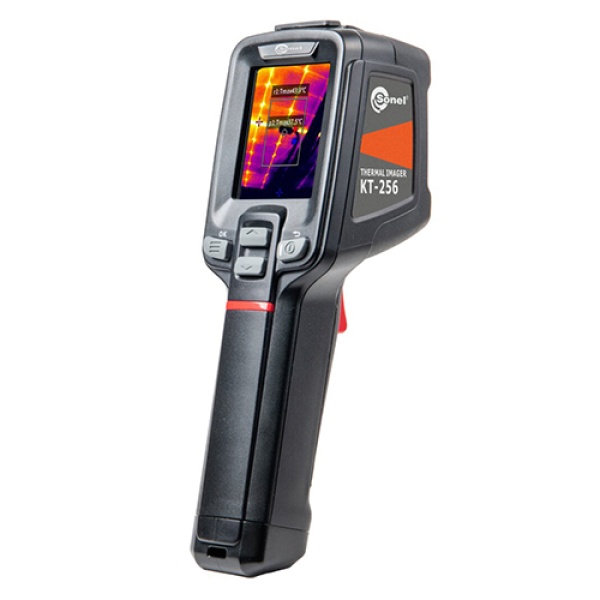

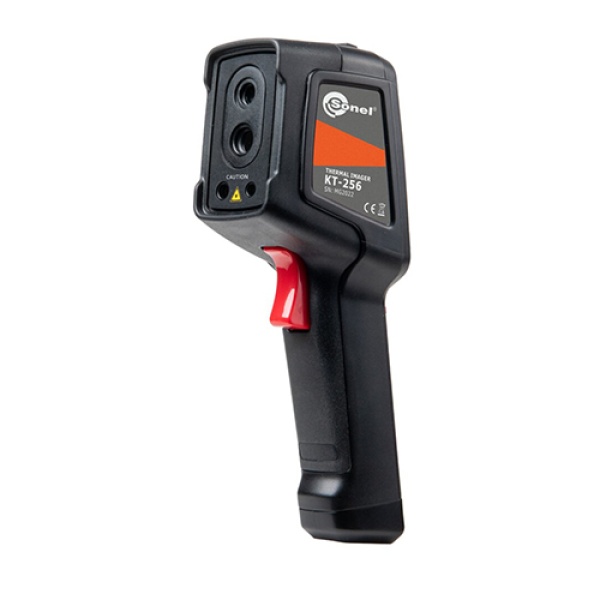

Thermal Imager Sonel KT-256
SKU: SL-KT-256-EU-R1
Free shipping over 200 EUR
Estimated shipping time 3-4 weeks
Estimated shipping time 3-4 weeks
Product information | |
---|---|
Product name | Thermal Imager Sonel KT-256 |
Brand | Sonel |
Camera | |
Detector resolution | 256 x 192 / 12 µm |
Detector | 7.5~14 µm |
Frame rate | 25 Hz |
Sensitivity | 45 mK |
Spatial resolution (IFOV) | 3.75 mrad |
Focus | Fixed |
Lens | |
Lens (field of vision / focal | |
distance) | 56° x 48°/3.2 mm |
Image | |
Display | 2.4", 240 x 320, LCD |
Image mode | IR / Visual / Infrafusion MIF / PiP |
Temperature range | Range 1 -20°C +150°C | -20°F +302°F Range 2 100°C +550°C | 212°F 1022°F |
Accuracy | ±2°C | ±4°F or ±2% of reading (for ambient temperature 15°C 30°C, object temp. ≥0°C) |
Functions | |
Image analysis mode | Point. 3 areas. Temperature indication min, max. Temp. alarm |
Palettes | 6 |
Emissivity | Selectable from 0.01 to 1.00 or from the list |
Measurement adjustment | Adjustable distance, ambient temperature (reflected) |
Image file format | JPG |
Built-in features | Visual camera 2 MPix, LED flashlight, laser pointer |
Environmental conditions | |
Ingress protection | IP54 |
Operating temperature | -10°C +50°C | 14°F 122°F |
Storage temperature | -40°C +70°C | -40°F +158°F |
Power supply | Li-Ion battery (operating time >16 hours), built-in charger (charging time <2.5 hour), AC adapter 110-230 V, 50/60 Hz |
Data Storage | |
External memory | microSD card slot (max. 32 GB) |
Computer Interface | |
Interfaces | microSD card slot (max. 32 GB), USB type C, tripod |
Dimensions and Weight | |
Dimensions (W x H x D) | 61.5 x 194 x 76 mm (2,4 x 7,6 x 3,0 in) |
Weight | 0.38 kg (0,8 lbs) |
- Declaration of verification
- MicroSD card 16 GB
- Wristband
- USB cable type C
- Z-20 USB power supply adapter
- Thermal Imager KT-256
