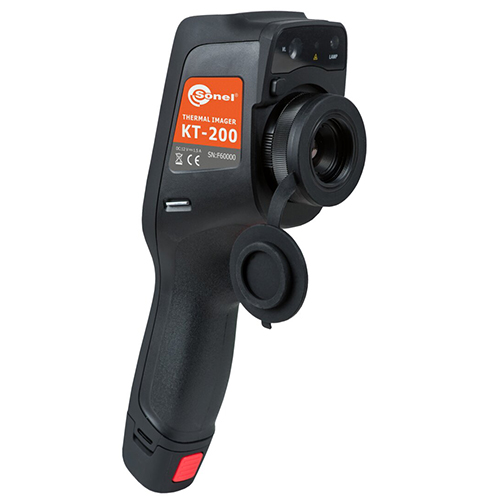

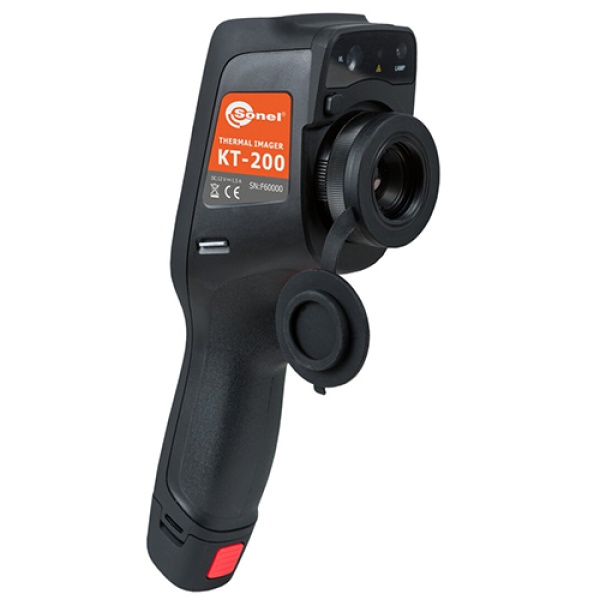

Thermal Imager Sonel KT-200 7mm lens

SKU: SL-KT-200-EU-R1

The KT-200 ensures highly detailed images and accurate measurements. It comes with a 7 mm lens, i.e. it has a 37.8° field of view and 28.8° focal length. Several imaging modes are provided: IR, visual, PIP, MIF.

    Free shipping over 200 EUR
    Estimated shipping time 3-4 weeks

    The Sonel KT-200 thermal imager is a budget-friendly yet highly accurate device for temperature measurements. Its compact design and intuitive user interface make it a great tool for everyday use, especially for maintenance personnel, electricians, and the construction industry.

    How to use Thermal Imager Sonel KT-200

    The KT-200 is easy to use, with a centrally located navigation button and a menu on the touchscreen. Simply select the mode you want to use (IR, visual, PIP, MIF) and take photos or record videos. The built-in report module allows you to prepare and print out reports directly from the camera.

    Features of Thermal Imager Sonel KT-200

  • High sensitivity detectors and a wide temperature range
  • Comprehensive image analysis tools
  • Intuitive user interface
  • IR video recording (on the SD card or computer disc)
  • Built-in report module
  • Different imaging modes: IR, visual, PIP, MIF
  • Built-in visual camera: 5 Mpx
  • Interfaces: Micro USB2.0, Wi-Fi, Gigabit Ethernet, Mini HDMI, slot microSD
  • Professional software for thermogram analysis included
  • Support from the built-in LED torch and laser improves operational quality by facilitating photography and then image interpretation
  • Built-in communication interfaces ensure constant communication between the camera and the computer or mobile device, also over a wireless network
  • Lightweight and portable design
  • High-capacity
  • The KT-200 is a solid and portable tool that ensures full control and flexibility in various situations and is an ideal tool for both novice users and professional thermographic inspectors.

    Product information
    Product name Thermal Imager Sonel KT-200 7mm lens
    Brand Sonel
    Camera
    Detector resolution 192 x 144 / 25 µm VOx
    Spectral range 7.5~14 μm
    Frame rate 25 Hz
    Thermal sensitivity 50 mK
    Focusing Manual
    IFOV (standard lens) 3.45 mrad
    Minimum focus distance
    (standard lens) 0.5 m
    Lens
    Lens (field of view/focal length) 37.8° x 28.8°/7 mm
    Display 4", 480 x 800 px, high-quality LCD touchscreen
    Imaging mode IR /Visual/InfraFusion MIF/PiP
    Zoom 1.1 - 4
    Temperature measurement
    Temperature range Range 1 -20°C - 150°C | -4°F - 302°F
    Range 2 150°C - 650°C | 302°F - 1202°F
    Range 3 650°C - 1500°C | 1202°C - 2732°C (option)
    Accuracy ±2°C | ±4°F or 2% of reading (for ambient temperatures between 15°C and 35°C and object temperature above 0°C)
    Functions
    Image analysis mode 5 points, 2 lines, 5 areas. Temp. readings min., max., mean. Isotherms. Temp. difference Alarm temp. Dew point.
    Palettes 8
    Emissivity coefficient Adjustable from 0.01 to 1.00 or taken from the material list.
    Measurement correction Settable distance, relative humidity, ambient (reflected) temperature
    Photo image format JPG
    Notes to IR photos Audio (60 seconds), text, graphic, photo.
    Report module PDF reports, report printing through Wi-Fi
    Video file format AVI, IRV (including information on temperature)
    Built-in functions Visual camera 5 MPix, LED torch, laser pointer, microphone, speaker.
    Environmental conditions
    Ingress protection IP54
    Operating temperature -10°C - 50°C | 14°F - 122°F
    Storage temperature -40°C - 70°C | -40°F - 158°F
    Humidity 10%…95%
    Shock/vibration resistance 30g 11 ms (IEC 60068-2-27) / 10 Hz~150 Hz~10 Hz 0.15 mm (IEC 60068-2-6)
    Power supply Li-ion battery (operating time >4 hours), built-in charger, AC 110-230 V (50/60 Hz) / 12 V power supply adapter
    Data Storage
    Internal memory 150 MB
    External memory Max. capacity of microSD card 16 GB
    Computer Interface
    Wireless communication Wi-Fi
    Interface MicroSD card slot, microHDMI, microUSB 2.0
    Dimensions and Weight
    Dimensions (W x H x D) 106 x 274 x 78 mm (4,2 x 10,8 x 3,1 in)
    Weight 0.84 kg (1,9 lbs)
    • AKU-24 Li-ion battery 7.2 V 3.2 Ah (2pcs)
    • Factory calibration certificate
    • L-16 Carrying case
    • MicroSD card 16 GB
    • Wristband
    • HDMI micro cable
    • MicroUSB cable
    • Protective gloves (for operating the touchscreen)
    • Z-13 Power supply adapter
    • Thermal Imager KT-200 7mm lens

    Sonel ThermoAnalyze 2
