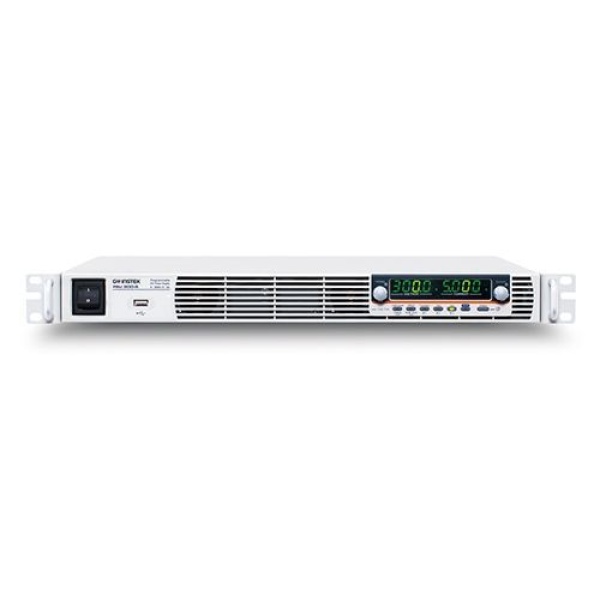

Single Channel Programmable Switching DC Power Supply GW Instek PSU 400-3.8

SKU: GW-PSU 400-3.8-EU-R1

The PSU-Series is a single output programmable switching DC power supply covering a power range up to 1560W. This Series of products include ten models with the combination from 6V to 600V rated voltages.

    Free shipping over 200 EUR
    Estimated shipping time 4-5 weeks

    The PSU-Series Single Channel Programmable Switching DC Power Supply, manufactured by GW Instek, is a versatile and powerful solution for a wide range of voltage and current measurement requirements. With a power range of up to 1560W and ten models that cover a range of voltage ratings from 6V to 600V, this series of power supplies can meet the needs of a wide variety of applications.

    Power Supply GW Instek PSU 400-3.8 have ability to conduct series and parallel connections with multiple units of the same model

    One of the key features of the PSU-Series is its ability to conduct series and parallel connections with multiple units of the same model. This allows users to increase the total output power, total current, or total voltage as needed for their specific application. By connecting up to 2 units in series (for models under 300V), users can achieve a maximum voltage of 600V, and by connecting up to 4 units in parallel, users can achieve a maximum current of 800A. This makes the PSU-Series an ideal choice for applications that require high power and high current output.

    Power Supply GW Instek PSU 400-3.8 allows users to choose between CC priority and CV priority settings

    The PSU-Series also allows users to choose between CC priority and CV priority settings. In CC mode, users can adjust the output current to a specific level, while in CV mode, users can adjust the output voltage to a specific level. Additionally, users can set the slew rate for output voltage or current based on the specific requirements of their application. This is useful for controlling the rise or fall of the output voltage or current, and can help to protect the DUT (Device Under Test) from damage due to inrush current at turn-on.

    The PSU-Series also boasts a number of other features that make it an attractive choice for a wide range of applications. These include its high efficiency and high power density, as well as its 1U height and 19” rack mount size, which make it easy to integrate into existing test setups. Additionally, the PSU-Series includes a range of standard interfaces, including USB, LAN, RS-232, and RS-485, and also offers optional interfaces such as GPIB and an isolated analog interface for voltage and current control.

    The PSU-Series Single Channel Programmable Switching DC Power Supply from GW Instek is a powerful and versatile solution for a wide range of voltage and current measurement requirements. With its ability to conduct series and parallel connections, its support for CC and CV priority settings, and its high efficiency and high power density, this series of power supplies is ideal for a wide variety of applications. And this can be further supported by the brochure from the manufacturers.

    Product information
    Product name Single Channel Programmable Switching DC Power Supply GW Instek PSU 400-3.8
    Brand GW Instek
    Dimensions and Weight
    Dimensions (W x H x D) 43.6 x 423 x 447.2 mm (1,7 x 16,7 x 17,6 in)
    Weight 8.7 kg (19,2 lbs)
    • 1 U handle (RoHS)
    • Analog connector plug kit
    • 1 U bracket (LEFT, RoHS)
    • 1 U bracket (LEFT, RoHS)
    • CD (User manual, Programming manual)
    • Input terminal cover
    • Output terminal cover
    • Power cord (10 A) provided for certain regions only
    • GW Instek Instek PSU 400-3.8 device
