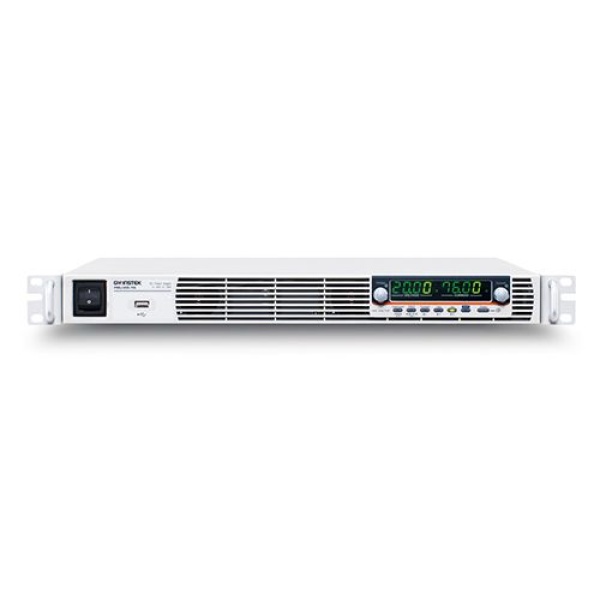

Single Channel Programmable Switching DC Power Supply GW Instek PSU 20-76

GW Instek's PSU-Series: The Ideal Single Channel Programmable Switching DC Power Supply

If you're looking for a reliable and versatile DC power supply, look no further than GW Instek's PSU-Series. The ten different models in this series offer rated voltages ranging from 6V to 600V, ensuring that you can find a power supply that fits your specific needs. The PSU-Series is designed to make it easy for you to conduct series and parallel connections, which can increase your total output power, total current, or total voltage.

How to use Single Channel Programmable Switching DC Power Supply GW Instek PSU 20-76?

The PSU-series is simple to use and provides a variety of features to help you get the most out of your DC power supply. The series offers two different connection modes: CC priority or CV priority. You can also adjust the slew rate for your output voltage or current based on your test requirements, with options for high speed priority or slew rate priority. And with a range of interface options, including USB, LAN, RS-232, and more, it's easy to connect the PSU-Series to your other test equipment.

Features of DC Power Supply GW Instek PSU 20-76

Rated voltages of 6V, 12.5V, 20V, 40V, 60V, 100V, 150V, 300V, 400V, and 600V

Output power ratings of 1200W to 1560W

CC or CV priority modes

Adjustable voltage and current rise and fall times

Series and parallel connection capabilities, with up to 2 units in series (models under 300V) or 4 units in parallel of the same model

High efficiency and power density

1U height and 19" rack mount size

Standard interfaces of USB, LAN, RS-232, RS-485, and analog control

Optional interfaces of GPIB and isolated analog interface (voltage control/current control)
