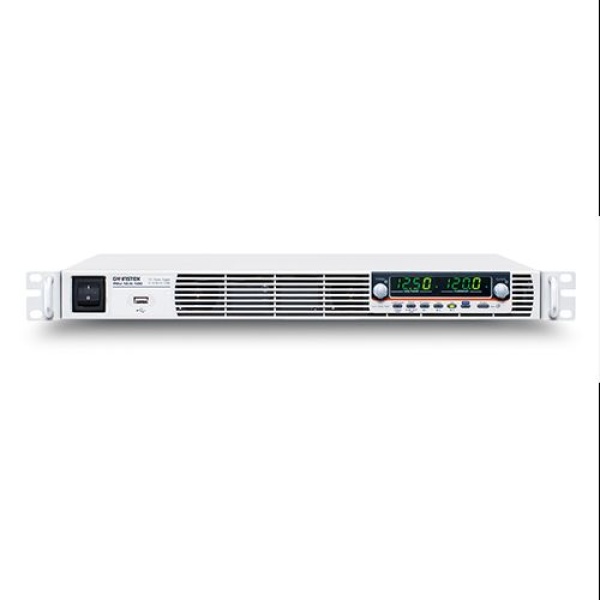

Single Channel Programmable Switching DC Power Supply GW Instek PSU 12.5-120

SKU: GW-PSU 12.5-120-EU-R1

The PSU-Series is a single output programmable switching DC power supply covering a power range up to 1560W. This Series of products include ten models with the combination from 6V to 600V rated voltages.

    Free shipping over 200 EUR
    Estimated shipping time 4-5 weeks

    Single Channel Programmable Switching DC Power Supply: Power Your Tests with Precision

    The PSU-Series is a range of single output programmable switching DC power supplies, offering a power range of up to 1560W. With ten models offering rated voltages of 6V to 600V, these products are designed to meet a wide range of voltage and current measurement requirements.

    How to use the GW Instek PSU 12.5-120?

    Utilizing multiple units of the PSU-series in series or parallel connections increases total output power, total current or total voltage. The PSU-series allows for the adjustment of CC priority or CV priority, with two kinds of slew rate settings for output voltage or current: high speed priority and slew rate priority. This allows for maximum control and customization, making it ideal for motor tests and other demanding applications.

    Features of the GW Instek PSU 12.5-120:

  • Wide voltage and current output ranges
  • Series/Parallel connection capabilities
  • CC/CV priority and adjustable voltage/current rise and fall time
  • High efficiency and high power density
  • USB, LAN, RS-232, RS-485, and analog control interfaces, with optional GPIB and isolated analog interface
  • 1U height and 19” rack mount size
  • Power up your tests with precision using the GW Instek PSU 12.5-120, the programmable DC power supply that delivers results.

    Product information
    Product name Single Channel Programmable Switching DC Power Supply GW Instek PSU 12.5-120
    Brand GW Instek
    Dimensions and Weight
    Dimensions (W x H x D) 43.6 x 423 x 447.2 mm (1,7 x 16,7 x 17,6 in)
    Weight 8.7 kg (19,2 lbs)
    • 1 U handle (RoHS)
    • Analog connector plug kit
    • 1 U bracket (LEFT, RoHS)
    • 1 U bracket (LEFT, RoHS)
    • CD (User manual, Programming manual)
    • Input terminal cover
    • Output terminal M8 bolt set
    • Output terminal cover
    • Power cord (10 A) provided for certain regions only
    • GW Instek Instek PSU 12.5-120 device
