Short Circuit Loop Impedance Meter Sonel MZC-310S
SKU: SL-MZC-310S-EU-R1
MZC-310S is a lightweight high-current fault loop impedance meter.
Free shipping over 200 EUR
Estimated shipping time 3-4 weeks
Estimated shipping time 3-4 weeks

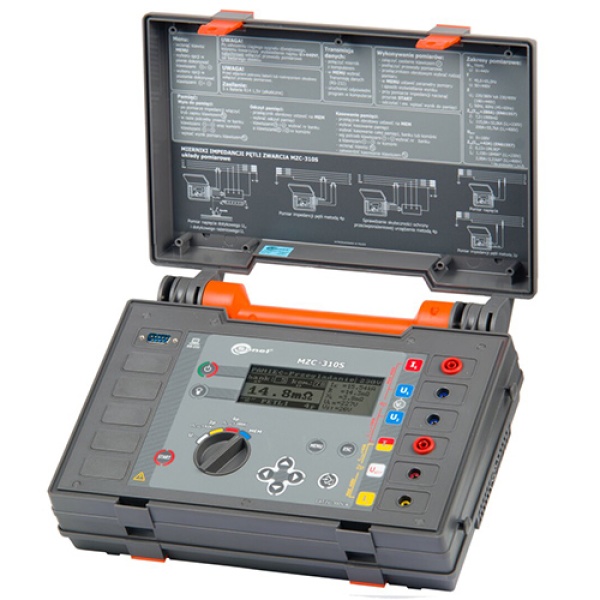

The Sonel MZC-310S is one of the most technically advanced short-circuit loop impedance meters available on the market. The device can measure short-circuit loop impedance in consumer and distribution networks protected with high-current circuit breakers. Additionally, the shock and contact voltages can be measured at the same time.
How to use Impedance Meter Sonel MZC-310S?

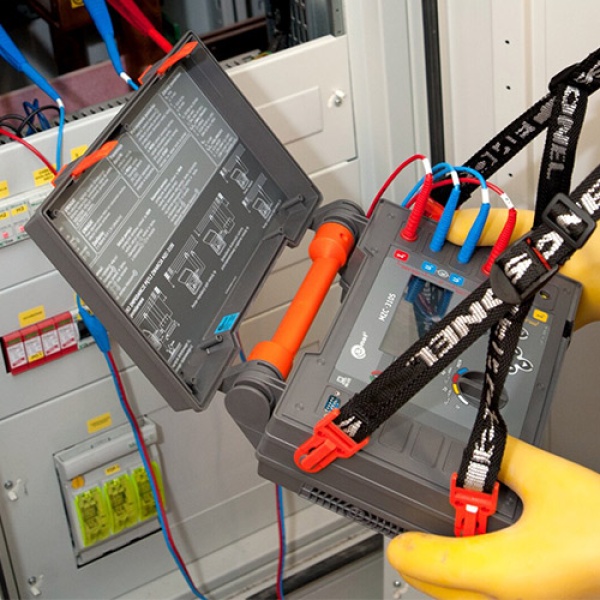

It has user-friendly interface with intuitive controls. Simply connect the test leads to the appropriate electrical points and the meter will automatically perform the necessary measurements. Where the condition for automatic power off cannot be satisfied, the facility may be authorized to operate on the basis of the voltage criterion. The application of the four-wire method and the flow of the measuring current in the 150/280 A pulse determine the high precision of the performed test. This single device hides a multitude of measurement capabilities, making it appreciated by specialists in many fields. The meter complies with the requirements specified in the EN 61557 standard.Features of Impedance Meter Sonel MZC-310S
Additional features
Reaching the areas unattainable to others
In the direct vicinity of transformers or in transformer stations, where the circuits are equipped with high current protection (fuse-links with the rating of several hundred amperes, motor circuit breakers), fault currents may reach several hundreds of kilo-amps. Measurement of fault loop impedance in such networks requires a high-current meter, which is capable of measuring ZS values at the level of single milliohms. Our patented technical solution, which uses components not available in the commercial offer (unique fault resistor), enables us to offer the meter with perfect performance in such demanding conditions.Unique features of the device
Since other commercially available fault loop impedance meters perform the measurements asymmetrically, using half-wave current, the Sonel MZC-310S introduces the transitional constant and DC constant, which does not always result in a linear behavior of the transformer during the tests. This affects the accuracy of the results. MZC-310S applies symmetrical current for measurements, which means that it uses the full wave - thanks to the advanced design of the measuring system and fault circuit.Applications of Impedance Meter Sonel MZC-310S

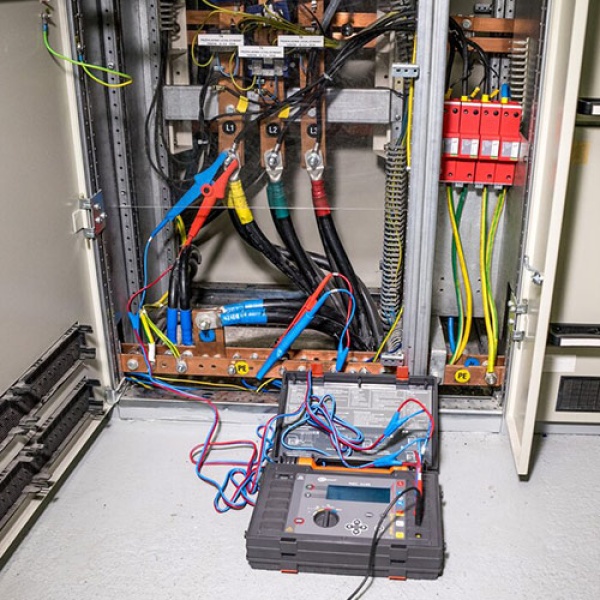

MZC-310S can be used for measurements in low voltage systems, where the prospective fault current may reach 55.7 kA (measured according to EN 61557). The lightweight and flexibility of the device make it perfect for tests and measurements in large and complex manufacturing plants.Product information | |
---|---|
Product name | Short Circuit Loop Impedance Meter Sonel MZC-310S |
Brand | Sonel |
Voltage | |
Measurement range | 0 V - 440 V |
Display range | 0 V - 440 V |
Resolution | 1 V |
Accuracy ±(% m.v. + digits) | ±(2 % m.v. + 2 digits) |
Frequency | |
Measurement range | 45.0 Hz - 65.0 Hz |
Display range | 45.0 Hz - 65.0 Hz |
Resolution | 0.1 Hz |
Accuracy ±(% m.v. + digits) | ±(0.1 % m.v. + 1 digit) |
Short-circuit loop parameters: 4p method - high current measurement | |
Maximum current | 280 A |
Measurement range | 7.2 mΩ - 1 999 mΩ |
Display range | 0.0 mΩ - 1 999 mΩ |
Resolution | from 0.1 mΩ |
Accuracy ±(% m.v. + digits) | ±(2 % m.v. + 2 mΩ) |
Short-circuit loop parameters: 2p method - standard current measurement | |
Maximum current | 42 A |
Measurement range | from 0.13 Ω - 199.9 Ω |
Display range | 0.00 Ω - 199.9 Ω |
Resolution | from 0.01 Ω |
Accuracy ±(% m.v. + digits) | from ±(2 % m.v. + 3 digits) |
Short-circuit current readings: 4p method - high current measurement | |
Network voltage | 230 V, 400 V |
Measurement range | up to 115.0 A - 55.7 kA |
Display range | 115.0 A - 400 kA |
Resolution | from 0.1 A |
Accuracy ±(% m.v. + digits) | Calculated on the basis of error for fault loop |
Short-circuit current readings: 2p method - standard current measurement | |
Measurement range | from 1.150 A - 1 607 A |
Display range | 1.150 A - 40.0 kA |
Resolution | from 0.001 A |
Accuracy ±(% m.v. + digits) | Calculated on the basis of error for fault loop |
Touch and shock voltage: 4p method - high current measurement | |
Measurement range | 0 V - 100 V |
Display range | 0 V - 100 V |
Resolution | 1 V |
Accuracy ±(% m.v. + digits) | ±(10 % m.v. + 2 digits) |
Environmental Conditions | |
Measuring category acc. to EN 61010 | IV 300 V |
Ingress protection | IP20 |
Type of insulation according to EN 61010-1 and EN 61557 | double |
Operating temperature | 0 - +40 °C |
Storage temperature | -20 - +60 °C |
Humidity | 20 - 90 % |
Nominal temperature | +20 - +25 °C |
Reference humidity | 40 % - 60 % |
Power supply | 5x LR14 alkaline battery 1.5 V |
Applicable Standards | |
Quality standard – development, design and production | ISO 9001 |
EMC (emission for industrial environment) | EN 61326-1, EN 61326-2-2 |
Data Storage | |
Internal memory | Memory of measurement results - 990 results |
Computer Interface | |
Data transmission | RS-232 |
Dimensions and Weight | |
Dimensions (W x H x D) | 222 x 295 x 95 mm (8,7 x 11,6 x 3,7 in) |
Weight | 2.2 kg (4,9 lbs) |
- Factory calibration certificate
- L-1 Carrying case
- K-03 Crocodile clip, black, 1 kV, 32 A (4pcs)
- K-06 Kelvin clamp, 1 kV, 25 A (2pcs)
- Hanging straps
- Doble-wire test lead 3 m CAT III/1000V CAT IV/600V (12 A / 32 A) U1/I1
- Doble-wire test lead 3 m CAT III/1000V CAT IV/600V (12 A / 32 A) U2/I2
- Test lead 1.2 m CAT III/1000V CAT IV/600V (banana plugs) black
- Test lead 1.2 m CAT III/1000V CAT IV/600V (banana plugs) yellow
- RS-232 serial transmission cable
- Pin probe CAT III/1000V CAT IV/600V (banana socket) black
- High-current pin probe 1 kV (banana sockets) (2pcs)
- Pin probe CAT III/1000V CAT IV/600V (banana socket) yellow
- Short Circuit Loop Impedance Meter MZC-310S
