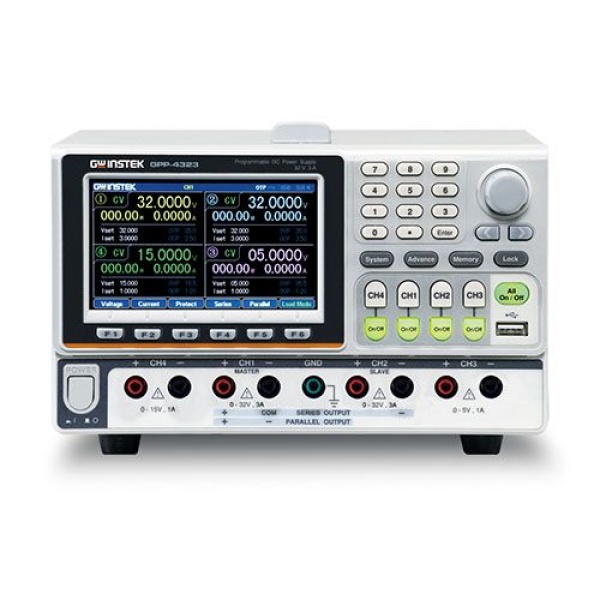

Programmable Linear D.C. Power Supply GW Instek GPP-4323
SKU: GW-GPP-4323-EU-R1; EAN:4713008672549
Multi-Output Programmable D.C. Power Supply
- Four-channel output
- 4.3”TFT LCD Display
- Supports Setting Value, Measurement Value and Output Waveform Display
- Load Function (CC, CV, CR Mode)
- Setting Resolution: 1mV / 0.1mA; Read Back Resolution: 0.1mV / 0.1mA
- Low Ripple Noise: ≦350uVrms/ ≦2mArms
- Transient Response Time: ≦50µS
Free shipping over 200 EUR
Estimated shipping time 4-5 weeks
Estimated shipping time 4-5 weeks
Programmable Linear D.C. Power Supply GW Instek GPP-4323: The Importance of Precise Power Supply
Precise power supply is crucial for a wide range of applications, including research, production testing, and field verification. Whether you're working in an industrial setting, a laboratory, or out in the field, you need a reliable power supply that can provide accurate and precise output. That's where the Programmable Linear D.C. Power Supply comes in.The GW Instek GPP-4323: The Best Solution for Precise Power Supply
The GW Instek GPP-4323 is a four-channel programmable DC power supply (CH1:032V/03A, CH2:032V/03A, CH3:05V/0 1A, CH4: 015V/01A) that offers a wide range of features to meet the needs of any application. This programmable DC power supply features high program resolution (1mV/0.1mA) and read back resolution (0.1mV/0.1mA), optimal low-ripple noise characteristics (≦350 µVrms), multi-output programmable DC power supply, four-channel output, 4.3”TFT LCD Display, supports setting value, measurement value and output waveform display, load function (CC, CV, CR Mode), setting resolution: 1mV / 0.1mA; read back resolution: 0.1mV / 0.1mA, low ripple noise: ≦350uVrms/ ≦2mArms and transient response time: ≦50µS.Why You Need the GW Instek GPP-4323
Power supply is a critical component in many electronic devices and systems. The GW Instek GPP-4323 is the perfect tool for this job. It is designed to provide precise and accurate output, and it can quickly and easily adjust the output voltage and current. This allows you to simulate various operating conditions and test the performance of your devices and systems.Using the GW Instek GPP-4323: The Best Way to Achieve Precise Power Supply
To use the GW Instek GPP-4323, simply connect it to the device you want to test and select the output voltage and current you need. The GPP-4323 will then provide you with the precise output you need. The multi-output programmable DC power supply, four-channel output, and load function (CC, CV, CR Mode) allows you to achieve the precise power supply needed for your application.In conclusion, the GW Instek GPP-4323 is an essential tool for anyone who needs precise power supply. With its high program resolution and read back resolution, it's the best choice for a wide range of applications. This programmable linear DC power supply is easy to use, and it will give you peace of mind knowing that your power supply is accurate and reliable.
Product information | |
---|---|
Product name | Programmable Linear D.C. Power Supply GW Instek GPP-4323 |
Brand | GW Instek |
Dimensions and Weight | |
Dimensions (W x H x D) | 145 x 213 x 312 mm (5,7 x 8,4 x 12,3 in) |
Weight | 7.5 kg (16,5 lbs) |
- GW Instek GPP-4323 device
- GTL-201A - Ground Lead, Banana to Banana, European Terminal, 200mm
- GTL-203A - Test Lead, Banana to Alligator, European Terminal, Max. Current 3A, 1000mm (2pcs)
- GTL-204A - Test Lead, Banana to Alligator, European Terminal, Max. Current 10A, 1000mm (2pcs)
- CD (User manual)
- Power cord
