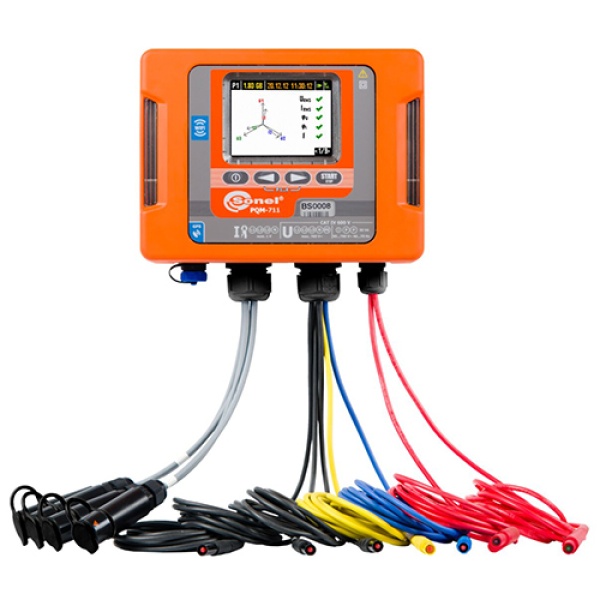

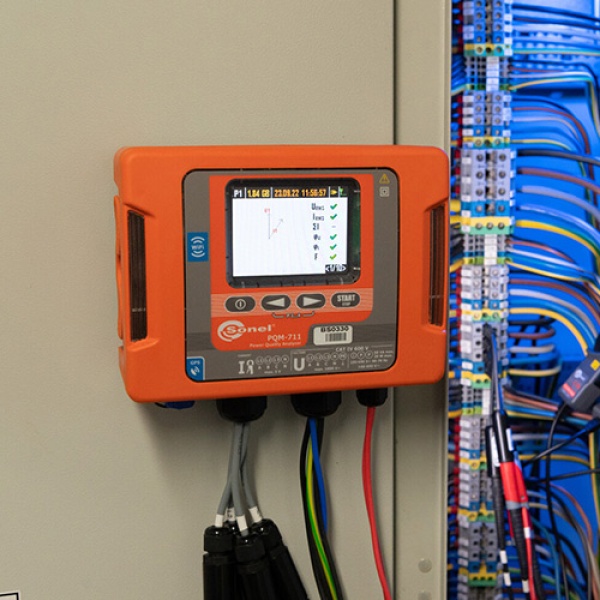

Power Quality Analyzer Sonel PQM-711
SKU: SL-PQM-711-EU-R1

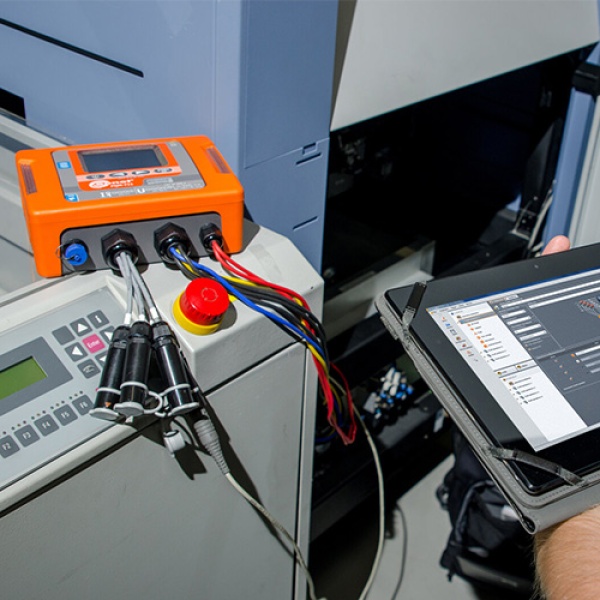

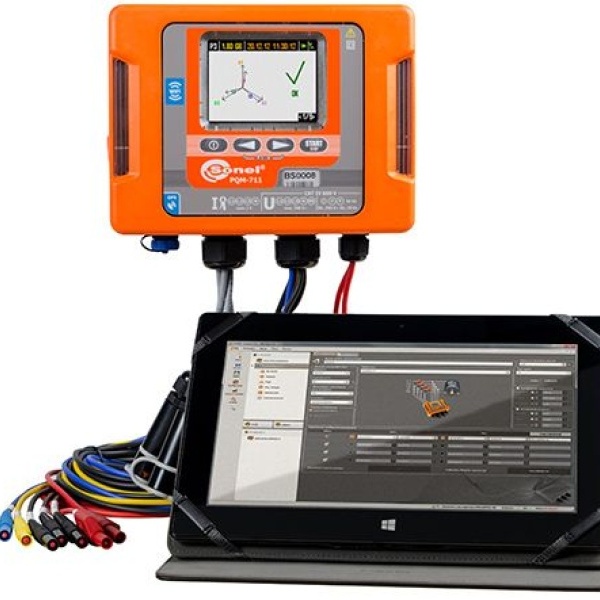

The included touch screen computing device is a virtual display allows to easy operate the analyzer.
- Remote control of the analyzer via Wi-Fi and the Sonel Analysis Mobile application
- Analyzer measures and records according to the IEC 61000-4-30 class A standard
- Power from the measured network.
- Measures voltages L1, L2, L3, N, PE, currents L1, L2, L3, N and much more.
- Equipped with a transient recorder with voltage range up to ±8000 V and a maximum sampling frequency of 10 MHz.
Free shipping over 200 EUR
Estimated shipping time 3-4 weeks
Estimated shipping time 3-4 weeks
The Power Quality Analyzer Sonel PQM-711 is a state-of-the-art device designed for professionals who need to measure and analyze the quality of power in various electrical systems. With its advanced features, it offers a wide range of capabilities that make it perfect for use in a variety of industries, including residential construction, industrial systems, and telecommunications networks.

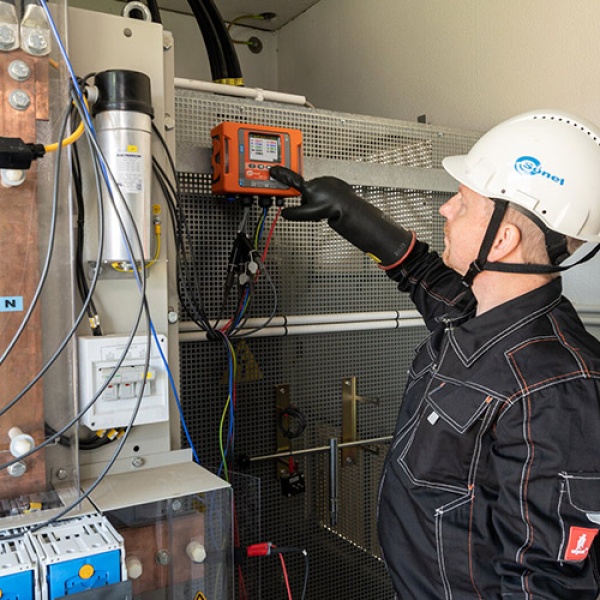

How to use Power Quality Analyzer Sonel PQM-711
The device is easy to operate with its touch screen computing device and built-in GSM modem for remote control and data transfer. It also has an anti-theft feature with SMS notifications in the event of a change in position, thanks to its built-in GPS receiver. Real-time clock synchronized to GPS protocol and remote control via the Sonel Analysis Mobile application.Features of Power Quality Analyzer Sonel PQM-711
| Product information | |
|---|---|
| Product name | Power Quality Analyzer Sonel PQM-711 |
| Brand | Sonel |
| Alternating voltage (TRMS) | |
| Measurement range | 0.0 - 1000.0 V or 0.0 - 760.0 V (depending on analyzer model) |
| Resolution | 4 significant digits |
| Accuracy | ±0.1 % Unom |
| Crest Factor - Voltage | |
| Measurement range | 1.00 - 10.00 (≤1.65 for voltage of 690 V) |
| Resolution | 0.01 |
| Accuracy | ±5 % |
| Crest Factor - Current | |
| Measurement range | 1.00 - 10.00 (≤3.6 for Inom) |
| Resolution | 0.01 |
| Accuracy | ±5 % |
| Alternating current (TRMS) | |
| Measurement range | depending on clamp |
| Resolution | 4 significant digits |
| Accuracy | ±0.1 % Inom (error does not account for clamp error) |
| Frequency | |
| Measurement range | 40.00 - 70.00 Hz |
| Resolution | 0.01 Hz |
| Accuracy | ±0.01 Hz |
| Active, reactive, apparent and distortion power | |
| Measurement range | depending on configuration (transducers, clamps) |
| Resolution | 4 significant digits |
| Accuracy | depending on configuration (transducers, clamps) |
| Active, reactive and apparent energy | |
| Measurement range | depending on configuration (transducers, clamps) |
| Resolution | 4 significant digits |
| Accuracy | as power error |
| cosφ and power factor (PF) | |
| Measurement range | -1.00 - 1.00 |
| Resolution | 0.01 |
| Accuracy | ±0.03 |
| tanφ | |
| Measurement range | -10.00 - 10.00 |
| Resolution | 0.01 |
| Accuracy | depends on error of active and reactive power |
| Harmonics and interharmonics: Voltage | |
| Measurement range | DC, 1 - 50 |
| Resolution | as for alternating voltage True RMS |
| Accuracy | ±0.05 % Unom for m.v.< 1 % Unom ±5 % m.v. for m.v. ≥ 1 % U |
| Harmonics and interharmonics: Current | |
| Measurement range | DC, 1 - 50 |
| Resolution | as for alternating current True RMS |
| Accuracy | ±0.15 % Inom for m.v. < 3 % Inom ±5 % m.v. for m.v. ≥ 3 % I |
| THD: Voltage | |
| Measurement range | 0.0 - 100.0 % (relative to RMS value) |
| Resolution | 0.1 % |
| Accuracy | ±5 % |
| THD: Current | |
| Measurement range | 0.0 - 100.0 % (relative to RMS value) |
| Resolution | 0.1 % |
| Accuracy | ±5 % |
| Active and reactive power of harmonics | |
| Measurement range | depending on configuration (transducers, clamps) |
| Resolution | depends on minimum current and voltage values |
| Accuracy | - |
| Angle between current and voltage harmonics | |
| Measurement range | -180.0 - +180.0 ° |
| Resolution | 0.1 ° |
| Accuracy | ±(n x 1 °) |
| K-Factor | |
| Measurement range | 1.0 - 50.0 |
| Resolution | 0.1 |
| Accuracy | ±10 % |
| Flicker index | |
| Measurement range | 0.20 - 10.00 |
| Resolution | 0.01 |
| Accuracy | ±5 % |
| Unbalance factor: Voltage and current | |
| Measurement range | 0.0 - 20.0 % |
| Resolution | 0.001 |
| Accuracy | ±0.15 % (absolute error) |
| Measurement of control signals: Voltage | |
| Measurement range | up to 15 % Unom at 5.00 - 3000.00 Hz |
| Resolution | 4 significant digits |
| Accuracy | unspecified for <1 % Unom ±0.15 % for 1 - 3 % Unom ±5 % for 3 - 15 % Unom |
| Measurement of transients: Voltage | |
| Measurement range | ±8000 V |
| Resolution | 4 significant digits |
| Accuracy | ±(5 % + 25 V) |
| Applicable Standards | |
| Reports in compliance with | EN 50160-2010, IEC 62586-1-2017, IEC 61000-4-30, IEC 61000-4-15, IEC 61000-4-7, IEC 61010-1, IEC 61010-2, EN 55032-2015, IEC 61000-6-5-2015, ISO 9001 |
| Clamps | |
| Compatible clamps | C-4A, C-5A, C-6A, C-7A, F-1A1, F-1A, F-1A6, F-2A1, F-2A, F-2A6, F-3A1, F-3A, F-3A6, F-2AHD, F-3AHD |
| Environmental Conditions: | |
| Ingress protection | IP 65 |
| Operating temperature | -20 °C - +55 °C |
| Storage temperature | -30 °C - +60 °C |
| Humidity | 10 - 90 % with possible condensation |
| Nominal temperature | 0 °C - +40 °C |
| Reference humidity | 40 - 60 % |
| Data Storage | |
| Memory | Built-in memory card 8 GB (as standard), option of extending up to 32 GB |
| Computer Interface | |
| Display | Color LCD TFT, 320x240 pixels, diagonal 3.5" |
| Communication | USB, Wi-Fi, GSM |
| Dimensions and Weight | |
| Dimensions (W x H x D) | 180 x 200 x 77 mm (7,1 x 7,9 x 3,0 in) |
| Weight | 1.6 kg (3,5 lbs) |
- AC-16 Line splitter
- AZ-3 Power supply adapter (mains plug/banana sockets)
- Voltage adapter for DIN rail terminal blocks with M4/M6 thread (5 pcs.)
- Magnetic voltage adapter (set - 4 pcs)
- AKU-11 Li-ion battery 4.6 V 6.9 Ah
- Factory calibration certificate
- K-01 Crocodile clip, black, 1 kV, 20 A (3pcs)
- K-02 Crocodile clip, blue, 1 kV, 20 A
- K-02 Crocodile clip, red, 1 kV, 20 A (2pcs)
- K-02 Crocodile clip, yellow, 1 kV, 20 A
- Strap for mounting on the pole (set)
- Test lead markers L1, L2, L3, N (set of 8 pcs)
- DIN rail mounting bracket with positioning catches
- Plates for pole mounting (2pcs)
- Sonel pendrive
- Sonel Analysis 4 - Program for handling PQM series power quality analyzers and MPI-540
- USB cable
- XL-2 Hard carrying case
- Power Quality Analyzer PQM-711
Sonel Analysis software - WAPROANALIZA4
