Power Quality Analyzer Sonel PQM-700
SKU: SL-PQM-700-EU-R1
Analyzer measures and records according to the IEC 61000-4-30 class S standard
- Internal rechargeable battery, autonomy of the meter (min. 6 hours).
- Measures voltages L1, L2, L3, N, currents L1, L2, L3, N and much more.
Free shipping over 200 EUR
Estimated shipping time 3-4 weeks
Estimated shipping time 3-4 weeks

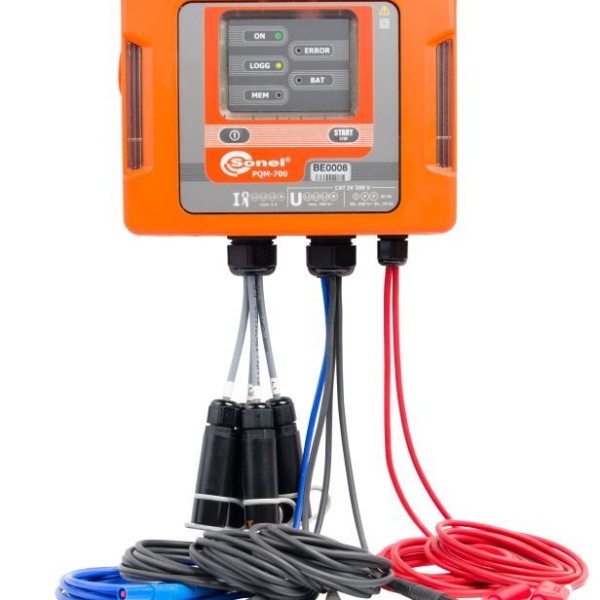

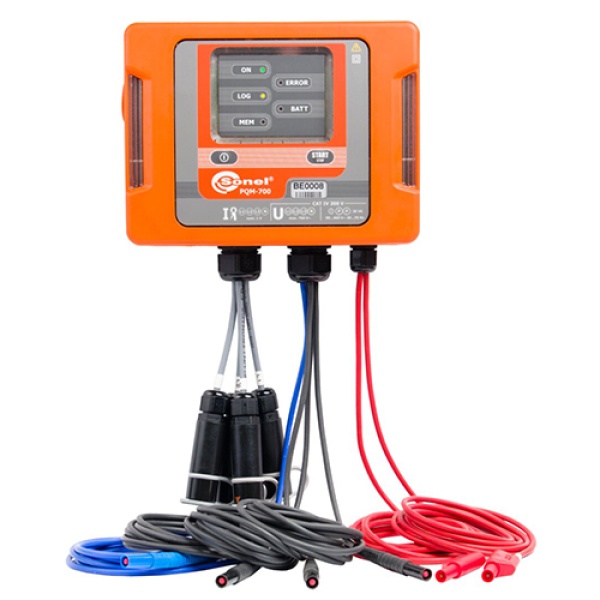

The Sonel PQM-700 Power Quality Analyzer is the ultimate tool for measuring, analyzing, and recording data on the quality of electricity and power network parameters. With its 4 current inputs and physical measurement of current in the neutral conductor, the PQM-700 is capable of registering up to 1100 parameters, including average, maximum, minimum, and instantaneous values.
How to use Power Quality Analyzer Sonel PQM-700

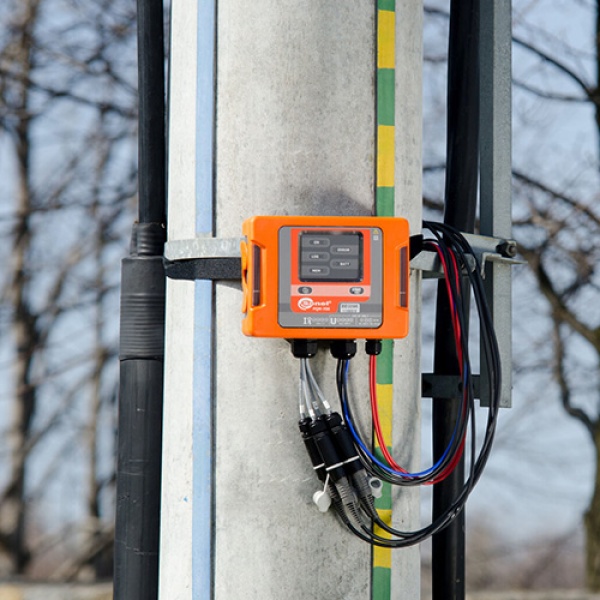

The PQM-700 is simple to use, and is designed to provide accurate and reliable data. The built-in heater allows for stable operation at low temperatures down to -20ºC, while the internal rechargeable battery offers an autonomy of the meter of at least 6 hours. The IP65 ingress protection allows for use in harsh weather conditions such as rain, snow, and high humidity.Features of Power Quality Analyzer Sonel PQM-700
The PQM-700 is an advanced tool that is packed with features and is capable of analyzing a wide range of mains and direct current systems. With its ability to measure and analyze a wide range of parameters, the PQM-700 is a must-have tool for anyone in the power industry.
For more information check out product datasheet within Documents tab.
| Product information | |
|---|---|
| Product name | Power Quality Analyzer Sonel PQM-700 |
| Brand | Sonel |
| Alternating voltage (TRMS) | |
| Measurement range | 0.0 - 760.0 V |
| Resolution | 4 significant digits |
| Accuracy | ±0.5 % Unom |
| Crest Factor - Voltage | |
| Measurement range | 1.00 - 10.00 (≤1.65 for voltage of 690 V) |
| Resolution | 0.01 |
| Accuracy | ±5 % |
| Crest Factor - Current | |
| Measurement range | 1.00 - 10.00 (≤3.6 for Inom) |
| Resolution | 0.01 |
| Accuracy | ±5 % |
| Alternating current (TRMS) | |
| Measurement range | depending on clamp |
| Resolution | 4 significant digits |
| Accuracy | ±0.2 % Inom (error does not account for clamp error) |
| Frequency | |
| Measurement range | 40.00 - 70.00 Hz |
| Resolution | 0.01 Hz |
| Accuracy | ±0.05 Hz |
| Active, reactive, apparent and distortion power | |
| Measurement range | depending on configuration (transducers, clamps) |
| Resolution | 4 significant digits |
| Accuracy | depending on configuration (transducers, clamps) |
| Active, reactive and apparent energy | |
| Measurement range | depending on configuration (transducers, clamps) |
| Resolution | 4 significant digits |
| Accuracy | as power error |
| cosφ and power factor (PF) | |
| Measurement range | 0.00 - 1.00 |
| Resolution | 0.01 |
| Accuracy | ±0.03 |
| tanφ | |
| Measurement range | 0.00 - 10.00 |
| Resolution | 0.01 |
| Accuracy | depends on error of active and reactive power |
| Harmonics and interharmonics: Voltage | |
| Measurement range | DC, 1 - 40 |
| Resolution | as for alternating voltage True RMS |
| Accuracy | ±0.15 % Unom for m.v.< 3 % Unom ±5 % m.v. for m.v. ≥ 3 % Unom |
| Harmonics and interharmonics: Current | |
| Measurement range | DC, 1 - 40 |
| Resolution | as for alternating current True RMS |
| Accuracy | ±0.5 % Inom for m.v. < 10 % Inom ±5 % m.v. for m.v. ≥ 10 % Inom |
| THD: Voltage | |
| Measurement range | 0.0 - 100.0 % (relative to RMS value) |
| Resolution | 0.1 % |
| Accuracy | ±5 % |
| THD: Current | |
| Measurement range | 0.0 - 100.0 % (relative to RMS value) |
| Resolution | 0.1 % |
| Accuracy | ±5 % |
| Flicker index | |
| Measurement range | 0.40 - 10.00 |
| Resolution | 0.01 |
| Accuracy | ±10 % |
| Unbalance factor: Voltage and current | |
| Measurement range | 0.0 - 10.0 % |
| Resolution | 0.1 % |
| Accuracy | ±0.3 % (absolute error) |
| Measurement of control signals | |
| Measurement range | depending on clamp |
| Resolution | 0.01 % Inom |
| Accuracy | ±4% m.v. for m.v. ≥ 10% Inom |
| ±4% Inom for m.v. < 10% Inom | |
| (RMS1/2) | |
| Applicable Standards | |
| Reports in compliance with | EN 50160, IEC 61000-4-30 Class S, IEC 61000-4-15, IEC 61000-4-7, IEC 61010, IEC 61326, ISO 9001 |
| Clamps | |
| Compatible clamps | C-4A, C-5A, C-6A, C-7A, F-1A1, F-1A, F-1A6, F-2A1, F-2A, F-2A6, F-3A1, F-3A, F-3A6, F-2AHD, F-3AHD |
| Environmental Conditions: | |
| Ingress protection | IP 65 (not evaluated by UL) |
| Operating temperature | -20 °C - +55 °C |
| Storage temperature | -30 °C - +60 °C |
| Humidity | 10 - 90 % with possible condensation |
| Nominal temperature | 23±2 °C |
| Reference humidity | 40 - 60 % |
| Data Storage | |
| Memory | removable microSD memory card (2 GB as standard) option of extending up to 32 GB (optional) |
| Computer Interface | |
| Display | 5 LEDs indicating operational status |
| Communication | USB |
| Dimensions and Weight | |
| Dimensions (W x H x D) | 180 x 200 x 77 mm (7,1 x 7,9 x 3,0 in) |
| Weight | 1.6 kg (3,5 lbs) |
- AZ-3 Power supply adapter (mains plug/banana sockets)
- Magnetic voltage adapter (set - 4 pcs)
- AKU-11 Li-ion battery 4.6 V 6.9 Ah
- Factory calibration certificate
- L-5 Carrying case
- K-01 Crocodile clip, black, 1 kV, 20 A (3pcs)
- K-02 Crocodile clip, blue, 1 kV, 20 A
- K-02 Crocodile clip, red, 1 kV, 20 A (2pcs)
- Strap for mounting on the pole (set)
- Test lead markers L1, L2, L3, N (set of 8 pcs)
- DIN rail mounting bracket with positioning catches
- Plates for pole mounting (3pcs)
- Sonel pendrive
- Sonel Analysis 4 - Program for handling PQM series power quality analyzers and MPI-540
- USB cable
- Power Quality Analyzer PQM-700
Sonel Analysis software - WAPROANALIZA4
