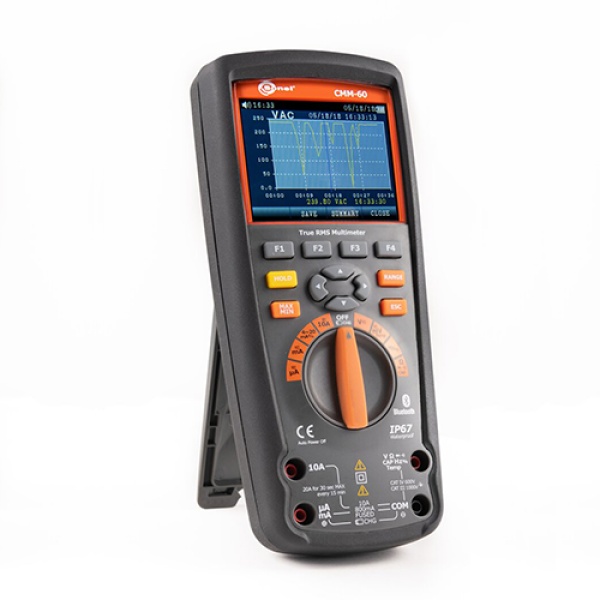

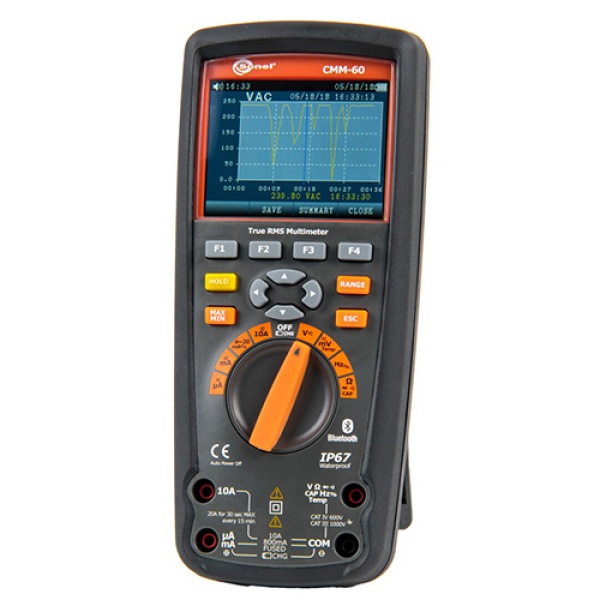

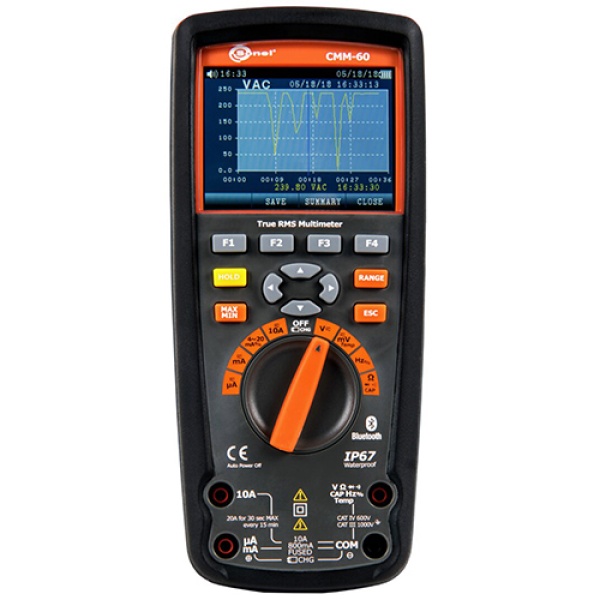

Multimeter Sonel CMM-60
SKU: SL-CMM-60-EU-R1
Free shipping over 200 EUR
Estimated shipping time 3-4 weeks
Estimated shipping time 3-4 weeks
| Product information | |
|---|---|
| Product name | Multimeter Sonel CMM-60 |
| Brand | Sonel |
| DC voltage | |
| Measurement range | 50 mV / 500 mV / 5 V / 50 V / 500 V / 1000 V |
| Resolution | from 0,001 mV |
| Accuracy ±(% m.v. + digits) | from ±(0,025 % m.v.+ 5 digits) |
| AC voltage (TRMS) | |
| Measurement range | 50 mV / 500 mV / 5 V / 50 V / 500 V / 1000 V |
| Resolution | from 0,001 mV |
| Accuracy ±(% m.v. + digits) | from ±(0,3 % m.v. + 25 digits) |
| DC current | |
| Measurement range | 500 μA / 5000 μA / 50 mA / 500 mA / 10 A |
| Resolution | from 0,01 μA |
| Accuracy ±(% m.v. + digits) | from ±(0,1 % m.v.+ 20 digits) |
| AC current (TRMS) | |
| Measurement range | 500 μA / 5000 μA / 50 mA / 500 mA /10 A |
| Resolution | from 0,01 μA |
| Accuracy ±(% m.v. + digits) | from ±(0,6 % m.v. + 25 digits) |
| Resistance | |
| Measurement range | 50 Ω / 500 Ω / 5 kΩ / 50 kΩ / 500 kΩ / 5 MΩ / 50 MΩ |
| Resolution | from 0,001 Ω |
| Accuracy ±(% m.v. + digits) | from ±(0,05 % m.v. + 10 digits) |
| Capacity | |
| Measurement range | 5 nF / 50 nF / 500 nF / 5 μF/ 50 μF / 500 μF / 10 mF |
| Resolution | from 0,001 nF |
| Accuracy ±(% m.v. + digits) | from ±(2 % m.v. + 40 digits) |
| Frequency | |
| Measurement range | 50 Hz / 500 Hz / 5 kHz / 50 kHz / 500 kHz / 5 MHz / 10 MHz |
| Resolution | from 0,001 Hz |
| Accuracy ±(% m.v. + digits) | ±(0,01 % m.v.+ 10 digits) |
| Duty cycle | |
| Measurement range | 0,10 – 99.90 % |
| Resolution | 0,01 % |
| Accuracy ±(% m.v. + digits) | ±(1.2 % m.v.+ 2 digits) |
| 4-20 mA % current measurement | |
| Measurement range | -25.00 – 125.00 % |
| Resolution | 0,01 % |
| Accuracy ±(% m.v. + digits) | ±50 digits |
| Temperature measurement (°C) | |
| Measurement range | -50,0 – +1000,0 °C |
| Resolution | 0,1 °C |
| Accuracy ±(% m.v. + digits) | ±(1.0 % m.v. + 2.5 °C) |
| Temperature measurement (°F) | |
| Measurement range | -58.0 – +1832.0°F |
| Resolution | 0,1°F |
| Accuracy ±(% m.v. + digits) | ±(1.0 % m.v. + 4.5 °F) |
| Features | |
| Counting | 50 000 digits |
| Automatic range selection | Yes |
| Manual range selection | Yes |
| The HOLD function | Yes |
| Relative measurement | Yes |
| MAX / MIN measurement | Yes |
| AVG measurement | Yes |
| Beeper - continuity buzzer | Yes |
| Diode test | Yes |
| Advanced features | |
| TRMS measurement | Yes |
| Frequency band for TRMS | 10 000 Hz |
| AC + DC measurement | Yes |
| Low-pass filter | Yes |
| dBV / dBm measurement | Yes |
| Peak HOLD function | Yes |
| Trend Capture function | Yes |
| Date and time of measurement | Yes |
| Battery indicator | Yes |
| Automatic shutdown function | Yes |
| Rechargeable battery | Yes |
| Environmental Conditions | |
| Measuring category acc. to EN 61010 | CAT IV 600 V / CAT III 1000 V |
| Ingress protection | IP67 |
| Operating temperature | +5 – +40°C | 41 – 104°F |
| Storage temperature | -20 – +60°C | -4 – 140°F |
| Humidity | up to 80 % at 31°C, with linear slope to 50 % at 40°C |
| Internal impedance | about 10 MΩ |
| Data Storage | |
| Internal memory | Measurements |
| Recorder | 10 000 points, sampling frequency |
| External memory | in mobile application |
| Computer Interface | |
| Type of display | 3.5” color TFT LCD 320 x 240 pixels |
| Dimensions and Weight | |
| Dimensions (W x H x D) | 97 x 220 x 588.7 mm (3,8 x 8,7 x 23,2 in) |
| Weight | 3420.8 kg (7 542,9 lbs) |

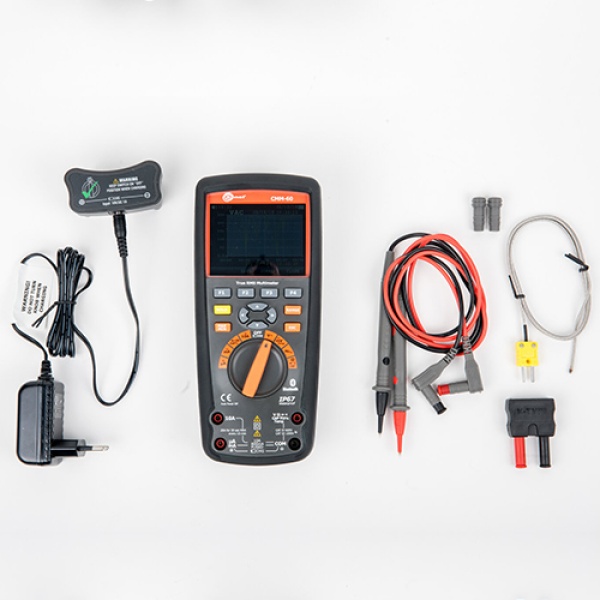

- CMM-RR radio transceiver for CMM-60
- CMM-60 charging Adapter
- Temperature probe type K adapter
- Li-Poly battery 7.4 V 2.4 Ah
- Factory calibration certificate
- Sonel CMM-60 Multimeter Software
- Test leads set for CMM (CAT IV, M)
- Type K temperature metal probe
- Power supply adapter for CMM-60 Z-21
