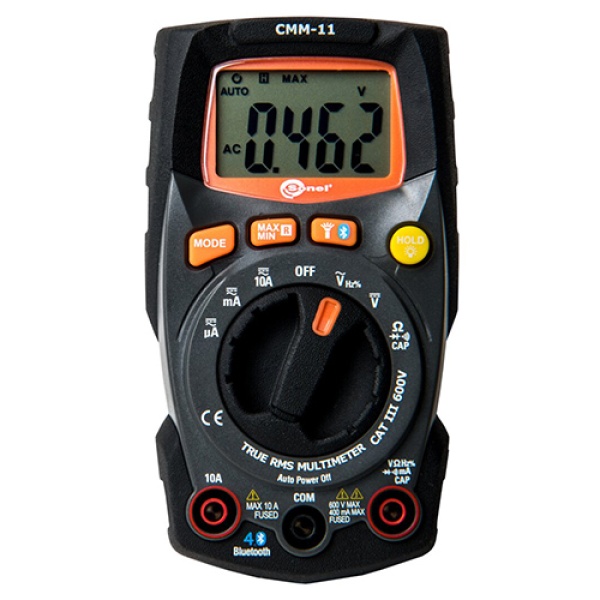

Multimeter Sonel CMM-11
SKU: SL-CMM-11-EU-R1
Free shipping over 200 EUR
Estimated shipping time 3-4 weeks
Estimated shipping time 3-4 weeks
| Product information | |
|---|---|
| Product name | Multimeter Sonel CMM-11 |
| Brand | Sonel |
| DC voltage | |
| Measurement range | up to 600 V |
| Resolution | from 0,001 V |
| Accuracy ±(% m.v. + digits) | from ±(1.0 % m.v. + 3 digits) |
| AC voltage | |
| Measurement range | up to 600 V |
| Resolution | from 0,001 V |
| Accuracy ±(% m.v. + digits) | from ±(1.0 % m.v. + 3 digits) |
| DC current | |
| Measurement range | up to 10 A |
| Resolution | from 0,1 μA |
| Accuracy ±(% m.v. + digits) | from ±(1.0 % m.v. + 3 digits) |
| AC current (TRMS) | |
| Measurement range | up to 10 A |
| Resolution | from 0,1 μA |
| Accuracy ±(% m.v. + digits) | from ±(1.0 % m.v. + 3 digits) |
| Resistance | |
| Measurement range | up to 40 MΩ |
| Resolution | from 0,1 Ω |
| Accuracy ±(% m.v. + digits) | from ±(1.0 % m.v. + 4 digits) |
| Capacity | |
| Measurement range | up to 4000 µF |
| Resolution | from 0,01 nF |
| Accuracy ±(% m.v. + digits) | from ±(3.0 % m.v. + 5 digits) |
| Frequency | |
| Measurement range | up to 99,99 kHz |
| Resolution | from 0,001 Hz |
| Accuracy ±(% m.v. + digits) | ±(1.0 % m.v. + 5 digits) |
| Duty cycle | |
| Measurement range | |
| Resolution | 0,1% |
| Accuracy ±(% m.v. + digits) | ±(1.2 % m.v. + 2 digits) |
| Features | |
| Counting | 4 000 digits |
| Automatic range selection | Yes |
| Manual range selection | Yes |
| The HOLD function | Yes |
| MAX / MIN measurement | Yes |
| TRMS measurement | Yes |
| Continuity | Yes |
| Diode test | Yes |
| Easy access to A / mA fuses | Yes / Yes |
| Automatic shutdown function | Yes |
| Battery indicator | Yes |
| Integrated flashlight | Yes |
| Beeper | Yes |
| Environmental Conditions | |
| Measuring category acc. to EN 61010 | CAT III 600 V |

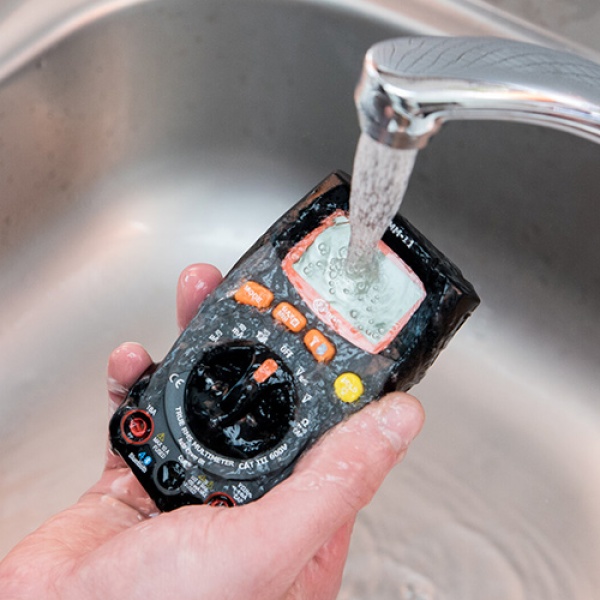

| Ingress protection | IP65 |
| Operating temperature | 5 – +40°C | 41 – 104°F |
| Storage temperature | -20 – +60°C | -4 – 140°F |
| Data Storage | |
| Memory | In mobile application |

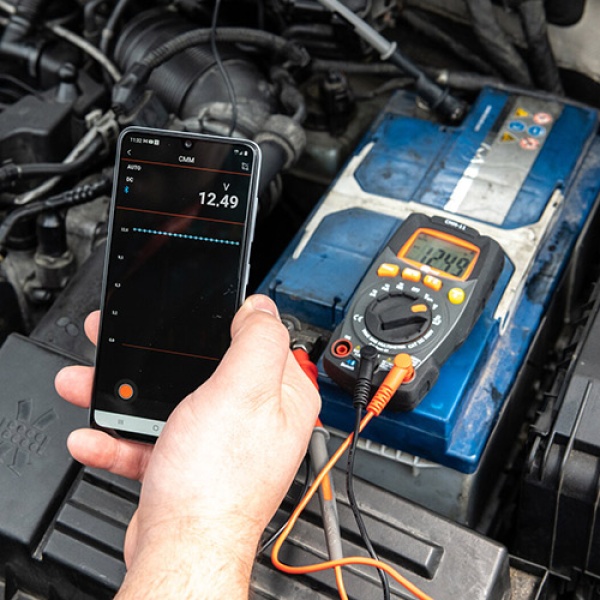

| Bluetooth communication | Yes |
| Computer Interface | |
| Type of display | segment-based |
| Display backlight | Yes |
| Dimensions and Weight | |
| Dimensions (W x H x D) | 67 x 121 x 354.8 mm (2,6 x 4,8 x 14,0 in) |
| Weight | - |
- Alkaline battery AAA LR03 (24A) 1.5 V (2pcs)
- Factory calibration certificate
- Test leads set for CMM (CAT IV, S)
