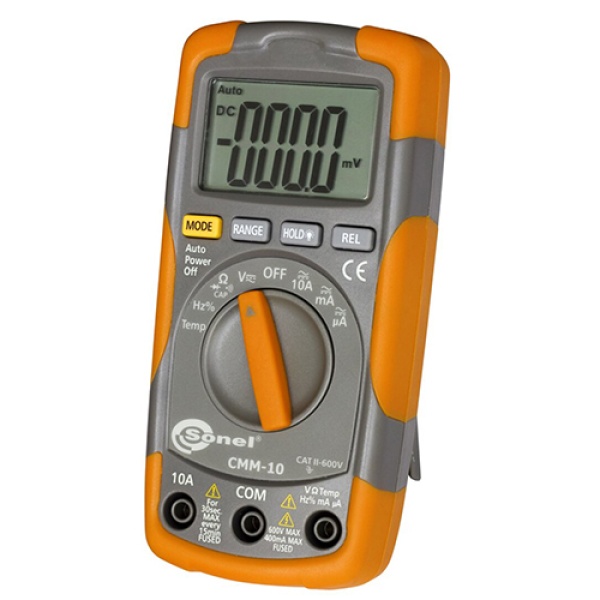

Multimeter Sonel CMM-10
SKU: SL-CMM-10-EU-R1
Free shipping over 200 EUR
Estimated shipping time 3-4 weeks
Estimated shipping time 3-4 weeks
| Product information | |
|---|---|
| Product name | Multimeter Sonel CMM-10 |
| Brand | Sonel |
| DC voltage | |
| Measurement range | up to 600 V |
| Resolution | from 0,1 mV |
| Accuracy ±(% m.v. + digits) | from ±(0.5 % m.v. + 2 digits) |
| AC voltage | |
| Measurement range | up to 600 V |
| Resolution | from 0,1 mV |
| Accuracy ±(% m.v. + digits) | from ±(1.2 % m.v. + 3 digits) |
| DC current | |
| Measurement range | up to 10 A |
| Resolution | from 0,1 μA |
| Accuracy ±(% m.v. + digits) | from ±(1.0 % m.v. + 3 digits) |
| AC current (TRMS) | |
| Measurement range | up to 10 A |
| Resolution | from 0,1 μA |
| Accuracy ±(% m.v. + digits) | from ±(1.5 % m.v. + 5 digits) |
| Resistance | |
| Measurement range | up to 40 MΩ |
| Resolution | from 0,1 Ω |
| Accuracy ±(% m.v. + digits) | from ±(1.0 % m.v. + 2 digits) |
| Capacity | |
| Measurement range | up to 100 µF |
| Resolution | from 0,01 nF |
| Accuracy ±(% m.v. + digits) | from ±(3.0 % m.v. + 5 digits) |
| Frequency | |
| Measurement range | up to 10 MHz |
| Resolution | from 0,001 Hz |
| Accuracy ±(% m.v. + digits) | from ±(1.2 % m.v. + 3 digits) |
| Duty cycle | |
| Measurement range | 0,1 - 99,9 % |
| Resolution | 0,1 % |
| Accuracy ±(% m.v. + digits) | ±(1,2 % m.v. + 2 digits) |
| Temperature measurement (°C) | |
| Measurement range | -20 - +760 °C |
| Resolution | 1 °C |
| Accuracy ±(% m.v. + digits) | ±(3 % m.v. + 5 °C) |
| Temperature measurement (°F) | |
| Measurement range | -4 - +1400 °F |
| Resolution | 1 °F |
| Accuracy ±(% m.v. + digits) | ±(3 % m.v. + 9 °F) |
| Features | |
| Counting | readout 5 000 with function indicators |
| Automatic range selection | Yes |
| Manual range selection | Yes |
| The HOLD function | Yes |
| Relative measurement | Yes |
| Continuity | Yes |
| Diode test | Yes |
| Easy access to A / mA fuses | Yes / Yes |
| Automatic shutdown function | Yes |
| Battery indicator | Yes |
| Beeper | Yes |
| Environmental Conditions | |
| Measuring category acc. to EN 61010 | CAT II 600 V |
| Ingress protection | IP40 |
| Operating temperature | 0 – +50°C | 32 – 122 °F |
| Storage temperature | -20 – +60°C | -4 – 140°F |
| Data Storage | |
| Memory | In mobile application |
| Bluetooth communication | Yes |
| Computer Interface | |
| Type of display | segment-based |
| Display backlight | Yes |
| Dimensions and Weight | |
| Dimensions (W x H x D) | 68 x 138 x 375.4 mm (2,7 x 5,4 x 14,8 in) |
| Weight | - |
- Temperature probe type K adapter
- Alkaline battery 6LR61 (1604A) 9 V
- Declaration of verification
- Test leads set for CMM/CMP
- Type K temperature probe
