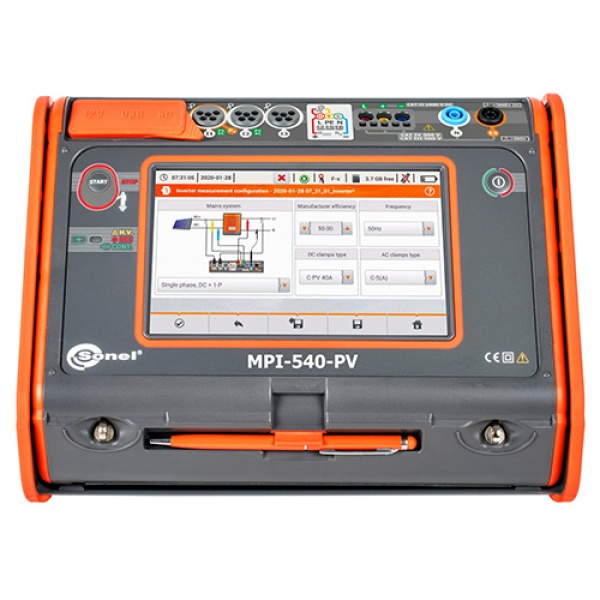

Multifunctional Electrical Installations Meter Sonel MPI-540-PV Solar

SKU: SL-MPI-540-EU-R3

Superior functionality multimeter – all in one: complex measurement installations meter and 3-phase power quality recorder.

  • Advanced power quality diagnostics
  • Measurement of all earthing and electric shock-related parameters with a single device
  • Measurement of photovoltaic installations according to EN 62446 standard
  • Comes with solar radiation and temperature meter Sonel IRM-1
  • 7 ‘’ touch screen enabling visualization of results
Free shipping over 200 EUR
Estimated shipping time 3-4 weeks
Add to wishlist Add to compare list

Sonel MPI-540-PV Solar is set of outstanding multimeter MPI-540PV and solar radiation and temperature meter Sonel IRM-1.
MPI-540-PV multimeter is intended to be used for power quality analysis and commissioning of electrical installations, both residential and commercial. Compared to the MPI-540 meter, it has an additional feature for measuring solar installations in compliance with EN 62446.

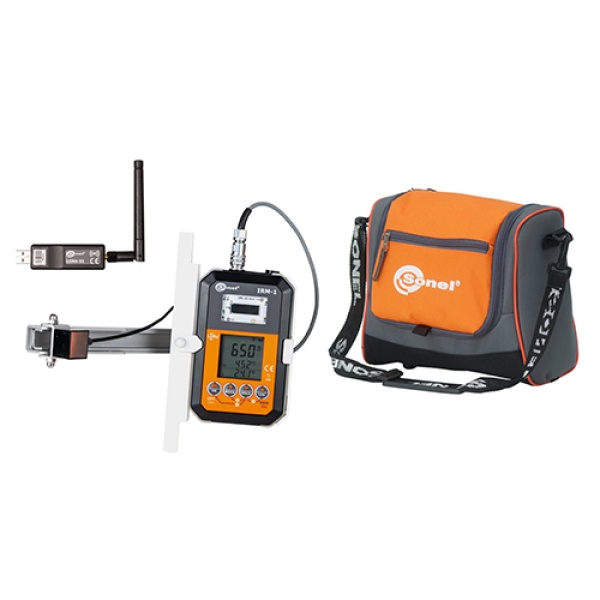

IRM-1 is a compact yet essential tool for PV system testing. It provides the data required to convert the results into STC conditions by monitoring solar radiation levels, panel and ambient temperatures.The instrument's built-in recorder, which has a memory of 5000 recordings, allows it to be utilized as a tool for designing PV plants and for troubleshooting panel shading issues.

Electrical installation testing and automated measurement

The MPI-540-PV allows for the safe testing of electrical infrastructure in residential, commercial, and industrial settings. The MPI-540 is ideal for use in high-voltage applications since it has a test voltage range of up to 5 kV and a measurement range of insulation resistance of up to 100 G. The installation's safety status can be assessed based on test results. And even the measurement itself may be automated and made simple by using:
  • Auto mode of residual current devices (RCD) tests
  • Auto measurements – freely configurable measuring sequences
  • AutoISO-1000C adapter for automatic insulation resistance test of 3-, 4- and 5-conductor cables, without switching
    • A multipurpose meter, the MPI-540 is suitable for a variety of uses. It can verify continuity, measure light intensity, run a phase sequence test, test RCD settings, measure fault loop impedance without triggering, measure earth resistance using four different ways (including measuring soil resistivity), and even test the motor rotation direction.

    Three-phase power quality analyzer

    The MPI-540 / MPI-540-PV multimeter for three-phase power quality analysis analyzes power quality parameters in Live mode and logs them for further study. Results can be displayed graphically in real-time when using live mode. The user can select from a variety of parameters, including voltage and current waveforms (oscilloscope), voltage and current time plots, a phasor graph, the display of various parameters in tabular form, and a spectrum graph of current and voltage harmonics, to monitor and plot in accordance with S class of standard EN 61000-4-30.

    Large touch screen

    The MPI-540-PV is equipped with a big touch screen (7'') with a resolution of 800 x 480 pixels to enable a clear view and reading of results. The display makes it easier to generate graphs and analyze data both during and after the testing process. Regardless of the weather, the interface is easily visible. Additionally, the accompanying stylus allows for the use of the device while wearing dielectric gloves.

    Sonel's MPI-540-PV is portable and has a long endurance

    The portable electricity meter is an essential tool for both experts and regular users and can be used both indoors and outdoors. The MPI-540-PV multimeter performs effectively in challenging environmental circumstances. Dust and water intrusion are guarded against by a specific IP51-rated housing. It resists mechanical damage, and because of its unique design, you can easily protect the touch screen by covering it with the meter's cover. In addition to shielding the actual device from harm, it also lets you carry and utilize the device in a variety of ways.

    Features

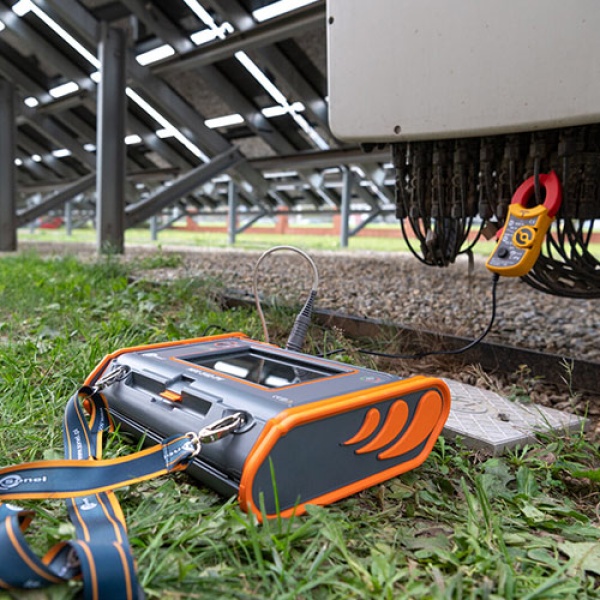

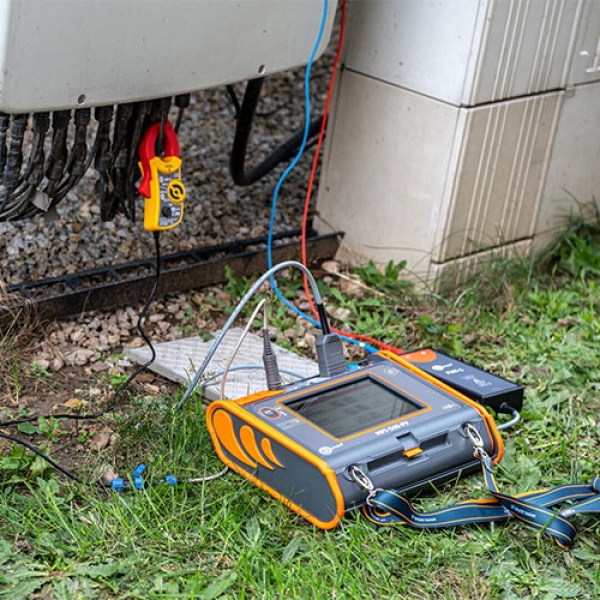

    The MPI-540-PV instrument can measure photovoltaic installations in accordance with the EN 62446 standard:
  • Continuity of protective and equipotential bondings
  • Earth resistance
  • Insulation resistance on the DC side
  • Open circuit voltage UOC
  • Short circuit current ISC
  • Work currents and powers on both DC and AC sides
  • Inverter efficiency

    • If you need measurement of solar radiation and temperature as well, check out MPI-540 PV Solar.

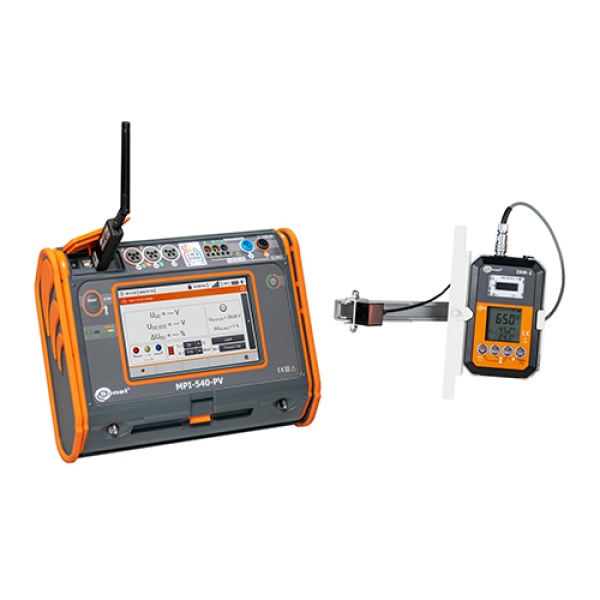

    The IRM-1 device measures solar radiation and temperature:

  • Solar radiation intensity (irradiance) in W/m2 or BTU/ft2h
  • PV panel temperature in °C or °F
  • Ambient temperature in °C or °F
  • Inclination angle of panels
  • Orientation of the panels with the built-in compass

    • MPI-540 / MPI-540-PV can record power quality parameters at 50/60 Hz in line with EN 61000-4-30 S class:

  • Voltage L1, L2, L3, – average values in the range up to 500 V
  • L1, L2, L3 currents, – average values, current measurement in the range up to 3 kA (depending on the current probes used)
  • Frequency in the range of 40 Hz – 70 Hz
  • Active (P), reactive (Q), and apparent (S) power
  • Power factor (PF), cosφ, tanφ
  • Harmonics (up to 40th for voltage and current)
  • Total harmonic distortion (THD) for current and voltage
  • Recording of events for current and voltage
  • Energy flow – 4 quadrants

    • MPI-540 / MPI-540-PV can be used for all measurements required for electrical system commissioning in compliance with applicable regulations:

  • Short circuit loop impedance (also in circuits secured with RCDs)
  • RCD parameters
  • Insulation resistance
  • Earth resistance (4 measurement methods + soil resistivity measurement)
  • Continuity of protective and equipotential bondings
  • Light intensity measurement
  • Phase sequence test
  • Motor rotation direction test

    • The Sonel Multifunctional Electrical Installations Meter MPI-540-PV Solar is an invaluable tool for any test and measurement need due to its versatility and professional-grade features. Order now to discover the astonishing power of this outstanding multimeter.

    Product information
    Product name Multifunctional Electrical Installations Meter Sonel MPI-540-PV Solar
    Brand Sonel
    Fault loop impedance ZL-PE, ZL-N, ZL-L
    Measurement range 0,13 - 1999 Ω
    Display range 0 - 1999 Ω
    Resolution from 0,001 Ω
    Accuracy ±(%m.v. + digits) ±(5% m.v. + 30 digits)
    Fault loop impedance ZL-PE in RCD mode
    Measurement range from 0,50 - 1999 Ω
    Display range 0 - 1999 Ω
    Resolution from 0,01 Ω
    Accuracy ±(%m.v. + digits) ±(6% m.v. + 5 digits)
    General and short-time delay RCD
    Measurement range 0 - 300 ms
    Display range 0 - 300 ms
    Resolution 1 ms
    Accuracy ±(%m.v. + digits) ±(2% m.v. + 2 digits)
    Selective RCD
    Measurement range 0 - 500 ms
    Display range 0 - 500 ms
    Resolution 1 ms
    Accuracy ±(%m.v. + digits) ±(2% m.v. + 2 digits)
    For sinusoidal residual current (AC type)
    Measurement range 3,3 mA - 1000 mA
    Display range 3,3 mA - 1000 mA
    Resolution from 0,1 mA
    Accuracy ±(%m.v. + digits) ±5 % IΔn
    For unidirectional residual current and unidirectional with the 6 mA DC bias (type A)
    Measurement range 3,5 mA - 700 mA
    Display range 3,5 mA - 700 mA
    Resolution from 0,1 mA
    Accuracy ±(%m.v. + digits) ±10 % IΔn
    For direct residual current (type B)
    Measurement range 2,0 mA - 1000 mA
    Display range 2,0 mA - 1000 mA
    Resolution from 0,1 mA
    Accuracy ±(%m.v. + digits) ±10 % IΔn
    Earth resistance - 3-pole method
    Measurement range from 0,50 Ω - 1,99 kΩ
    Display range 0 - 1,99 kΩ
    Resolution from 0,01 Ω
    Accuracy ±(%m.v. + digits) from ±(2 % m.v. + 3 digits)
    Earth resistance - 4-pole method
    Measurement range from 0,50 Ω - 1,99 kΩ
    Display range 0 - 1,99 kΩ
    Resolution from 0,01 Ω
    Accuracy ±(%m.v. + digits) from ±(2 % m.v. + 3 digits)
    Earth resistance - 3-pole + clamp method
    Measurement range 0,00 Ω - 1,99 kΩ
    Display range 0,00 Ω - 1,99 kΩ
    Resolution from 0,01 Ω
    Accuracy ±(%m.v. + digits) ±(2 % m.v. + 4 digits)
    Earth resistance - 2-clamp method
    Measurement range 0,00 Ω - 99,9 kΩ
    Display range 0,00 Ω - 99,9 kΩ
    Resolution from 0,01 Ω
    Accuracy ±(%m.v. + digits) from ±(10 % m.v. + 4 digits)
    Resistance-to-earth
    Measurement range 0,00 Ωm - 99,9 kΩm
    Display range 0,00 Ωm - 99,9 kΩm
    Resolution from 0,1 Ωm
    Accuracy ±(%m.v. + digits) Depending on accuracy
    of RE measurement
    Insulation resistance - Measuring voltage 50 V
    Measurement range 50 kΩ - 250 MΩ
    Display range 0 kΩ - 250 MΩ
    Resolution from 1 kΩ
    Accuracy ±(%m.v. + digits) from ±(3 % m.v. + 8 digits)
    Insulation resistance - Measuring voltage 100 V
    Measurement range 100 kΩ - 500 MΩ
    Display range 0 kΩ - 500 MΩ
    Resolution from 1 kΩ
    Accuracy ±(%m.v. + digits) from ±(3 % m.v. + 8 digits)
    Insulation resistance - Measuring voltage 250 V
    Measurement range 250 kΩ - 999 MΩ
    Display range 0 kΩ - 999 MΩ
    Resolution from 1 kΩ
    Accuracy ±(%m.v. + digits) from ±(3 % m.v. + 8 digits)
    Insulation resistance - Measuring voltage 500 V
    Measurement range 500 kΩ - 2 GΩ
    Display range 0 kΩ - 2 GΩ
    Resolution from 1 kΩ
    Accuracy ±(%m.v. + digits) from ±(3% m.v. + 8 digits)
    Insulation resistance - Measuring voltage 1000 V
    Measurement range 1000 kΩ - 4,99 GΩ
    Display range 0 kΩ - 9,99 GΩ
    Resolution from 1 kΩ
    Accuracy ±(%m.v. + digits) from ±(3 % m.v. + 8 digits)
    Measurement of resistance of protective conductors and equipotential bondings with ±200 mA current
    Measurement range 0,12 Ω - 400 Ω
    Display range 0 - 400 Ω
    Resolution from 0,01 Ω
    Accuracy ±(%m.v. + digits) ±(2 % m.v. + 3 digits)
    Measurement of resistance with low current
    Measurement range 0 Ω - 1999 Ω
    Display range 0 - 1999 Ω
    Resolution from 0,1 Ω
    Accuracy ±(%m.v. + digits) ±(3 % m.v. + 3 digits)
    Measurement in luxes (lx)
    Measurement range 0 lx - 399,9 klx
    Display range 0 lx - 399,9 klx
    Resolution from 0,001 lx
    Accuracy ±(%m.v. + digits) from ±(2% m.v. + 5 digits)
    Measurement in feet-candles (fc)
    Measurement range 0 fc - 39,99 kfc
    Display range 0 fc - 39,99 kfc
    Resolution from 0,001 fc
    Accuracy ±(%m.v. + digits) from ±(2 % m.v. + 5 digits)
    Specifications – 3-phase power quality recorder
    Mains nominal frequency 50/60 Hz
    Mains nominal voltage 64/110 V, 110/190 V, 115/200 V, 127/220 V, 220/380 V, 230/400 V, 240/415 V, 254/440 V, 290/500 V
    Supported systems single-phase
    split-phase with common N
    three-phase – WYE with and without N conductor
    three-phase – Delta
    Alternating voltage (TRMS)
    Measurement range 0 - 500 V
    Max. resolution 0,01 % Unom
    Accuracy ±(%m.v. + digits) ±0,5 % Unom
    Alternating current (TRMS)
    Measurement range depending on clamp
    F-1A, F-2A, F-3A clamp 0 - 3000 A AC (10 000 Ap-p)
    C-4A clamp 0 - 1000 A AC (3600 Ap-p)
    C-5A clamp 0 - 1000 A AC/DC (3600 Ap-p)
    C-6A clamp 0 - 10 A AC (36 Ap-p)
    C-7A clamp 0 - 100 A AC (360 Ap-p)
    Max. resolution 0,01 % Inom
    Accuracy ±(%m.v. + digits) ±2% m.v. if m.v. ≥ 10% Inom
    ±2% Inom if m.v. < 10% Inom
    (error does not account for clamp error)
    Frequency
    Measurement range 40 - 70 Hz
    Max. resolution 0,01 Hz
    Accuracy ±(%m.v. + digits) ±0,05 Hz
    Active, reactive, apparent and distortion power
    Measurement range depending on configuration
    (transducers, clamps)
    Max. resolution 4 significant digits
    Accuracy depending on configuration
    Active, reactive, apparent and distortion energy
    Measurement range depending on configuration
    (transducers, clamps)
    Max. resolution 4 significant digits
    Accuracy as power error
    cosφ and power factor (PF)
    Measurement range 0 - 1
    Max. resolution 0,01
    Accuracy ±(%m.v. + digits) ±0,03
    Harmonics - Voltage
    Measurement range as for alternating voltage
    True RMS
    Max. resolution as for alternating voltage
    Accuracy ±(%m.v. + digits) ±5% m.v. if m.v. ≥ 3% Unom
    ±0.15% Unom if m.v. < 3% Unom
    Harmonics - Current
    Measurement range as for alternating current
    True RMS
    Max. resolution as for alternating current
    Accuracy ±(%m.v. + digits) ±5% m.v. if m.v. ≥ 10% Inom
    ±0.5% Inom if m.v. < 10% Unom
    THD - Voltage
    Measurement range 0 - 100 % (relative to RMS value)
    Max. resolution 0,1 %
    Accuracy ±(%m.v. + digits) ±5 %
    THD - Current
    Measurement range 0 - 100 % (relative to RMS value)
    Max. resolution 0,1 %
    Accuracy ±(%m.v. + digits) ±5 %
    Unbalance factor
    Measurement range 0 - 10 %
    Max. resolution 0,1 %
    Accuracy ±(%m.v. + digits) ±0.15 % (absolute error)
    Open circuit voltage UOC
    Display range 0 - 1000 V
    Resolution from 0,1 V
    Accuracy ±(% m.v. + digits) from ±(3 % m.v. + 2 digits)
    Short circuit current ISC
    Display range 0 - 20 A
    Resolution 0,1 A
    Accuracy ±(% m.v. + digits) ±(3 % m.v. + 0,10 A)
    Environmental Conditions
    Ingress protection IP51
    Operating temperature 0 - 45 °C
    Storage temperature -20 - 60 °C
    Humidity 20 - 90 %
    Nominal temperature 23 ± 2 °C
    Reference humidity 40 - 60 %
    Measuring category acc. to EN 61010 II 1000 V DC
    Type of insulation acc. to EN 61010-1 and IEC 61557 double
    Data Storage
    Memory unlimited
    Computer Interface
    Data transmission USB 2.0
    Measuring information - IRM-1
    Irradiance - Measurement in W/m2
    Measurement range 100 - 1400 W/m2
    Display range 100 - 1400 W/m2
    Resoultion 1 W/m2
    Accuracy ±(% m.v. + digits) ±(5 % m.v. + 2 digits)
    Irradiance - Measurement in BTU/ft2h
    Measurement range 32 - 444 BTU/ft2h
    Display range 0 - 444 BTU/ft2h
    Resoultion 1 BTU/ft2h
    Accuracy ±(% m.v. + digits) ±(5 % m.v. + 2 digits)
    PV and ambient temperature - Measurement in °C
    Measurement range -20 - 100 °C
    Display range -20 - 100 °C
    Resoultion 0,1 °C
    Accuracy ±(% m.v. + digits) ±(1% m.v. + 5 digits)
    PV and ambient temperature - Measurement in °F
    Measurement range -4 - 212 °F
    Display range -4 - 212 °F
    Resoultion 0,1 °F
    Accuracy ±(% m.v. + digits) ±(1 % m.v. + 5 digits)
    Inclination angle
    Measurement range from -90 ° to 90 °
    Display range from -90 ° to 90 °
    Resoultion 1 °
    Accuracy ±(% m.v. + digits) ±4 °
    Position direction - compass
    Measurement range 0 - 360 °
    Display range 0 - 360 °
    Resoultion 1 °
    Accuracy ±(% m.v. + digits) ±7 °
    Safety and work conditions for IRM-1
    Ingress protection IP65
    Power supply Li-Ion 3.7 V 1.3 Ah rechargeable battery
    Dimensions 134 x 79 x 28 mm
    Weight ca. 0.2 kg
    Operating temperature -10 - 50 °C
    Storage temperature -20 - 60°C
    Humidity 20 - 80%
    Nominal temperature 23 ± 2 °C
    Reference humidity 40 - 60 %
    Memory and communication of IRM-1
    Memory of measurement results user measurement memory
    recorder 5000 records
    Data transmission USB
    Communication with a master meter LoRa
    Dimensions and Weight
    Dimensions (W x H x D) 223 x 288 x 75 mm (8,8 x 11,3 x 3,0 in)
    Weight 2.5 kg (5,5 lbs)

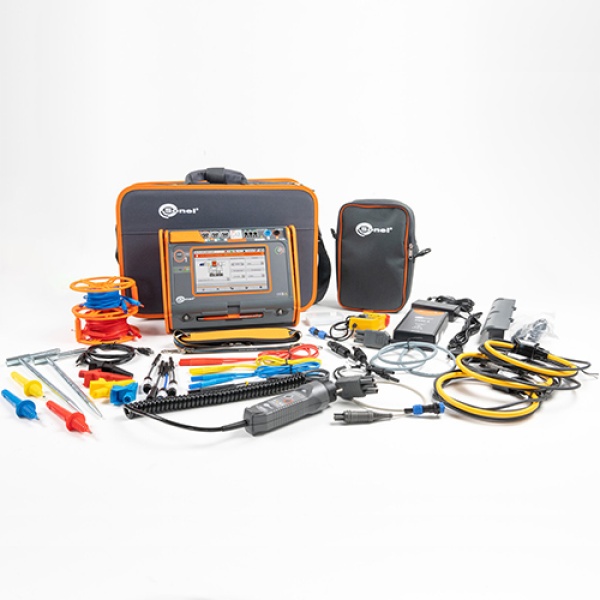

    • Adapter for C-PV clamp
    • M4/M6 screw / banana socket adapter - 4 pcs set
    • MC4-banana sockets adapter (set)
    • PVM-1 PV adapter
    • WS-03 Adapter with START button with UNI-SCHUKO plug
    • AKU-15 Li-ion battery 11.1 V 3.4 Ah
    • Alkaline battery AAA LR03 (24A) 1.5 V (2pcs)
    • C-PV Current clamp
    • F-3A Flexible coil (Φ=120 mm) (3pcs)
    • Factory calibration certificate
    • L-2 Carrying case
    • M-13 Carrying case
    • K-01 Crocodile clip, black, 1 kV, 20 A
    • K-02 Crocodile clip, blue, 1 kV, 20 A
    • K-02 Crocodile clip, red, 1 kV, 20 A
    • K-02 Crocodile clip, yellow, 1 kV, 20 A
    • 4 GB microSD card
    • Hanging straps
    • Touchscreen pen
    • Sonel pendrive
    • Sonel Analysis 4 - Program for handling PQM series power quality analyzers and MPI-540
    • Sonel Reader
    • Test lead 15 m for earth resistance measurements (on a reel, banana plugs) blue
    • Test lead 30 m for earth resistance measurements (on a reel, banana plugs) red
    • Test lead 1,2 m, black, 1 kV (banana plugs) marked N
    • Test lead 1.2 m CAT III/1000V CAT IV/600V (banana plugs) blue
    • Test lead 1.2 m, 1 kV (banana plugs) red
    • Test lead 1.2 m CAT III/1000V CAT IV/600V (banana plugs) yellow
    • Cable for battery charging from car cigarette lighter socket (12 V)
    • Mains power cable 230 V (IEC C7 plug)
    • USB cable
    • Pin probe, blue 1 kV (banana socket)
    • Earth contact test probe (rod), 30 cm (2pcs)
    • Pin probe CAT III/1000V CAT IV/600V (banana socket) red
    • Pin probe CAT III/1000V CAT IV/600V (banana socket) yellow
    • Z-7 Power supply adapter
    • IRM-1 MPI Solar radiation measurement set
    • MPI-540-PV Solar meter

    The MPI-540 has a variety of communication interfaces and may be used with other programs. The data that was obtained from the device may be downloaded to a computer using a USB port, a portable SD memory card, or wireless technology (Bluetooth* and Wi-Fi).
    Measurement data from the IRM-1 can be transferred to a computer via the USB port. Additionally, the device features an integrated wireless LoRa (Long Range) interface enabling long-distance data transmission with the master meter.
    Create a measurement report for electric shock protection using Sonel Reports PLUS software. Free Sonel Reader software enables the printing and saving of downloaded data to the majority of simple file formats. A professional Sonel Analysis program, which is free, is used to read and analyze data from the power quality recorder.
