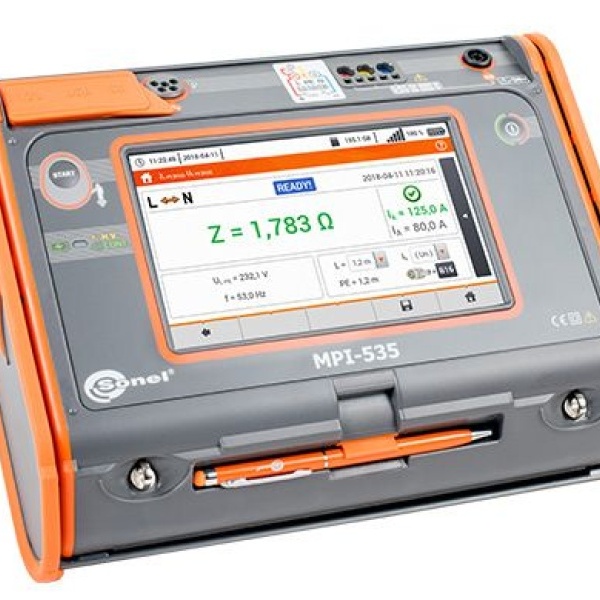

Multifunctional Electrical Installations Meter Sonel MPI-535
SKU: SL-MPI-535-EU-R1
MPI-535 allows safety control of residential, commercial and industrial electrical installations.
- The largest touch screen on the market (7”) – remarkable ergonomics and ease of use
- Measurement of all parameters related to earthing and protection against electric shock – one device instead of several
- Auto measurements – the ability to perform automatic measurements in sequence – simplified measurements
Estimated shipping time 3-4 weeks
The Multifunction Electrical Installations Meter Sonel MPI-535 is a comprehensive solution for commissioning and testing electrical installations. This device offers a range of functionalities that make it a must-have tool for every service technician.
One of the key features of the Sonel MPI-535 is its 7-inch touch screen display, which offers remarkable ergonomics and ease of use. The large screen makes it easy to read and interpret measurement results, and the touch screen interface allows for easy navigation of the device's various functions.
The meter also comes with a removable microSD memory card, which allows for easy expansion of memory capacity. Additionally, the Li-Ion battery provides longer operation of the meter, making it ideal for use in the field.
The Sonel MPI-535 offers a wide range of measurements related to earthing and protection against electric shock, making it a versatile tool for commissioning and testing electrical installations. The device can quickly measure the fault loop impedance in networks secured with RCDs, without triggering the RCD, saving time and making the process more efficient.
The meter also offers Auto measurements, which allows the user to perform automatic measurements in sequence, simplifying the process and reducing the time required to complete measurements. The device also offers a fast path from measurements to report, making it easy to create professional and accurate reports.
Overall, the Multifunction Electrical Installations Meter Sonel MPI-535 is an essential tool for service technicians, providing a comprehensive solution for commissioning and testing electrical installations. For more information, please check out the datasheet within the Documents tab.
Product information | |
---|---|
Product name | Multifunctional Electrical Installations Meter Sonel MPI-535 |
Brand | Sonel |
Fault loop impedance ZL-PE, ZL-N, ZL-L | |
Measurement range | 0,13 - 1999 Ω |
Display range | 0 - 1999 Ω |
Resolution | from 0,001 Ω |
Accuracy ±(%m.v. + digits) | ±(5 % m.v. + 30 digits) |
Fault loop impedance ZL-PE in RCD mode | |
Measurement range | from 0,50 - 1999 Ω |
Display range | 0 - 1999 Ω |
Resolution | from 0,01 Ω |
Accuracy ±(%m.v. + digits) | ±(6 % m.v. + 5 digits) |
General and short-time delay RCD | |
Measurement range | 0 - 300 ms |
Display range | 0 - 300 ms |
Resolution | 1 ms |
Accuracy ±(%m.v. + digits) | ±(2 % m.v. + 2 digits) |
Selective RCD | |
Measurement range | 0 - 500 ms |
Display range | 0 - 500 ms |
Resolution | 1 ms |
Accuracy ±(%m.v. + digits) | ±(2 % m.v. + 2 digits) |
For sinusoidal residual current (AC type) | |
Measurement range | 3,3 mA - 1000 mA |
Display range | 3,3 mA - 1000 mA |
Resolution | from 0,1 mA |
Accuracy ±(%m.v. + digits) | ±5 % IΔn |
For unidirectional residual current and unidirectional with the 6 mA DC bias (type A) | |
Measurement range | 3,5 mA - 700 mA |
Display range | 3,5 mA - 700 mA |
Resolution | from 0,1 mA |
Accuracy ±(%m.v. + digits) | ±10 % IΔn |
For direct residual current (type B) | |
Measurement range | 2,0 mA - 1000 mA |
Display range | 2,0 mA - 1000 mA |
Resolution | from 0,1 mA |
Accuracy ±(%m.v. + digits) | ±10 % IΔn |
Earth resistance - 3-pole method | |
Measurement range | from 0,50 Ω - 1,99 kΩ |
Display range | 0 - 1,99 kΩ |
Resolution | from 0,01 Ω |
Accuracy ±(%m.v. + digits) | from ±(2 % m.v. + 3 digits) |
Earth resistance - 4-pole method | |
Measurement range | from 0,50 Ω - 1,99 kΩ |
Display range | 0 - 1,99 kΩ |
Resolution | from 0,01 Ω |
Accuracy ±(%m.v. + digits) | from ±(2 % m.v. + 3 digits) |
Earth resistance - 3-pole + clamp method | |
Measurement range | 0,00 Ω - 1,99 kΩ |
Display range | 0,00 Ω - 1,99 kΩ |
Resolution | from 0,01 Ω |
Accuracy ±(%m.v. + digits) | ±(2 % m.v. + 4 digits) |
Earth resistance - 2-clamp method | |
Measurement range | 0,00 Ω - 99,9 kΩ |
Display range | 0,00 Ω - 99,9 kΩ |
Resolution | from 0,01 Ω |
Accuracy ±(%m.v. + digits) | from ±(10 % m.v. + 4 digits) |
Resistance-to-earth | |
Measurement range | 0,00 Ωm - 99,9 kΩm |
Display range | 0,00 Ωm - 99,9 kΩm |
Resolution | from 0,1 Ωm |
Accuracy ±(%m.v. + digits) | Depending on accuracy |
of RE measurement | |
Insulation resistance - Measuring voltage 50 V | |
Measurement range | 50 kΩ - 250 MΩ |
Display range | 0 kΩ - 250 MΩ |
Resolution | from 1 kΩ |
Accuracy ±(%m.v. + digits) | from ±(3 % m.v. + 8 digits) |
Insulation resistance - Measuring voltage 100 V | |
Measurement range | 100 kΩ - 500 MΩ |
Display range | 0 kΩ - 500 MΩ |
Resolution | from 1 kΩ |
Accuracy ±(%m.v. + digits) | from ±(3 % m.v. + 8 digits) |
Insulation resistance - Measuring voltage 250 V | |
Measurement range | 250 kΩ - 999 MΩ |
Display range | 0 kΩ - 999 MΩ |
Resolution | from 1 kΩ |
Accuracy ±(%m.v. + digits) | from ±(3 % m.v. + 8 digits) |
Insulation resistance - Measuring voltage 500 V | |
Measurement range | 500 kΩ - 2 GΩ |
Display range | 0 kΩ - 2 GΩ |
Resolution | from 1 kΩ |
Accuracy ±(%m.v. + digits) | from ±(3% m.v. + 8 digits) |
Insulation resistance - Measuring voltage 1000 V | |
Measurement range | 1000 kΩ - 4,99 GΩ |
Display range | 0 kΩ - 9,99 GΩ |
Resolution | from 1 kΩ |
Accuracy ±(%m.v. + digits) | from ±(3 % m.v. + 8 digits) |
Measurement of resistance of protective conductors and equipotential bondings with ±200 mA current | |
Measurement range | 0,12 Ω - 400 Ω |
Display range | 0 - 400 Ω |
Resolution | from 0,01 Ω |
Accuracy ±(%m.v. + digits) | ±(2 % m.v. + 3 digits) |
Measurement of resistance with low current | |
Measurement range | 0 Ω - 1999 Ω |
Display range | 0 - 1999 Ω |
Resolution | from 0,1 Ω |
Accuracy ±(%m.v. + digits) | ±(3 % m.v. + 3 digits) |
Measurement in luxes (lx) | |
Measurement range | 0 lx - 399,9 klx |
Display range | 0 lx - 399,9 klx |
Resolution | from 0,001 lx |
Accuracy ±(%m.v. + digits) | from ±(2% m.v. + 5 digits) |
Measurement in feet-candles (fc) | |
Measurement range | 0 fc - 39,99 kfc |
Display range | 0 fc - 39,99 kfc |
Resolution | from 0,001 fc |
Accuracy ±(%m.v. + digits) | from ±(2 % m.v. + 5 digits) |
Environmental Conditions | |
Ingress protection | IP51 |
Operating temperature | 0 - 45 °C |
Storage temperature | -20 - 60 °C |
Humidity | 20 - 90 % |
Nominal temperature | 23 ± 2 °C |
Reference humidity | 40 - 60 % |
Measuring category acc. to EN 61010 | IV 300 V, III 500 V |
Type of insulation acc. to EN 61010-1 and IEC 61557 | double |
Data Storage | |
Memory | unlimited |
Computer Interface | |
Data transmission | USB 2.0 |
Dimensions and Weight | |
Dimensions (W x H x D) | 223 x 288 x 75 mm (8,8 x 11,3 x 3,0 in) |
Weight | 2.5 kg (5,5 lbs) |
- WS-03 Adapter with START button with UNI-SCHUKO plug
- AKU-15 Li-ion battery 11.1 V 3.4 Ah
- Factory calibration certificate
- L-2 Carrying case
- K-02 Crocodile clip, blue, 1 kV, 20 A
- K-02 Crocodile clip, red, 1 kV, 20 A
- K-02 Crocodile clip, yellow, 1 kV, 20 A
- Hanging straps
- Touchscreen pen
- Sonel pendrive
- Sonel Reader
- Test lead 15 m for earth resistance measurements (on a reel, banana plugs) blue
- Test lead 30 m for earth resistance measurements (on a reel, banana plugs) red
- Test lead 1.2 m CAT III/1000V CAT IV/600V (banana plugs) blue
- Test lead 1.2 m, 1 kV (banana plugs) red
- Test lead 1.2 m CAT III/1000V CAT IV/600V (banana plugs) yellow
- Mains power cable 230 V (IEC C7 plug)
- USB cable
- Pin probe, blue 1 kV (banana socket)
- Earth contact test probe (rod), 30 cm (2pcs)
- Pin probe CAT III/1000V CAT IV/600V (banana socket) red
- Pin probe CAT III/1000V CAT IV/600V (banana socket) yellow
- Z-7 Power supply adapter
- MPI-535 meter
Sonel Reports PLUS Supports creation of documentation after testing of electrical installation. WAPROREPORTPLUS
