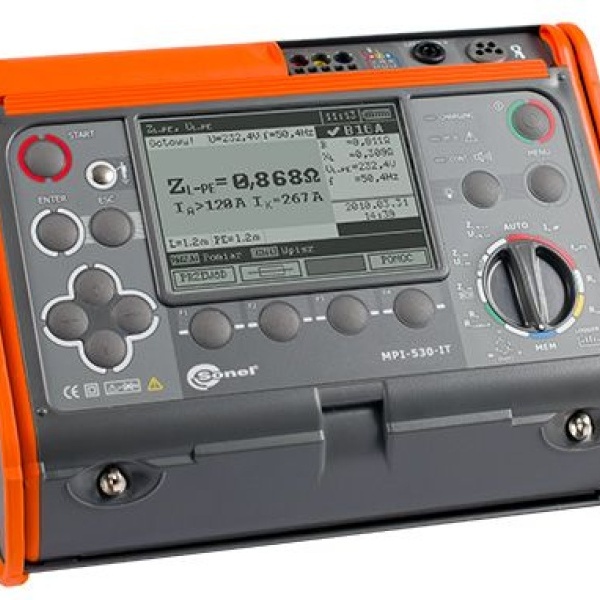

Multifunctional Electrical Installations Meter Sonel MPI-530-IT

SKU: SL-MPI-530-IT-EU-R1

MPI-530-IT combines the measuring capabilities of several devices: it can be used for all measurements for commissioning of electrical installations and can record 50/60 Hz power quality parameters.

  • Has bulit-in help screens with measurement diagrams.
  • Copes well in difficult environmental conditions.
  • Works in IT mens.
Free shipping over 200 EUR
Estimated shipping time 3-4 weeks
Add to wishlist Add to compare list

The Multifunction Electrical Installations Meter Sonel MPI-530-IT is an essential tool for electricians and technicians in the field of electrical installations. It offers a wide range of functionalities, combining the measuring capabilities of several devices while ensuring high accuracy.

How to use Multifunction Electrical Installations Meter Sonel MPI-530-IT?

The MPI-530-IT is easy to use and can be used for all measurements required for commissioning of electrical installations in accordance with applicable regulations. It can measure short circuit loop impedance, RCD parameters, insulation resistance, earth resistance, continuity of protective and equipotential bondings, light intensity, phase sequence and motor rotation direction.

Features of Multifunction Electrical Installations Meter Sonel MPI-530-IT

The MPI-530-IT offers a wide range of features that make it an ideal tool for electricians and technicians. It can measure 50/60 Hz power quality parameters such as voltage, current, frequency, active, reactive and apparent power, power factor, cosφ, harmonics, and total harmonic distortion. It also has a large touch screen display for easy read-outs and operation and a removable microSD memory card for easy increase of memory capacity. Additionally, it has a Li-Ion battery that ensures longer operation and the ability to perform automatic measurements in sequence.

The Multifunction Electrical Installations Meter Sonel MPI-530-IT is an all-in-one device that offers a wide range of functionalities and features, making it a must-have tool for electricians and technicians in the field of electrical installations. With its high accuracy and easy-to-use interface, it is perfect for all types of electrical measurements and assessments. To get more information, please check the tab Documents.

Product information
Product name Multifunctional Electrical Installations Meter Sonel MPI-530-IT
Brand Sonel
Fault loop impedance ZL-PE, ZL-N, ZL-L
Measurement range 0,13 - 1999 Ω
Display range 0 - 1999 Ω
Resolution from 0,001 Ω
Accuracy ±(%m.v. + digits) ±(5% m.v. + 0,03 Ω)
Fault loop impedance ZL-PE in RCD mode
Measurement range from 0,50 - 1999 Ω
Display range 0 - 1999 Ω
Resolution from 0,01 Ω
Accuracy ±(%m.v. + digits) ±(6% m.v. + 5 digits)
General and short-time delay RCD (TN/TT mains)
Measurement range 0 - 300 ms
Display range 0 - 300 ms
Resolution 1 ms
Accuracy ±(%m.v. + digits) ±(2% m.v. + 2 digits)
General and short-time delay RCD (IT mains)
Measurement range 0 - 400 ms
Display range 0 - 400 ms
Resolution 1 ms
Accuracy ±(%m.v. + digits) ±(2% m.v. + 2 digits)
Selective RCD
Measurement range 0 - 500 ms
Display range 0 - 500 ms
Resolution 1 ms
Accuracy ±(%m.v. + digits) ±(2% m.v. + 2 digits)
For sinusoidal residual current (AC type)
Measurement range 3,3 mA - 1000 mA
Display range 3,3 mA - 1000 mA
Resolution from 0,1 mA
Accuracy ±(%m.v. + digits) ±5 % IΔn
For unidirectional residual current and unidirectional with the 6 mA DC bias (type A)
Measurement range 3,5 mA - 700 mA
Display range 3,5 mA - 700 mA
Resolution from 0,1 mA
Accuracy ±(%m.v. + digits) ±10 % IΔn
For direct residual current (type B)
Measurement range 2,0 mA - 1000 mA
Display range 2,0 mA - 1000 mA
Resolution from 0,1 mA
Accuracy ±(%m.v. + digits) ±10 % IΔn
Earth resistance - 3-pole method
Measurement range from 0,50 Ω - 1,99 kΩ
Display range 0 - 1,99 kΩ
Resolution from 0,01 Ω
Accuracy ±(%m.v. + digits) from ±(2 % m.v. + 3 digits)
Earth resistance - 4-pole method
Measurement range from 0,50 Ω - 1,99 kΩ
Display range 0 - 1,99 kΩ
Resolution from 0,01 Ω
Accuracy ±(%m.v. + digits) from ±(2 % m.v. + 3 digits)
Earth resistance - 3-pole + clamp method
Measurement range 0,00 Ω - 1,99 kΩ
Display range 0,00 Ω - 1,99 kΩ
Resolution from 0,01 Ω
Accuracy ±(%m.v. + digits) ±(8 % m.v. + 4 digits)
Earth resistance - 2-clamp method
Measurement range 0,00 Ω - 99,9 kΩ
Display range 0,00 Ω - 99,9 kΩ
Resolution from 0,01 Ω
Accuracy ±(%m.v. + digits) from ±(10 % m.v. + 4 digits)
Resistance-to-earth
Measurement range 0,00 Ωm - 99,9 kΩm
Display range 0,00 Ωm - 99,9 kΩm
Resolution from 0,1 Ωm
Accuracy ±(%m.v. + digits) Depending on accuracy
of RE measurement
Insulation resistance - Measuring voltage 50 V
Measurement range 50 kΩ - 250 MΩ
Display range 0 kΩ - 250 MΩ
Resolution from 1 kΩ
Accuracy ±(%m.v. + digits) from ±(3 % m.v. + 8 digits)
Insulation resistance - Measuring voltage 100 V
Measurement range 100 kΩ - 500 MΩ
Display range 0 kΩ - 500 MΩ
Resolution from 1 kΩ
Accuracy ±(%m.v. + digits) from ±(3 % m.v. + 8 digits)
Insulation resistance - Measuring voltage 250 V
Measurement range 250 kΩ - 999 MΩ
Display range 0 kΩ - 999 MΩ
Resolution from 1 kΩ
Accuracy ±(%m.v. + digits) from ±(3 % m.v. + 8 digits)
Insulation resistance - Measuring voltage 500 V
Measurement range 500 kΩ - 2 GΩ
Display range 0 kΩ - 2 GΩ
Resolution from 1 kΩ
Accuracy ±(%m.v. + digits) from ±(3% m.v. + 8 digits)
Insulation resistance - Measuring voltage 1000 V
Measurement range 1000 kΩ - 9,99 GΩ
Display range 0 kΩ - 9,99 GΩ
Resolution from 1 kΩ
Accuracy ±(%m.v. + digits) from ±(3 % m.v. + 8 digits)
Measurement of resistance of protective conductors and equipotential bondings with ±200 mA current
Measurement range 0,12 Ω - 400 Ω
Display range 0 - 400 Ω
Resolution from 0,01 Ω
Accuracy ±(%m.v. + digits) ±(2 % m.v. + 3 digits)
Measurement of resistance with low current
Measurement range 0 Ω - 1999 Ω
Display range 0 - 1999 Ω
Resolution from 0,1 Ω
Accuracy ±(%m.v. + digits) ±(3 % m.v. + 3 digits)
Measurement in luxes (lx)
Measurement range 0 lx - 399,9 klx
Display range 0 lx - 399,9 klx
Resolution from 0,001 lx
Accuracy ±(%m.v. + digits) from ±(2% m.v. + 5 digits)
Measurement in feet-candles (fc)
Measurement range 0 fc - 39,99 kfc
Display range 0 fc - 39,99 kfc
Resolution from 0,001 fc
Accuracy ±(%m.v. + digits) from ±(2 % m.v. + 5 digits)
Specifications – 1-phase power quality recorder
Mains nominal frequency 50/60 Hz
Mains nominal voltage 110/190 V, 115/200 V,
127/220 V, 220/380 V, 230/400 V, 240/415 V
Supported systems single-phase
Alternating voltage (TRMS)
Measurement range 0 - 500 V
Max. resolution 0,1 V
Accuracy ±(%m.v. + digits) from ±(2% m.v. + 2 digits)
Alternating current (TRMS)
Measurement range depending on clamp
F-1A, F-2A, F-3A clamp 0 - 3000 A AC (10 000 Ap-p)
C-3 clamp 0 - 1000 A AC (3600 Ap-p)
C-6A clamp 0 - 10 A AC (36 Ap-p)
Max. resolution 0,1 mA
Accuracy ±(%m.v. + digits) from ±(5 % m.v. + 3 digits)
(error does not account for clamp error)
Frequency
Measurement range 45 - 65 Hz
Max. resolution 0,1 Hz
Accuracy ±(%m.v. + digits) ±(0.1 % m.v. + 1 digit)
Active, reactive, apparent and
distortion power
Measurement range 0 VA - 1,5 MVA
0 W - 1,5 MW
0 var - 1,5 Mvar
Max. resolution 1 VA
1 W
1 var
Accuracy ±(%m.v. + digits) from ±(7 % m.v. + 3 digits)
cosφ and power factor (PF)
Measurement range 0 - 1
Max. resolution 0,01
Accuracy ±(%m.v. + digits) unspecified
Harmonics - Voltage
Measurement range 0 - 500 V
Max. resolution 0,1 V
Accuracy ±(%m.v. + digits) from ±(5 % m.v. + 3 digits)
Harmonics - Current
Measurement range depending on clamp
F-1A, F-2A, F-3A clamp 0 - 3000 A AC (10 000 Ap-p)
C-3 clamp 0 - 1000 A AC (3600 Ap-p)
C-6A clamp 0 - 10 A AC (36 Ap-p)
Max. resolution as for alternating current
True RMS
Accuracy ±(%m.v. + digits) from ±(5 % m.v. + 3 digits)
(error does not account for clamp error)
THD - Voltage
Measurement range 0 - 999,9%
(in relation to the first harmonic)
Max. resolution 0,1 %
Accuracy ±(%m.v. + digits) ±5 %
THD - Current
Measurement range 0 - 999,9%
(in relation to the first harmonic)
Max. resolution 0,1 %
Accuracy ±(%m.v. + digits) ±5 %
(error does not account for clamp error)
Environmental Conditions
Ingress protection IP54
Operating temperature 0 - 50 °C
Storage temperature -20 - 70 °C
Humidity 20 - 90 %
Nominal temperature 23 ± 2 °C
Reference humidity 40 - 60 %
Measuring category acc. to EN 61010 IV 300 V, III 600 V
Type of insulation acc. to EN 61010-1 and IEC 61557 double
Data Storage
Memory 6 000 cells, 10 000 records
Computer Interface
Data transmission USB 2.0, Bluetooth
Dimensions and Weight
Dimensions (W x H x D) 223 x 288 x 75 mm (8,8 x 11,3 x 3,0 in)
Weight 2.5 kg (5,5 lbs)
  • WS-03 Adapter with START button with UNI-SCHUKO plug
  • AKU-07 NiMH battery 4.8 V 4.2 Ah
  • Factory calibration certificate
  • L-2 Carrying case
  • K-02 Crocodile clip, blue, 1 kV, 20 A
  • K-02 Crocodile clip, red, 1 kV, 20 A
  • K-02 Crocodile clip, yellow, 1 kV, 20 A
  • Hanging straps
  • Test lead 15 m for earth resistance measurements (on a reel, banana plugs) blue
  • Test lead 30 m for earth resistance measurements (on a reel, banana plugs) red
  • Test lead 1.2 m CAT III/1000V CAT IV/600V (banana plugs) blue
  • Test lead 1.2 m, 1 kV (banana plugs) red
  • Test lead 1.2 m CAT III/1000V CAT IV/600V (banana plugs) yellow
  • Cable for battery charging from car cigarette lighter socket (12 V)
  • Mains power cable 230 V (IEC C7 plug)
  • USB cable
  • Pin probe, blue 1 kV (banana socket)
  • Earth contact test probe (rod), 30 cm (2pcs)
  • Pin probe CAT III/1000V CAT IV/600V (banana socket) red
  • Pin probe CAT III/1000V CAT IV/600V (banana socket) yellow
  • Z-7 Power supply adapter
  • MPI-530-IT meter
