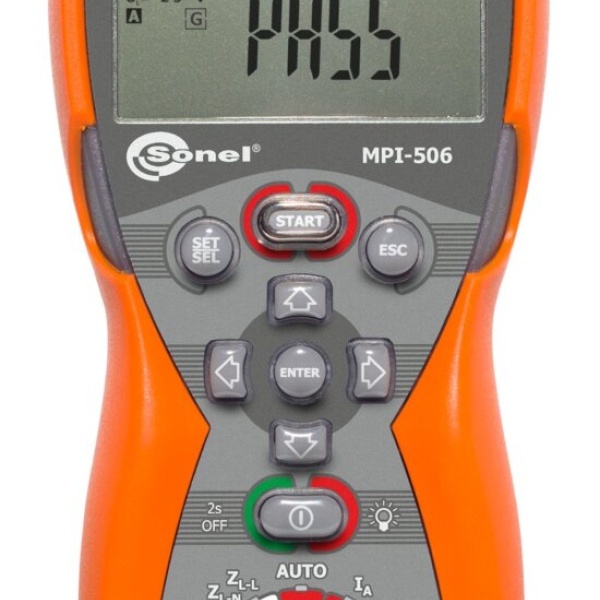

Multifunctional Electrical Installations Meter Sonel MPI-506

SKU: SL-MPI-506-EU-R1

One of the smallest multifunction meters on the market, the Sonel MPI-506 meter stuns with broad possibilities. It is flexible to work with in all conditions, intuitive, convenient, and ergonomic.

  • Measurement of short circuit loop parameters
  • Insulation resistance measurement
  • Resistance of protective and equalizing connections
  • Testing RCD breakers of AC, A types and more
Free shipping over 200 EUR
Estimated shipping time 3-4 weeks
Add to wishlist Add to compare list

Why Choose Sonel MPI-506 Multifunctional Electrical Installations Meter?

Are you looking for a multifunctional electrical installations meter that is both reliable and easy-to-use? Look no further than the Sonel MPI-506.
Small, if not the smallest in the market, precise, handy, and ergonomic.
This Sonel multimeter is designed to make testing electrical installations a breeze. With the ability to measure short circuit loop parameters, insulation resistance, and the resistance of protective and equalizing connections, the Sonel MPI-506 is an essential tool for any electrician.
One of the standout features of the Sonel MPI-506 is its ability to test RCD breakers of AC, A types. This is an important safety feature that ensures the proper functioning of electrical equipment and helps prevent accidents.
The MIC-506 meter performs impressively in challenging environments. A special housing with a protection rating of IP67 ensures protection against ingress of dust and water.

User-Friendly Interface for Quick and Accurate Measurements

Using the Sonel MPI-506 is simple and straightforward. Its user-friendly interface allows for quick and accurate measurements, saving you time and hassle. Plus, this multimeter is designed with safety in mind, with features like automatic detection of the presence of voltage and automatic measurement of contact voltage.
The Sonel MPI-506 is a great investment for any electrician. It's reliable, durable, and the perfect tool for testing electrical installations.So if you're looking for a reliable and easy-to-use multifunctional electrical installations meter, look no further than the Sonel MPI-506. It will make your testing a breeze.
For more technical information check out features below and datasheet in documents section.

Features

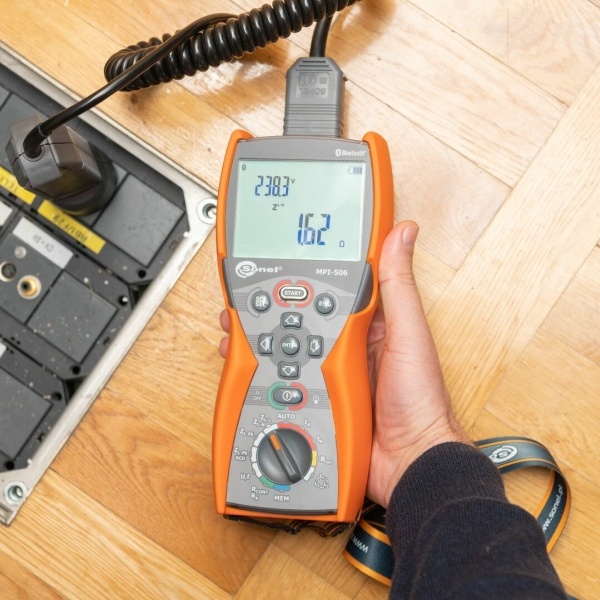

Measurement of short circuit loop parameters

  • Measurement of short circuit loop impedance in networks with rated voltage: 220/380 V, 230 V/400 V, 240/415 V and frequency 45 - 65 Hz, operating voltage range: 180 - 460 V
  • Indication of short circuit loop resistance R and short circuit loop reactance X

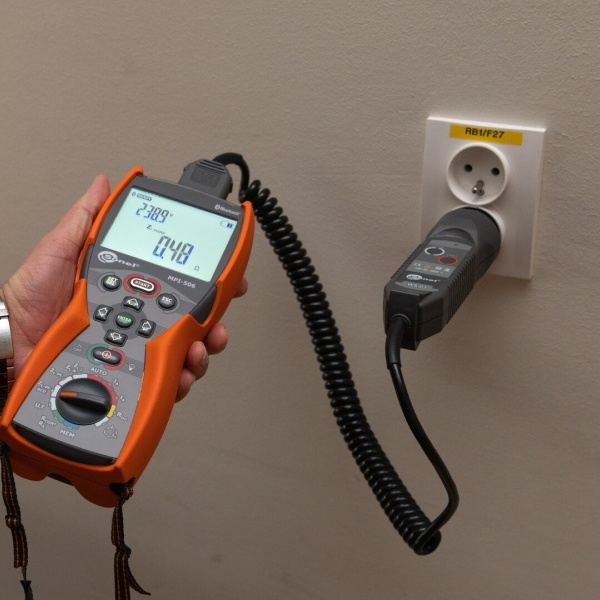

  • Measurements of short circuit loop impedance with 15 mA current, without tripping the RCD circuit breaker
  • Maximum test current: 7,6 A (at 230 V), 13,3 A (at 400 V)

    • Testing RCD breakers of AC, A types

  • Testing of prompt, short-delay and selective RCDs with rated current values 10, 15, 30, 100, 300, 500 mA
  • Measurement of IA trip current and tripping time tA for currents 0.5 IΔn, 1 IΔn, 2 IΔn, 5 IΔn
  • RE and UB measurement without RCD tripping
  • Extended AUTO function of RCD measurement, with the possibility of measuring ZL-PE with low current
  • Measurement of IA and tA during one RCD tripping

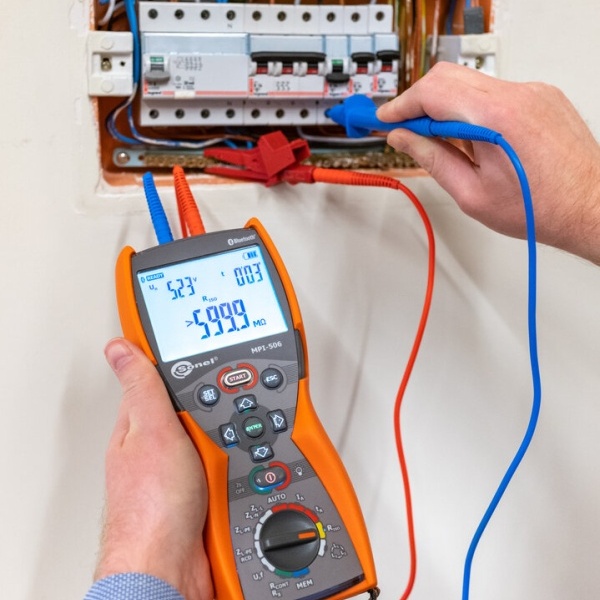

    • Insulation resistance measurement

  • Test voltage 100 V, 250 V, 500 V

    • Measurement of resistance of protective conductors and equipotential bondings

  • Measurement of protective connections continuity with a ±200 mA current in accordance with EN 61557-4
  • Autocalibration of test leads - any leads can be used
  • Low current resistance measurement with sound signaling

    • Phase sequence indication

    Additional functions

  • Checking the correctness of PE connection using a contact electrode
  • Measurement of voltage (0 - 500 V) and network frequency
  • Memory of 990 results
  • Wireless data transmission to a computer
  • Backlit keypad

    • Product information
    Product name Multifunctional Electrical Installations Meter Sonel MPI-506
    Brand Sonel
    Fault loop impedance ZL-PE, ZL-N, ZL-L
    Measurement range 0,13 - 1999 Ω
    Display range 0 - 1999 Ω
    Resolution from 0,01 Ω
    Accuracy ±(%m.v. + digits) ±(5% m.v. + 3 digits)
    Fault loop impedance ZL-PE in RCD mode
    Measurement range 0,5 - 1999 Ω
    Display range 0 - 1999 Ω
    Resolution from 0,01 Ω
    Accuracy ±(%m.v. + digits) ±(6% m.v. + 5 digits)
    General and short-time delay RCD
    Measurement range 0 - 300 ms
    Display range 0 - 300 ms
    Resolution 1 ms
    Accuracy ±(%m.v. + digits) ±(2% m.v. + 2 digits)
    Selective RCD
    Measurement range 0 - 500 ms
    Display range 0 - 500 ms
    Resolution 1 ms
    Accuracy ±(%m.v. + digits) ±(2% m.v. + 2 digits)
    For sinusoidal residual current (AC type)
    Measurement range 3 - 500 mA
    Display range 3 - 500 mA
    Resolution from 0,1 mA
    Accuracy ±(%m.v. + digits) ±5 % IΔn
    For unidirectional residual current and unidirectional with the 6 mA DC bias (type A)
    Measurement range 3 - 420 mA
    Display range 3.5 - 420 mA
    Resolution from 0,1 mA
    Accuracy ±(%m.v. + digits) ±10 % IΔn
    Insulation resistance - Measuring voltage 100 V
    Measurement range 100 kΩ - 99,9 MΩ
    Display range 0 kΩ - 99,9 MΩ
    Resolution from 1 kΩ
    Accuracy ±(%m.v. + digits) ±(5% m.v. + 8 digits)
    Insulation resistance - Measuring voltage 250 V
    Measurement range 250 kΩ - 199,9 MΩ
    Display range 0 kΩ - 199,9 MΩ
    Resolution from 1 kΩ
    Accuracy ±(%m.v. + digits) ±(5% m.v. + 8 digits)
    Insulation resistance - Measuring voltage 500 V
    Measurement range 500 kΩ - 599,9 MΩ
    Display range 0 kΩ - 599,9 MΩ
    Resolution from 1 kΩ
    Accuracy ±(%m.v. + digits) ±(5% m.v. + 8 digits)
    Measurement of resistance of protective conductors and equipotential bondings with ±200 mA current
    Measurement range 0,12 kΩ - 400 Ω
    Display range 0 - 400 Ω
    Resolution from 0,01 Ω
    Accuracy ±(%m.v. + digits) ±(2% m.v. + 3 digits)
    Measurement of resistance with low current
    Measurement range 0 Ω - 1999 Ω
    Display range 0 - 1999 Ω
    Resolution from 0,1 Ω
    Accuracy ±(%m.v. + digits) ±(3% m.v. + 3 digits)
    Environmental Conditions
    Ingress protection IP67
    Measuring category acc. to EN 61010 IV 300 V (III 600 V)
    Type of insulation acc. to EN 61010-1 and IEC 61557 double
    Data Storage
    Memory 990 cells, 10 000 records
    Computer Interface
    Data transmission Bluetooth
    Dimensions and Weight
    Dimensions (W x H x D) 102 x 220 x 61 mm (4,0 x 8,7 x 2,4 in)
    Weight 0.8 kg (1,8 lbs)
    • WS-03 Adapter with START button with UNI-SCHUKO plug
    • Alkaline battery AA LR06 (15A) 1.5 V (4pcs)
    • Factory calibration certificate
    • M-6 Carrying case
    • K-02 Crocodile clip, red, 1 kV, 20 A
    • K-02 Crocodile clip, yellow, 1 kV, 20 A
    • M-1 Hanging straps
    • Hanging hook straps
    • Test lead 1.2 m CAT III/1000V CAT IV/600V (banana plugs) blue
    • Test lead 1.2 m, 1 kV (banana plugs) red
    • Test lead 1.2 m CAT III/1000V CAT IV/600V (banana plugs) yellow
    • Pin probe, blue 1 kV (banana socket)
    • Pin probe CAT III/1000V CAT IV/600V (banana socket) red
    • Pin probe CAT III/1000V CAT IV/600V (banana socket) yellow
    • MPI-506 meter

    Bluetooth wireless communication makes it simple to transmit measurement data to your computer. Use Sonel Reports PLUS software to create a report on measurements of electric shock protection. Free Sonel Reader software enables printing and saving of data in simple file formats.
