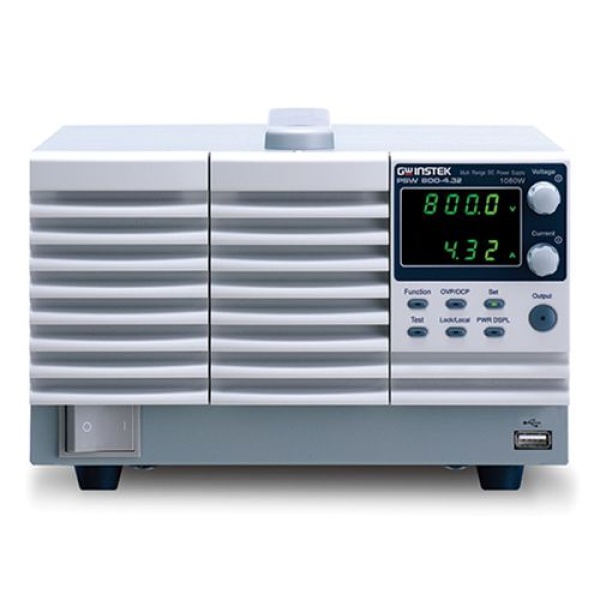

Multi-Range Programmable Switching D.C. Power Supply GW Instek PSW800-4.32

Multi-Range Programmable Switching D.C. Power Supply GW Instek PSW800-4.32 is a powerful and versatile power supply that offers a wide range of features for a variety of applications. With a voltage rating of 800V and an output power rating of 1080W, this power supply is perfect for powering high voltage and high current devices.

One of the key features of the GW Instek PSW800-4.32 is its constant power output for multiple range (V&I) operation. This allows users to configure voltage and current within the rated power range, making it easy to adjust power output to meet specific requirements. Additionally, the PSW800-4.32 has a CV/CC priority feature that is particularly useful for the battery and LED industry. It helps to protect the DUT from inrush current damage by operating under C.C priority to limit the current spike occurred at the threshold voltage.

The adjustable slew rate of the PSW800-4.32 allows users to set a specific rise time from low to high level transition and a specific fall time from high to low level transition. This helps to facilitate the characteristic verification of a DUT during voltage or current level changes with controllable slew rates. Additionally, the power supply has parallel operation capability of up to 3 units, which allows users to connect multiple PSW-Series units for higher voltage or higher current output.

The PSW800-4.32 also boasts high efficiency and high power density, making it a great choice for applications that require high power output. Its 1/6 rack mount size design (EIA/JIS Standard) for 1080W is perfect for users who want to save space. The power supply also has standard interfaces such as LAN, USB, and analog control interface, as well as optional interfaces such as GPIB-USB Adaptor, and RS232-USB Cable. It also supports LabView driver and Data Logging PC software.

The Multi-Range Programmable Switching D.C. Power Supply GW Instek PSW800-4.32 is a powerful and versatile power supply that offers a wide range of features for a variety of applications. With its high voltage and high current capabilities, adjustable slew rate, CV/CC priority feature, parallel operation, high efficiency and power density, and multiple interface options, this power supply is perfect for professionals who need a reliable and flexible power supply for their projects.
