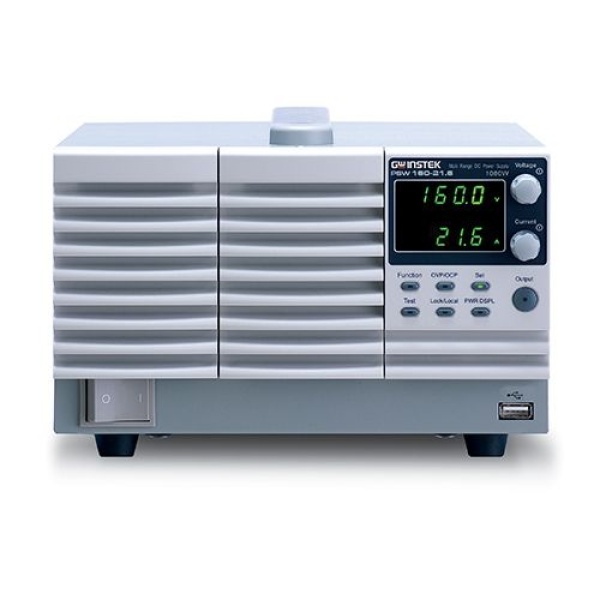

Multi-Range Programmable Switching D.C. Power Supply GW Instek PSW160-21.6
SKU: GW-PSW160-21.6-EU-R1
Programmable Switching D.C. Power Supply Features:
- Voltage Rating: 160V, Output Power Rating: 1080W
- Constant Power Output for Multiple Range (V&I) Operation
- CV/CC Priority; Particularly Suitable for the Battery and LED Industry
- 1/6 Rack Mount Size Design (EIA/JIS Standard) for 1080W
Estimated shipping time 4-5 weeks
The Multi-Range Programmable Switching D.C. Power Supply GW Instek PSW160-21.6 is the perfect solution for your power supply needs. With a voltage rating of 160V and an output power rating of 1080W, this power supply is capable of providing constant power output for multiple range (V&I) operation. Its CV/CC priority feature makes it particularly suitable for the battery and LED industry.
The adjustable slew rate of the PSW-Series allows users to set for either output voltage or output current, a specific rise time from low to high level transition, and a specific fall time from high to low level transition, facilitating the characteristic verification of a DUT during voltage or current level changes with controllable slew rates.
The PSW-Series can be connected in parallel for maximum 3 units, providing a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW-Series significantly reduces the users’ cost for various power supply products to accommodate the projects with different power requirements.
The PSW-Series is also designed for high efficiency and high power density, with a 1/6 rack mount size design (EIA/JIS Standard) for 1080W. The standard interface includes LAN, USB, and Analog Control Interface, and optional interface includes GPIB-USB Adaptor, RS232-USB Cable, and LabView Driver.
It also provides Over Voltage Protection (OVP) and Over Current Protection (OCP) levels can be selected, with default level set at 110% of the rated voltage/current of the power supply, which help to protect the DUT when any of the protection levels is tripped, the power output will be switched off.
In conclusion, the Multi-Range Programmable Switching D.C. Power Supply GW Instek PSW160-21.6 is an ideal choice for those looking for a powerful, efficient, and versatile power supply solution. With its advanced features and options, it can meet a wide range of power supply needs for different projects and applications.
| Product information | |
|---|---|
| Product name | Multi-Range Programmable Switching D.C. Power Supply GW Instek PSW160-21.6 |
| Brand | GW Instek |
| Dimensions and Weight | |
| Dimensions (W x H x D) | - |
| Weight | - |
- GTL-123 - Test Lead, O-type to O-type Test Lead, 1200mm
- GTL-240 - USB Cable, USB 2.0, A-B Type (L Type), 1200mm
- CD (User manual, Programming manual)
- Power cord
- PSW-004 - Basic Accessory Kit for 30V/80V/160V models
- PSW-009 - Output terminal cover for 30V/80V/160V models
- PSW160-21.6 - 1080W Multi-Range Programmable Switching D.C. Power Supply
