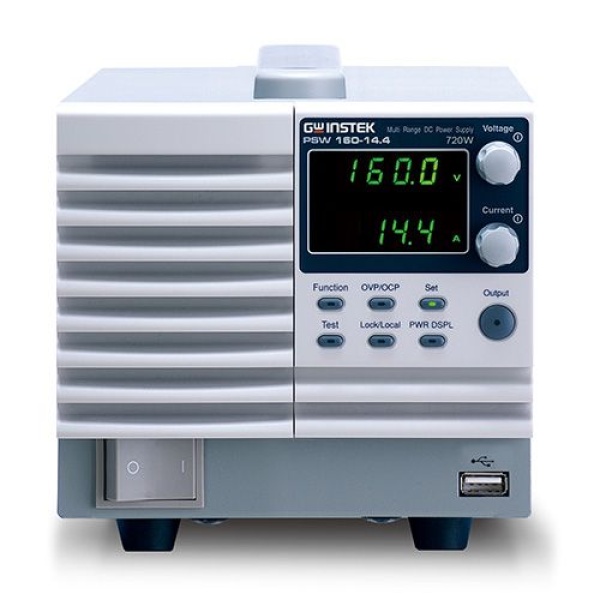

Multi-Range Programmable Switching D.C. Power Supply GW Instek PSW160-14.4
SKU: GW-PSW160-14.4-EU-R1
Programmable Switching D.C. Power Supply Features:
- Voltage Rating: 160V, Output Power Rating: 720W
- Constant Power Output for Multiple Range (V&I) Operation
- CV/CC Priority; Particularly Suitable for the Battery and LED Industry
- 1/6 Rack Mount Size Design (EIA/JIS Standard) for 720W
Estimated shipping time 4-5 weeks
Multi-Range Programmable Switching D.C. Power Supply GW Instek PSW160-14.4 is a versatile and reliable power supply option for a wide range of applications. With a voltage rating of 160V and an output power rating of 720W, this power supply offers constant power output for multiple range (V&I) operation.
The PSW160-14.4 offers CV/CC priority, which is particularly suitable for the battery and LED industry. This feature allows for efficient protection of the DUT (Device Under Test) by limiting the current spike that occurs at the threshold voltage, protecting the device from inrush current damage.
The adjustable slew rate of the PSW160-14.4 allows users to set specific rise and fall times for voltage or current level changes, making it ideal for testing and verifying the characteristics of a DUT. Additionally, the PSW160-14.4 also supports parallel operation up to 3 units, making it possible to achieve higher voltage or current output for a broader range of applications.
The PSW160-14.4 boasts a high efficiency and high power density design, which is further enhanced by its 1/6 rack mount size (EIA/JIS standard) for 720W. This design makes it easy to integrate the power supply into a wide range of laboratory and industrial settings.
The PSW160-14.4 comes with standard interfaces such as LAN, USB, and analog control interface, and also offers optional interfaces such as GPIB-USB adapter and RS232-USB cable. Additionally, it supports LabView driver and data logging PC software, making it easy to interface with and control the power supply.
The Multi-Range Programmable Switching D.C. Power Supply GW Instek PSW160-14.4 offers a combination of high performance, versatility, and ease of use, making it an excellent choice for a wide range of applications.
Product information | |
---|---|
Product name | Multi-Range Programmable Switching D.C. Power Supply GW Instek PSW160-14.4 |
Brand | GW Instek |
Dimensions and Weight | |
Dimensions (W x H x D) | - |
Weight | - |
- GTL-123 - Test Lead, O-type to O-type Test Lead, 1200mm
- GTL-240 - USB Cable, USB 2.0, A-B Type (L Type), 1200mm
- CD (User manual, Programming manual)
- Power cord
- PSW-004 - Basic Accessory Kit for 30V/80V/160V models
- PSW-009 - Output terminal cover for 30V/80V/160V models
- PSW160-14.4 - 720W Multi-Range Programmable Switching D.C. Power Supply
