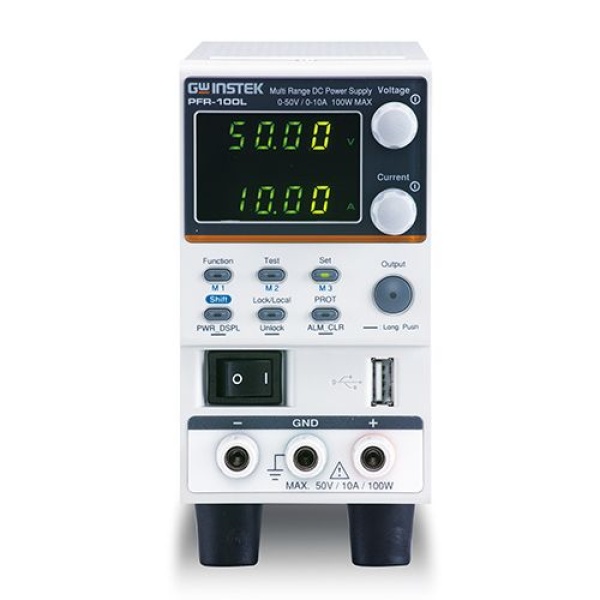

Multi-Range D.C. Power Supply GW Instek PFR-100L

SKU: GW-PFR-100L -EU-R1

The PFR-100 series is a power supply with a five-fold rated power that allows users to self-define voltage and current under rated power conditions so as to satisfy them with wider voltage and current operational ranges.

    Free shipping over 200 EUR
    Estimated shipping time 4-5 weeks

    The PFR-100 series provides front and rear panel output terminals. The front panel output terminal helps users shorten test lead replacement time while conducting adjustment on front panel's function keys. The rear panel output terminal facilitates an easy wiring operation for rackmount assembly. 3U height, 70mm width and 2.5KG in weight have greatly elevated PFR-100 series portability. Furthermore, the multi-drop mode allows users to control up to 31 PFR-100 series without using switch/Hub that help users save the equipment cost.

    Features

  • Constant Power Output for 5 Times Multi-range(V&I) Operation
  • Natural Convection Cooling Design (Fanless Structure)
  • Preset Memory Function
  • Output ON/OFF Delay Function
  • CV, CC Priority Mode
  • Adjustable Slew Rate For Voltage and Current
  • Bleeder Circuit Control
  • Protections: OVP, OCP, AC FAIL and OTP
  • Support Front and Rear Panel Output
  • Built-in USB and RS-232/485 Interface Optional LAN+GPIB
  • Web Server Monitoring and Control
  • External Analog Control and Monitor Function
  • Remote Sensing Function
  • Product information
    Product name Multi-Range D.C. Power Supply GW Instek PFR-100L
    Brand GW Instek
    Dimensions and Weight
    Dimensions (W x H x D) 124 x 70 x 300 mm (4,9 x 2,8 x 11,8 in)
    Weight 2.5 kg (5,5 lbs)
    • GTL-104A - Test Lead, U-type to Alligator Test Lead, Max. Current 10A, 1000mm
    • GTL-134 - Test Lead, 10A, 1200mm, for PFR-100
    • Accessory packages
    • CD (User manual, Programming manual)
    • Power cord
    • PFR-001 Accessory kit
    • GW Instek PFR-100L
