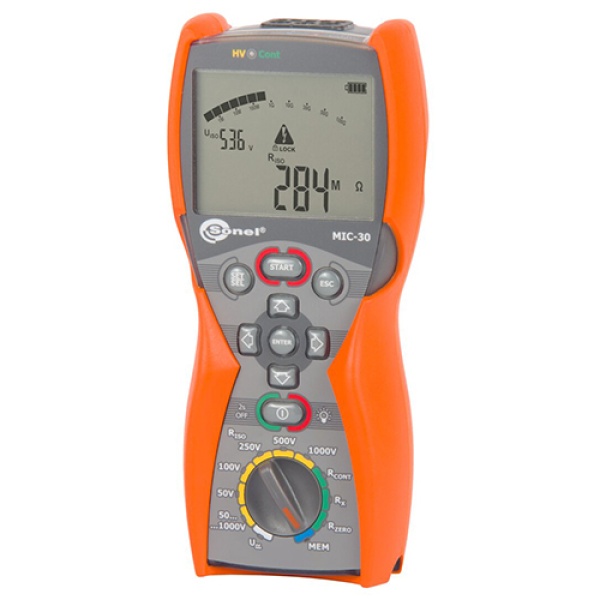

Insulation Resistance Meter Sonel MIC-30

SKU: SL-MIC-30-EU-R1

The MIC-30 is a hand-held, rugged, easy-to-use, 1 kV class insulation test meter. The MIC-30 has a wide measurement range, selectable test voltages, and excellent safety features.

    Free shipping over 200 EUR
    Estimated shipping time 3-4 weeks
    Add to wishlist Add to compare list

    The Sonel MIC-30 insulation resistance meter is the ideal tool for all professionals who frequently examine the condition of electrical systems. With its test voltage settings from 50V to 1000V, it is perfect for diagnosing electrical, control, communication, and telecommunications objects. It is essential for service technicians as it is a hand-held, rugged, and easy-to-use device with 1 kV class insulation test meter.

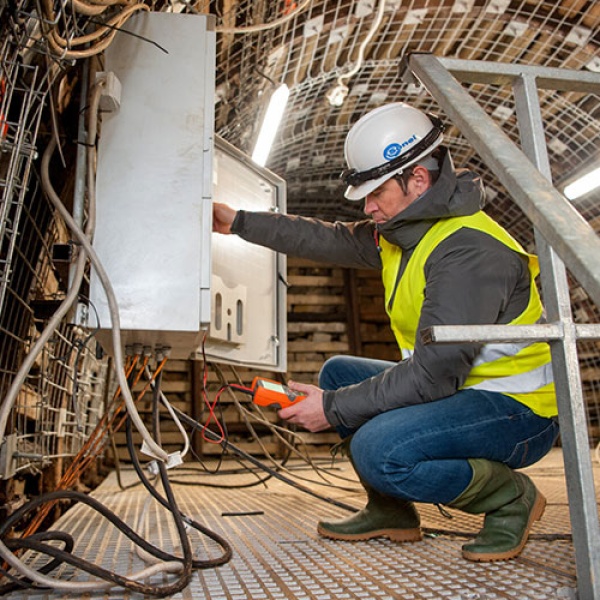

    How to use Insulation Resistance Meter Sonel MIC-30

    The MIC-30 meter is easy to use and has a wide measurement range, selectable test voltages, and excellent safety features. It is perfect for diagnosing the electrical, control, communication and telecommunications objects. The dedicated UNI-Schuko adapter enables the user to configure the tested cable pairs – this ensures quick and efficient inspection of the insulation resistance from the side of sockets. The built-in memory and wireless transmission ensure gathering and transmission of data to software that provides archiving and analysis.

    Features of Insulation Resistance Meter Sonel MIC-30

  • Test voltage settings from 50 V to 1000 V (in 10 V steps)
  • Suitable for diagnosing the electrical, control, communication, and telecommunications objects
  • PRS-1 probe (optional accessory) is very useful for assessing the protection of power supply lines and floors and walls in places where the insulation of the stand was used as a means of protection against electric shock
  • UNI-Schuko adapter enables user to configure the tested cable pairs
  • Measuring range up to 600 V for checking whether an object is under voltage
  • Continuity of cables, e.g. PE connections and equipotential bonding can be verified using the current of at least 200 mA
  • Capacitors in household appliances and drives can be checked with measuring range up to 10 µF
  • Third socket (GUARD) can be used to verify the amount of leakage current
  • Built-in memory and wireless transmission for data gathering and transmission to software for archiving and analysis
  • Essential tool for every service technician

    • Product information
    Product name Insulation Resistance Meter Sonel MIC-30
    Brand Sonel
    Measurement information
    Insulation resistance measurement to 100 GΩ
    User selected test voltages 50, 100, 250, 500, 1000 V in 10 V steps
    Displays continuous indication of insulation resistance or leakage current
    Audio beeps every five-second periods to indicate measurement progress
    Indication of actual test voltage during the measurement
    Measurement Capacitance measurement during measurement
    Continuity measurement of protective and equipotential conductors according to EN 61557-4
    Low-voltage circuit continuity and resistance measurement
    Audio alert signal if circuit resistance is below 30 Ω
    Measurement of alternating and direct voltages from 0 to 600 V
    Measurement in sockets with the UNI-Schuko adapter with possibility of configuring pairs of measured cable Automatic
    Selectable test times (T1, T2 , T3 from 1 to 600 seconds) to measure one or two absorption coefficients
    Communication and results display
    Display LCD segment display
    Memory 990 memory cells to save test results
    Wireless data transmission to computer using the Bluetooth
    Supply related information
    Power supply of the meter 4 x AA alkaline batteries or rechargeable batteries
    Hardware protection (fuses, etc.)
    Discharge of tested object after the insulation resistance measurement completes in order to remove high voltage charge remaining due to cable capacitance Automatic
    Protection Protection against measuring live objects (measurement will not proceed)
    Environmental Conditions
    Operating temperature -10°C…+50°C
    Applicable Standards (Safety, EMC and others) and Certificates
    Quality standard for design, construction and manufacturing compliant with ISO 9001
    The device meets the requirements of EN 61557 standard.
    The product meets EMC requirements (immunity for industrial environment)
    According to the following standards EN 61326-1
    Additional information
    Degree of housing protection acc. to EN 60529 is IP67.
    Dimensions and Weight
    Dimensions (W x H x D) -
    Weight -
    		IT Scheda MIC-30
    • Alkaline battery AA LR06 (15A) 1.5 V
    • Factory calibration certificate
    • M-6 Carrying case
    • K-02 Crocodile clip, blue, 1 kV, 20 A
    • M-1 Hanging straps
    • Hanging hook straps
    • Test lead 1.2 m, 1 kV (banana plugs, shielded) black
    • Test lead 1.2 m CAT III/1000V CAT IV/600V (banana plugs) blue
    • Test lead 1.2 m, 1 kV (banana plugs) red
    • Pin probe CAT III/1000V CAT IV/600V (banana socket) black
    • Pin probe CAT III/1000V CAT IV/600V (banana socket) red
    • Insulation Resistance Meter MIC-30
