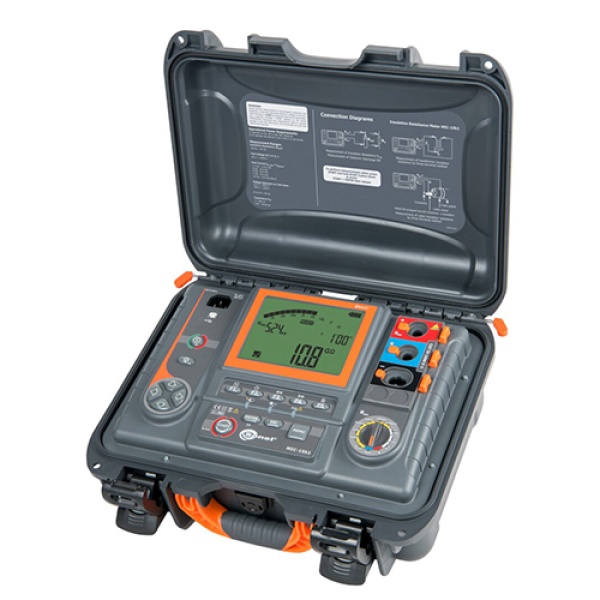

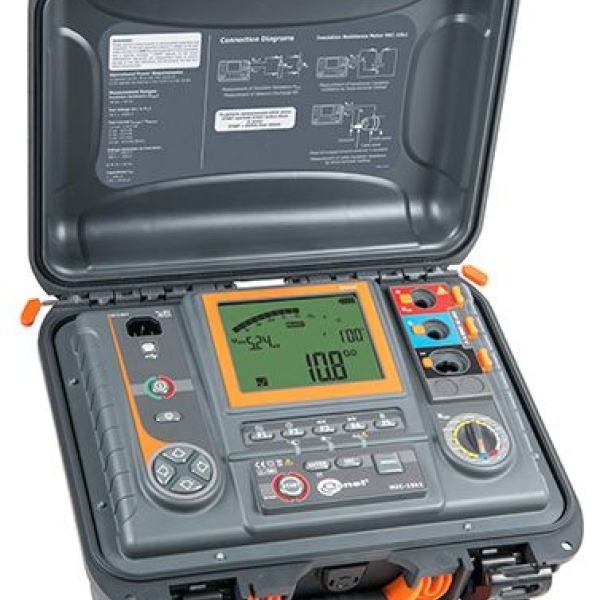

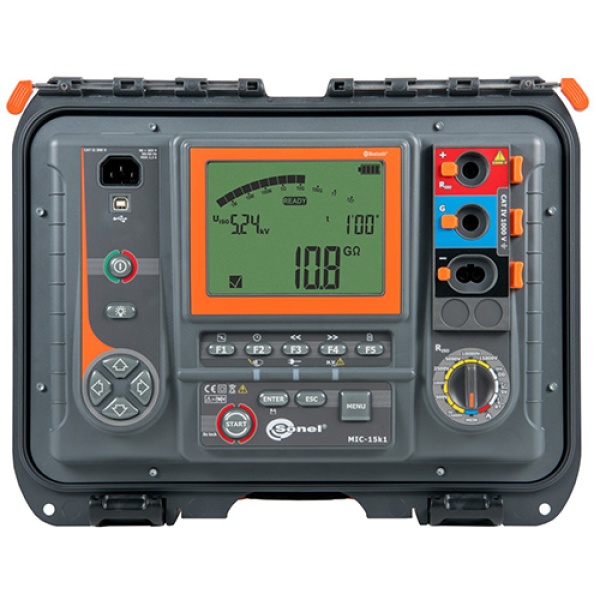

Insulation Resistance Meter Sonel MIC-15k1

Insulation Resistance Meter Sonel MIC-15k1: The Ultimate Tool for Power Object Measurements

The Insulation Resistance Meter Sonel MIC-15k1 is the ideal tool for assessing the resistance of power objects, such as single and multi-core cables, transformers, motors and generators, capacitors, switches, and other devices installed in power stations. With its ability to measure resistance up to 40TΩ with a 15000V DC voltage rate test, it is unrivaled in its class.

How to Use Insulation Resistance Meter Sonel MIC-15k1

The MIC-15k1 meter can be used to verify if a cable is under voltage of 750V, check continuity of cables, e.g. PE connections, and equipotential bonding – using the current of at least 200 mA, according to EN 61557-4. The third socket (GUARD) allows users to verify the amount of leakage current that may “escape” through faulty or contaminated insulation. The meter also features a RampTest function (12 kV per minute) and digital filters that enable its operation in environments with high interferences, such as substations.

Features of Insulation Resistance Meter Sonel MIC-15k1

Measures resistance up to 40TΩ with a 15000V DC voltage rate test

Verifies if a cable is under voltage of 750V and checks continuity of cables, e.g. PE connections and equipotential bonding

Maximum 7.5 mA current enables reliable reading regardless of conditions

Third socket (GUARD) for verifying leakage current

Unique diagrams for visualizing measurement results and partial discharge detector

Built-in digital filters for operation in environments with high interferences

RampTest feature (12 kV per minute)

Indicates the Dielectric Absorption Ratio DAR, Polarization Index PI, and the value of Dielectric Discharge DD

Allows assessment of insulation condition through incremental steps (SV) or smooth increase (RampTest)

Built-in digital filters with averaging time of 10, 30, 60, 100, 200 sec for stable measurement results in areas of strong electromagnetic interference

For more information, please check the tab Documents.
