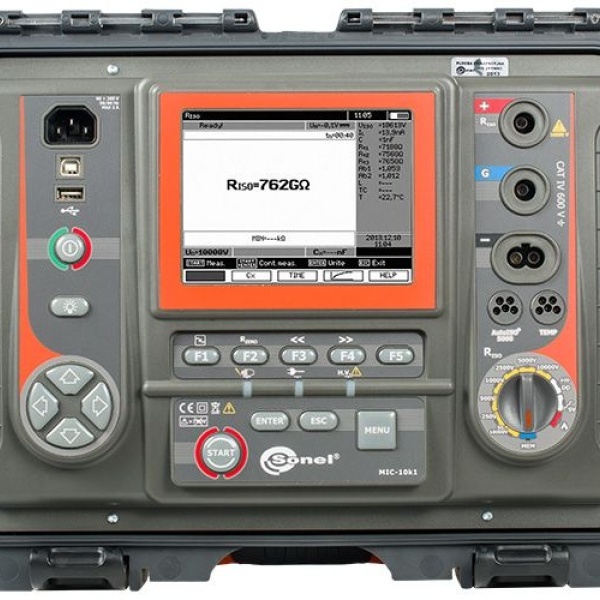

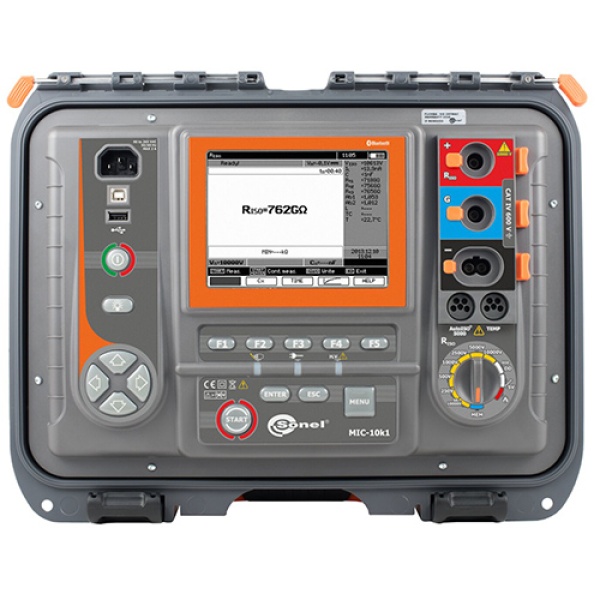

Insulation Resistance Meter Sonel MIC-10k1

The Sonel MIC-10k1 insulation resistance meter is the perfect tool for service technicians and professionals in the electrical industry. With its ability to measure resistance up to 40TΩ with a 10000V DC voltage rate test, it is capable of accurately assessing the condition of electrical systems.

How to use Insulation Resistance Meter Sonel MIC-10k1

Using the MIC-10k1 is easy, with its test voltage settings, users can verify if a cable is under voltage, continuity of cables, and equipotential bonding. The device also has a third socket (GUARD) that allows users to verify the amount of leakage current that may “escape” through faulty or contaminated insulation. The built-in memory with 990 cells and large screen make it easy to conduct measurements in all conditions.

Features of Insulation Resistance Meter Sonel MIC-10k1

Measure resistance up to 40TΩ with a 10000V DC voltage rate test

Verify if a cable is under voltage, continuity of cables, and equipotential bonding

Third socket (GUARD) to verify leakage current

Built-in memory with 990 cells and large screen for easy measurements in all conditions

Diagrams to help users visualize measurement results

Digital filters to enable operation in environments with high interferences, i.e. substations

Measures temperature of the tested object and indicates absorption coefficient, polarization index, and dielectric discharge

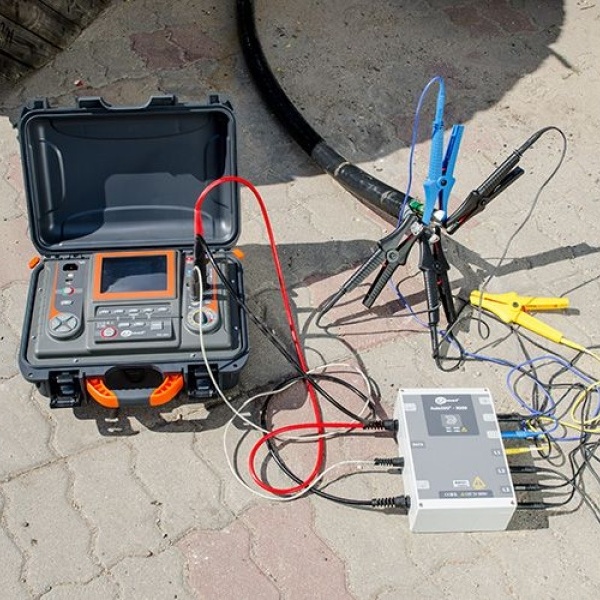

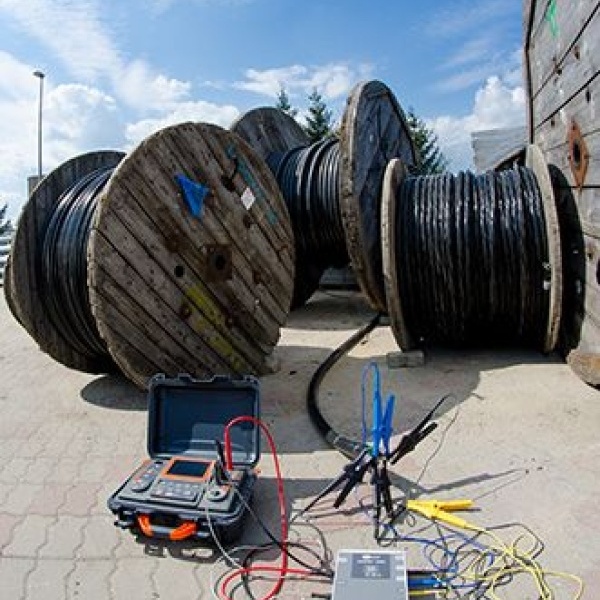

Unique ability to perform measurements on multi-core cables using the AutoISO-5000 adapter

Built-in digital filters and smart solutions for stable measurement results in areas of strong electromagnetic interference

Backlight graphical screen to display waveform of insulation resistance, voltage, and current as a function of time

Movable tags to trace the course of the measurement and check resistance values at any time
