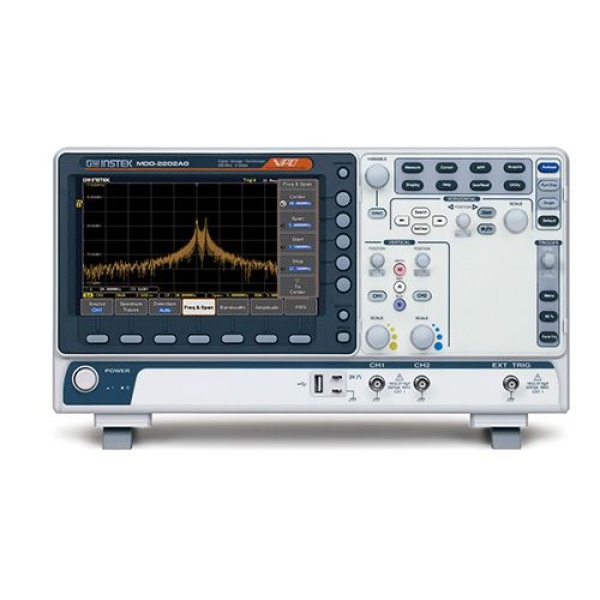

Digital Storage Oscilloscope GW Instek MDO-2202A

Digital Storage Oscilloscope GW Instek MDO-2202A: The Importance of Accurate Signal Analysis

Accurate signal analysis is essential for a wide range of applications, including electronic component development, automotive electrical devices, and home appliances. Whether you're working in a laboratory, production facility, or out in the field, you need a reliable oscilloscope that can provide accurate and detailed information about the signals you're measuring. That's where the Digital Storage Oscilloscope GW Instek MDO-2202A comes in.

The GW Instek MDO-2202A: The Best Solution for Accurate Signal Analysis

The GW Instek MDO-2202A is a digital storage oscilloscope that offers a wide range of features to meet the needs of any application. It features selectable bandwidth range of 300MHz, 200MHz and 100MHz, 2 channels, real-time sampling rate of 2GSa/s max, per channel 20M memory depth and VPO waveform display technology, waveform update rate up to 120,000 wfms/s, 8 “ WVGA TFT LCD display, maximum 1M FFT provides higher frequency domain resolution measurements, high ,low and band pass filter functions, 29,000 segmented memories and waveform search functions, I2C/UART/CAN/LIN serial bus trigger and decoding function, data log function is able to track signal changes up to 1000 hours, network storage function, mask test function and MDO-2000AG equips with a dual channel 25MHz AWG.

Why You Need the GW Instek MDO-2202A

Signal analysis is a critical step in ensuring the performance and reliability of electronic devices and systems. The GW Instek MDO-2202A is the perfect tool for this job. It is designed to provide accurate and detailed information about the signals you're measuring, and it can quickly and easily identify and resolve problems.

Using the GW Instek MDO-2202A: The Best Way to Achieve Accurate Signal Analysis

To use the GW Instek MDO-2202A, simply connect it to the device you want to test and select the appropriate settings for the signals you're measuring. The MDO-2202A will then provide you with detailed information about the signals, including amplitude, frequency, and waveform. The various functions such as high ,low and band pass filter functions, 29,000 segmented memories and waveform search functions, I2C/UART/CAN/LIN serial bus trigger and decoding function, data log function and mask test function allows you to achieve accurate signal analysis.

In conclusion, the GW Instek MDO-2202A is an essential tool for anyone who needs accurate signal analysis. With its wide range of features, it's the best choice for a wide range of applications.
