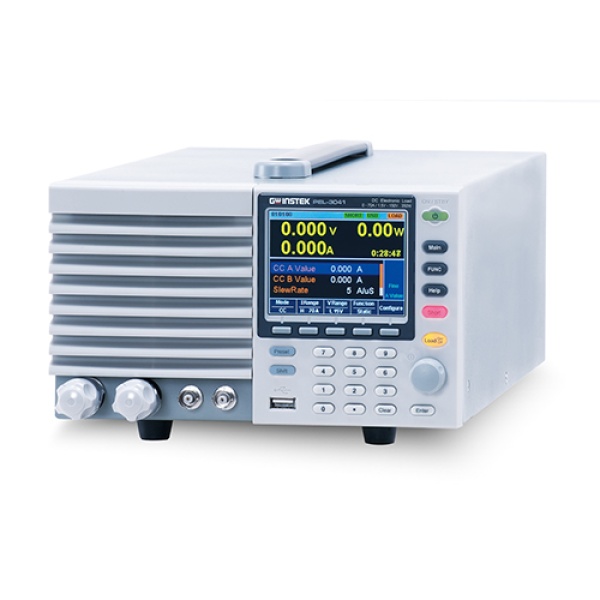

DC Electronic Load GW Instek PEL-3021

SKU: GW-PEL-3021-EU-R1; EAN:01EL302100GT

The PEL-3000 series, a single-channel, programmable D.C. electronic load with 0.01mA current resolution and 16A/μs current Slew Rate, is very ideal for testing server power supply and SPS (Switching Power Supply) for commercial and industrial computers.

    Free shipping over 200 EUR
    Estimated shipping time 4-5 weeks

    The PEL-3000 series, a single-channel, programmable D.C. electronic load with 0.01mA current resolution and 16A/μs current Slew Rate, is very ideal for testing server power supply and SPS (Switching Power Supply) for commercial and industrial computers. For a heavy-duty device like cloud ecosystem running 24-hour nonstop operations, a stable and high-power power supply, ranging from 175W to 1050W, is required to maintain the normal operation of server, Hub, and the equipment of data storage and internet communications. Owing to the increasing demand of data transmission and large scale data storage of telecommunications systems, the infrastructure of internet communications is in the pace of rapid expansion. This has greatly boosted the market demand of telecommunications equipment powered by power supply of 2000W and above. The flexible power combination of PEL-3000 meets the test requirements of present high-power power supply.

    The PEL-3000H programmable DC Electronic load, which not only inherited functions and features from the PEL-3000 series but providing three current ranges for all PEL-3000H series and adding voltage monitor BNC terminals on the front panel. The PEL-3000H series, a single-channel, programmable D.C. electronic load with 800V and 0.84A/μs current Slew Rate, is ideal for the test of the high voltage devices such as the EV & HEV in-vehicle chargers, DC/DC converters or high-voltage batteries.

    Product information
    Product name DC Electronic Load GW Instek PEL-3021
    Brand GW Instek
    Measurement information
    INPUT Max. Voltage 150V
    Slew Rate 16/μA (Max)
    POWER 175W
    Add CV function CC/CR/CP
    Protection OPP/OCP/OVP/UVP allow to set Level
    OTP/RVP are fixed
    External Waveform Control YES
    V&I Monitor YES
    Dynamic Load Yes, 20kHz (25μ sec ~ 30 sec)
    Memory 1024 sets
    Sequences Fast & Normal
    Operation Mainframe with master control unit
    Resolution
    CC 0 ~ 210A
    CV 1.5 ~ 150V
    CR 42.85Ω~2.5kΩ
    Count 15000 Count
    Communication and results display
    Display 3,5 inch LCD display
    1 - Control menu is simple
    2 - It can control easily and is able to show more information
    Interface USB/RS232/Analog Control (Standard)
    GPIB Option
    PC Software N/A
    Dimensions and Weight
    Dimensions (W x H x D) 124 x 214.5 x 400 mm (4,9 x 8,5 x 15,8 in)
    Weight 6 kg (13,2 lbs)
    • Frame Link Cable 300mm
    • CD (User manual)
    • Front Terminal Washers
    • Power cord
    • Load Input Terminal Cover
    • Terminal Fittings Kits
    • Flexible Terminal Cover
    • J1/J2 Protection Plug
    • GW Instek PEL-3021 device
    • Quick Start Guide
