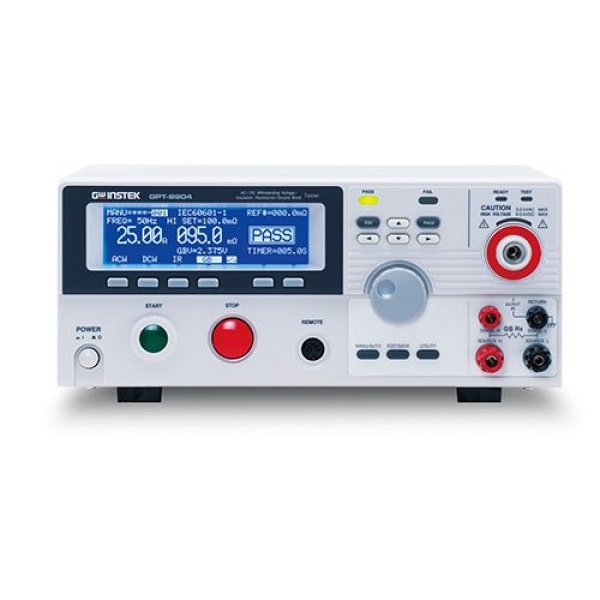

AC Withstanding Voltage Tester GW Instek GPT-9904

SKU: GW-GPT-9904-EU-R1

A Solid Foundation for Reliable, Safe and Practical Safety Compliance Testing

  • 500VA AC Test Capacity
  • Short Current > 200mA
  • 240x64 Ice Blue Dot matrix LCD
  • Sweep Function for DUT characteristic analysis
  • Insulation resistance measurement up to 50GΩ(GPT-9903A/9904)
  • Manual/Auto Mode
  • Function Key for quick selection
  • High intensity flash for caution & Status indication
  • Safety INTERLOCK function
  • Zero Crossing Turn-on Operation
  • Controllable Ramp-up Time
  • RMS Current Measurement
  • High resolution: 1uA for measuring current, 2V for setting voltage
  • PWM amplifier to enhance the power efficiency and reliable testing
  • Max. 100 memory block for test condition (step) setting. And each step can be named individually.
  • Remote terminal on the front panel for “start” and “stop” control

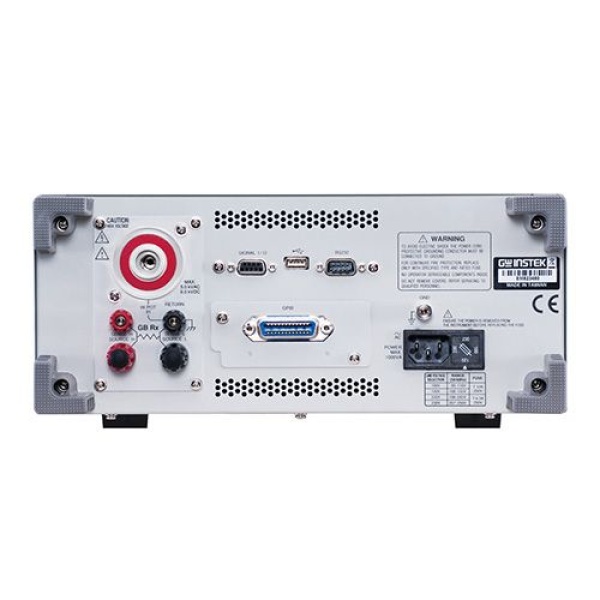

  • Rear panel output available
  • Interface : RS-232C, USB device, Signal I/O and GPIB (optional)
Free shipping over 200 EUR
Estimated shipping time 4-5 weeks

The GW Instek GPT-9904 is a state-of-the-art AC Withstanding Voltage Tester that provides a solid foundation for reliable, safe, and practical safety compliance testing. It is designed for use in a wide range of industries including electrical, electronic, and manufacturing.

Voltage Tester GW Instek GPT-9904 Features and Capabilities

The GPT-9904 offers a high test capacity of 500VA and a short current capability of greater than 200mA. Its 240x64 Ice Blue Dot matrix LCD display allows for easy navigation and reading of test results. The sweep function allows for DUT characteristic analysis, and the insulation resistance measurement can be done up to 50GΩ.

The GPT-9904 features both manual and auto mode and has function keys for quick selection. A high-intensity flash for caution and status indication, as well as a safety INTERLOCK function, provide added security during testing. The zero crossing turn-on operation and controllable ramp-up time make testing more efficient. The tester also offers RMS current measurement with a high resolution of 1uA for measuring current and 2V for setting voltage.

PWM amplifier is implemented in this tester to enhance the power efficiency and reliable testing. With a maximum of 100 memory blocks for test condition (step) setting,

Product information
Product name AC Withstanding Voltage Tester GW Instek GPT-9904
Brand GW Instek
Dimensions and Weight
Dimensions (W x H x D) 148 x 330 x 587 mm (5,8 x 13,0 x 23,1 in)
Weight 27 kg (59,5 lbs)
  • GHT-114 - High Voltage Test Pistol, Approx. 2000m
  • GHT-119 - remote cable (500 mm approx) GPT-series
  • GW Instek GPT-9904 device
  • GTL-215 - Test Lead, U-type to Alligator Test Lead, Approx. 1000mm
  • CD (Quick start manual)
  • CD (User manual)
  • Interlock key
  • Power cord
