AC Withstanding Voltage Tester GW Instek GPT-9903A
SKU: GW-GPT-9903A-EU-R1
A Solid Foundation for Reliable, Safe and Practical Safety Compliance Testing
- 500VA AC Test Capacity
- Short Current > 200mA

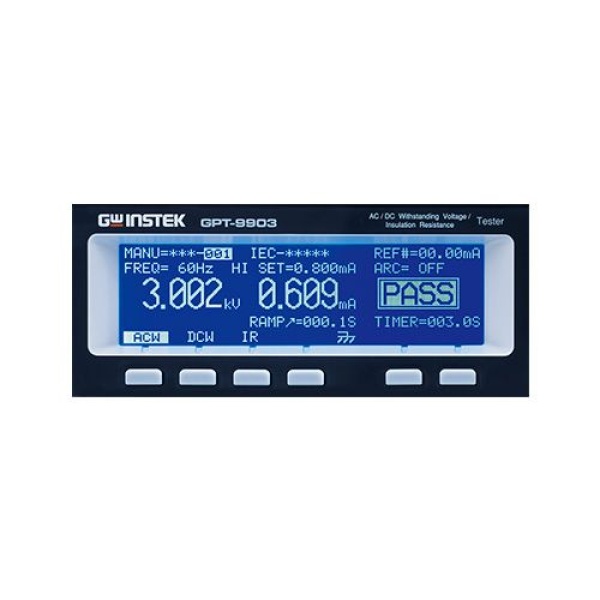

- 240x64 Ice Blue Dot matrix LCD
- Sweep Function for DUT characteristic analysis
- Insulation resistance measurement up to 50GΩ(GPT-9903A/9904)
- Manual/Auto Mode
- Function Key for quick selection
- High intensity flash for caution & Status indication
- Safety INTERLOCK function
- Zero Crossing Turn-on Operation
- Controllable Ramp-up Time
- RMS Current Measurement
- High resolution: 1uA for measuring current, 2V for setting voltage
- PWM amplifier to enhance the power efficiency and reliable testing
- Max. 100 memory block for test condition (step) setting. And each step can be named individually.
- Remote terminal on the front panel for “start” and “stop” control
- Rear panel output available
- Interface : RS-232C, USB device, Signal I/O and GPIB (optional)
Free shipping over 200 EUR
Estimated shipping time 4-5 weeks
Estimated shipping time 4-5 weeks
A.C. 500VA AC/DC Withstanding Voltage/Insulation Resistance Tester
| Product information | |
|---|---|
| Product name | AC Withstanding Voltage Tester GW Instek GPT-9903A |
| Brand | GW Instek |
| Dimensions and Weight | |
| Dimensions (W x H x D) | 148 x 330 x 587 mm (5,8 x 13,0 x 23,1 in) |
| Weight | 27 kg (59,5 lbs) |
- GHT-114 - High Voltage Test Pistol, Approx. 2000m
- GHT-119 - remote cable (500 mm approx) GPT-series
- GW Instek GPT-9903A device
- CD (Quick start manual)
- CD (User manual)
- Interlock key
- Power cord
