Mixed-Signal Oscilloscope GW Instek MSO-2204EA

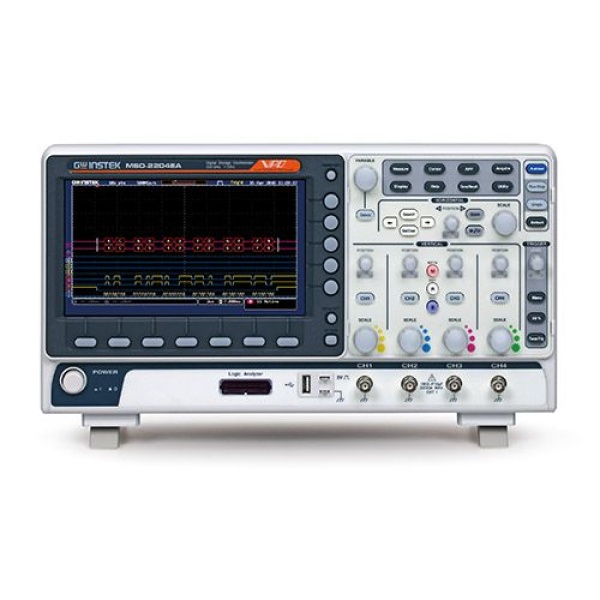

Mixed-Signal Oscilloscope GW Instek MSO-2204EA Engineers and technicians often need to troubleshoot and debug electronic systems that involve both analog and digital signals. This can be a challenging task when using separate oscilloscopes and logic analyzers. The GW Instek MSO-2204EA is a mixed-signal oscilloscope that provides both analog and digital signal analysis in one device. With its dual analog channels and 16 digital channels, it allows users to observe and analyze both types of signals at the same time. The MSO-2204EA features a 10M long memory for both analog and digital channels, allowing users to retrieve and analyze complete waveforms. The waveform search and segmented memory functions make it easy to locate and analyze specific signals. The 16-channel logic analyzer also offers a 10Mpts memory depth per channel, providing ample data for digital signal analysis. The built-in bus trigger and decoding functions for I2C, SPI, UART, and CAN/LIN bus make it easy to analyze and debug communication protocols. The GW Instek MSO-2204EA offers a cost-effective solution for engineers and technicians who need to analyze and debug mixed-signal systems. Its combination of analog and digital capabilities, long memory, and bus trigger and decoding functions make it a versatile tool for troubleshooting and debugging electronic systems.
