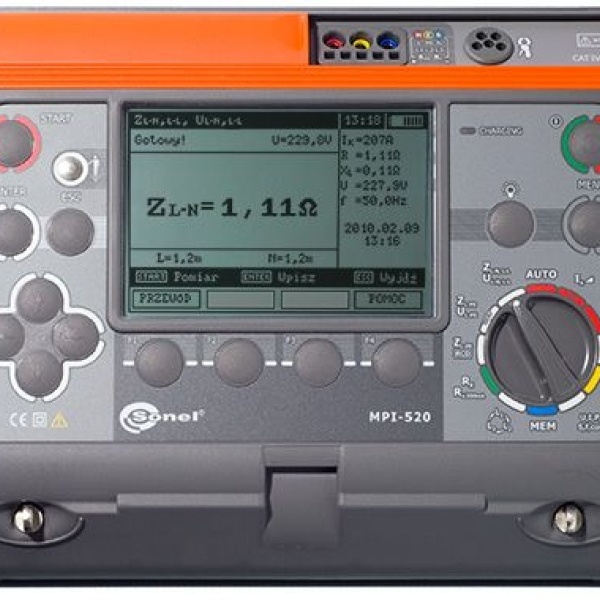

Multifunctional Electrical Installations Meter Sonel MPI-520
SKU: SL-MPI-520-EU-R1
The MPI-520 provides professional measurements for every budget.
- It is dedicated to perform diagnosis of electrical installation according to IEC 61557 standard.
- Copes well in difficult environmental conditions.
Kostenloser Versand über 200 EUR
Geschätzte Versandzeit 3-4 weeks
Geschätzte Versandzeit 3-4 weeks
The Multifunction Electrical Installations Meter Sonel MPI-520 is a versatile and accurate device that combines the measuring capabilities of several devices into one. It is designed for commissioning of electrical installations in accordance with applicable regulations, making it an essential tool for every service technician. How to use Multifunction Electrical Installations Meter Sonel MPI-520 The MPI-520 is easy to use and is designed to be user-friendly. It is equipped with a 7-inch graphical display with touch-screen, making it easy to read and operate. To use the device, simply connect the appropriate accessories and perform the desired measurements. Features of Multifunction Electrical Installations Meter Sonel MPI-520 The MPI-520 offers a wide range of functionalities, including: Measurement of short circuit loop impedance (also in circuits secured with RCDs) RCD parameters Insulation resistance Earth resistance (3-pole method) Continuity of protective and equipotential bondings Phase sequence test AC voltage and AC current, frequency Cosφ, active (P), reactive (Q) and apparent (S) power (using clamp) Additional functions such as checking the correctness of PE connection using a contact electrode, measurement of voltage and network frequency, memory of 990 results, and wireless data transmission to a computer. The MPI-520 Start does not include accessories for earth resistance measurements. Overall, the Multifunction Electrical Installations Meter Sonel MPI-520 is a versatile and accurate device that provides a wide range of functionalities, making it an essential tool for every service technician.
| Produktinformation | |
|---|---|
| Produktname | Multifunctional Electrical Installations Meter Sonel MPI-520 |
| Marke | Sonel |
| Fault loop impedance ZL-PE, ZL-N, ZL-L | |
| Measurement range | 0,13 - 1999 Ω |
| Display range | 0 - 1999 Ω |
| Resolution | from 0,01 Ω |
| Accuracy ±(%m.v. + digits) | ±(5 % m.v. + 3 digits) |
| Fault loop impedance ZL-PE in RCD mode | |
| Measurement range | from 0,50 - 1999 Ω |
| Display range | 0 - 1999 Ω |
| Resolution | from 0,01 Ω |
| Accuracy ±(%m.v. + digits) | ±(6 % m.v. + 5 digits) |
| General and short-time delay RCD | |
| Measurement range | 0 - 300 ms |
| Display range | 0 - 300 ms |
| Resolution | 1 ms |
| Accuracy ±(%m.v. + digits) | ±(2 % m.v. + 2 digits) |
| Selective RCD | |
| Measurement range | 0 - 500 ms |
| Display range | 0 - 500 ms |
| Resolution | 1 ms |
| Accuracy ±(%m.v. + digits) | ±(2 % m.v. + 2 digits) |
| For sinusoidal residual current (AC type) | |
| Measurement range | 3,0 mA - 1000 mA |
| Display range | 3,0 mA - 1000 mA |
| Resolution | from 0,1 mA |
| Accuracy ±(%m.v. + digits) | ±5 % IΔn |
| For unidirectional residual current and unidirectional with the 6 mA DC bias (type A) | |
| Measurement range | 3,5 mA - 700 mA |
| Display range | 3,5 mA - 700 mA |
| Resolution | from 0,1 mA |
| Accuracy ±(%m.v. + digits) | ±10 % IΔn |
| For direct residual current (type B) | |
| Measurement range | 2,0 mA - 1000 mA |
| Display range | 2,0 mA - 1000 mA |
| Resolution | from 0,1 mA |
| Accuracy ±(%m.v. + digits) | ±10 % IΔn |
| Earth resistance - 3-pole method | |
| Measurement range | from 0,50 Ω - 1,99 kΩ |
| Display range | 0 - 1,99 kΩ |
| Resolution | from 0,01 Ω |
| Accuracy ±(%m.v. + digits) | from ±(2 % m.v. + 3 digits) |
| Insulation resistance - Measuring voltage 50 V | |
| Measurement range | 50 kΩ - 250 MΩ |
| Display range | 0 kΩ - 250 MΩ |
| Resolution | from 1 kΩ |
| Accuracy ±(%m.v. + digits) | from ±(3 % m.v. + 8 digits) |
| Insulation resistance - Measuring voltage 100 V | |
| Measurement range | 100 kΩ - 500 MΩ |
| Display range | 0 kΩ - 500 MΩ |
| Resolution | from 1 kΩ |
| Accuracy ±(%m.v. + digits) | from ±(3 % m.v. + 8 digits) |
| Insulation resistance - Measuring voltage 250 V | |
| Measurement range | 250 kΩ - 999 MΩ |
| Display range | 0 kΩ - 999 MΩ |
| Resolution | from 1 kΩ |
| Accuracy ±(%m.v. + digits) | from ±(3 % m.v. + 8 digits) |
| Insulation resistance - Measuring voltage 500 V | |
| Measurement range | 500 kΩ - 2 GΩ |
| Display range | 0 kΩ - 2 GΩ |
| Resolution | from 1 kΩ |
| Accuracy ±(%m.v. + digits) | from ±(3% m.v. + 8 digits) |
| Insulation resistance - Measuring voltage 1000 V | |
| Measurement range | 1000 kΩ - 3 GΩ |
| Display range | 0 kΩ - 3 GΩ |
| Resolution | from 1 kΩ |
| Accuracy ±(%m.v. + digits) | from ±(3 % m.v. + 8 digits) |
| Measurement of resistance of protective conductors and equipotential bondings with ±200 mA curr | |
| Measurement range | 0,12 Ω - 400 Ω |
| Display range | 0 - 400 Ω |
| Resolution | from 0,01 Ω |
| Accuracy ±(%m.v. + digits) | ±(2 % m.v. + 3 digits) |
| Measurement of resistance with low current | |
| Measurement range | 0 Ω - 1999 Ω |
| Display range | 0 - 1999 Ω |
| Resolution | from 0,1 Ω |
| Accuracy ±(%m.v. + digits) | ±(3 % m.v. + 3 digits) |
| Power measurement | |
| Measurement range | 0 - 200 kVA |
| 0 - 200 kW | |
| 0 - 200 kvar | |
| Display range | 0 - 200 kVA |
| Resolution | from 0.1 VA |
| from 0.1 W | |
| from 0.1 var | |
| Accuracy ±(%m.v. + digits) | from ±(7 % m.v. + 3 digits) |
| Environmental Conditions | |
| Ingress protection | IP54 |
| Operating temperature | 0 - 50 °C |
| Storage temperature | -20 - 70 °C |
| Humidity | 20 - 90 % |
| Nominal temperature | 23 ± 2 °C |
| Reference humidity | 40 - 60 % |
| Measuring category acc. to EN 61010 | IV 300 V, III 600 V |
| Type of insulation acc. to EN 61010-1 and IEC 61557 | double |
| Data Storage | |
| Memory | 990 cells, 57 500 records |
| Computer Interface | |
| Data transmission | USB 2.0, radio |
| Abmessungen und Gewicht | |
| Abmessungen (W x H x D) | 223 x 288 x 75 mm (8,8 x 11,3 x 3,0 in) |
| Gewicht | 2.2 kg (4,9 lbs) |
- WS-03 Adapter with START button with UNI-SCHUKO plug
- Factory calibration certificate
- L-2 Carrying case
- K-02 Crocodile clip, red, 1 kV, 20 A
- K-02 Crocodile clip, yellow, 1 kV, 20 A
- Battery container 4xLR14 (C-size)
- Hanging straps
- Test lead 15 m for earth resistance measurements (on a reel, banana plugs) blue
- Test lead 30 m for earth resistance measurements (on a reel, banana plugs) red
- Test lead 1.2 m CAT III/1000V CAT IV/600V (banana plugs) blue
- Test lead 1.2 m, 1 kV (banana plugs) red
- Test lead 1.2 m CAT III/1000V CAT IV/600V (banana plugs) yellow
- USB cable
- Pin probe, blue 1 kV (banana socket)
- Earth contact test probe (rod), 30 cm (2pcs)
- Pin probe CAT III/1000V CAT IV/600V (banana socket) red
- Pin probe CAT III/1000V CAT IV/600V (banana socket) yellow
- MPI-520 meter
Sonel Reports PLUS SonelReader
